NF M 87-202 EIPF
Application
These NF M 87-202 EIPF instrumentation cables are used for safety extra-low use in petroleum and petrochemical units particularly for the transmission of a.c. or d.c. analogue signals, They are well adapted to underground use in industrial applications, in moist areas, where chemical and mechanical protection are needed.
Standards References
- NF M 87-202
- UTE C 32-014
- NF C 32-020
- IEC 60332-1
- IEC 60332-3-24

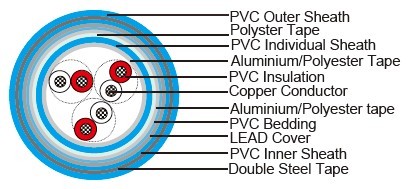

Cable Construction
- Conductor: Solid or Stranded copper conductor
- Insulation: PVC (70 mm maximum pair length)
- Individual Screen: Aluminium/polyester tape
- Individual Sheath: PVC
- Overall Binder Tape: Polyster tape
- Collective Screen: Aluminium/polyester tape
- Bedding: PVC
- LEAD Cover
- Inner Sheath: PVC
- Amouring: Double Steel Tape
- Outer Sheath: PVC (Flame retardant, sunlight, mineral oil and hydrocarton resistant)
- Outer Sheath Colour: Light-blue
Core identification
| Colours | Natural | Red | Blue | Yellow |
| 1 pair | X | X | ||
| 1 triple | X | X | X | |
| 1 quad | X | X | X | X |
Characteristics
- Voltage Rationg: 300/500V
- Operating Temperature: -40°C/+90°C
- Installation Temperature: MAX+50°C
- Maximum Voltage: 250V
- Voltage Test: 2000V
- Maximum conductor d.c. Resistance:
Conductor Size Ohm/km at +20°C 1/0.80mm(0.50 sqmm) 37.50 7/0.40mm(0.88 sqmm) 21.40 7/0.53mm(1.50 sqmm) 12.50 - Capacitance between cond. (nf/km):
0.5 sqmm ≤ 145
0.88 sqmm ≤ 160
1.50 sqmm ≤ 180 - Type:
1 Serie Number of pairs, triples or quads / 01 to 27 2 Serie Lay up in pair(IP) ,triple (IT) , quads (IQ) 3 Serie Core section 05 (0.5mm2) , 09 (0.88 mm2) or 15(1.5mm2) 4 Serie Overall screen(EG) or individual screen + overall screen(EI) 5 Serie Mechanical protection: without armour (SF), with armour (FA), with lead + armour(PF) - Natural cores printed with pair/triple number
Dimensions and Weight
| NF M 87-202 | Number x cross section |
Cond. mm2 |
Outer Diameter(mm) | Weight (kg/km) |
|
| Min. | Max. | ||||
| 03 IP 05 EIPF | 3X2X0.50 | 0.50 | 17.10 | 19.60 | 950 |
| 07 IP 05 EIPF | 7X2X0.50 | 0.50 | 21.80 | 25.00 | 1450 |
| 12 IP 05 EIPF | 12X2X0.50 | 0.50 | 26.60 | 30.50 | 2025 |
| 19 IP 05 EIPF | 19X2X0.50 | 0.50 | 31.60 | 36.30 | 2745 |
| 27 IP 05 EIPF | 27X2X0.50 | 0.50 | 36.50 | 41.90 | 3400 |
| 03 IP 09 EIPF | 3X2X0.88 | 0.88 | 19.50 | 22.30 | 1170 |
| 07 IP 09 EIPF | 7X2X0.88 | 0.88 | 25.40 | 29.10 | 1810 |
| 12 IP 09 EIPF | 12X2X0.88 | 0.88 | 31.60 | 36.30 | 2745 |
| 19 IP 09 EIPF | 19X2X0.88 | 0.88 | 37.80 | 43.40 | 3770 |
| 27 IP 09 EIPF | 27X2X0.88 | 0.88 | 43.90 | 50.40 | 4910 |
| 07 IT 05 EIPF | 7X3X0.50 | 0.50 | 24.30 | 26.80 | 1549 |
| 12 IT 05 EIPF | 12X3X0.50 | 0.50 | 29.30 | 32.30 | 2175 |
| 07 IT 09 EIPF | 7X3X0.88 | 0.88 | 28.60 | 31.60 | 2074 |
| 12 IT 09 EIPF | 12X3X0.88 | 0.88 | 34.70 | 38.30 | 1025 |
