Marine Cables to NEK606
Cat5E UTP/FTP Armoured Data Cable
Applications
Cat5E Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
Standards
- IEC 60332-3-22
- IEC 60754-1,2
- IEC 61034-1,2
- NEK 606:2004

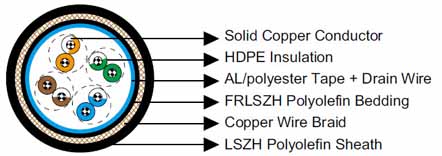

Construction
| Conductors |
24AWG solid bare copper. |
| Insulation |
HDPE. |
| Twinning |
Two coloured insulated conductors twisted together to form a pair. |
| Bedding |
Flame retardant, low smoke and halogen-free polyolefin, coloured black. |
| Armour |
0.2/0.3mm copper wire braid. |
| Outer Sheath |
Low smoke and halogen-free polyolefin. |
Optional
| Cat5E F/UTP |
These cables have collective shielding of aluminium/Polyester tape with drain wire. |
| Cat5E SF/UTP |
These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire. |
Electrical Characteristics
| AWG |
|
24 |
| Nominal Conductor Diameter |
mm |
0.53 |
| Maximum DC Resistant@20℃ |
Ω/100m |
9.38 |
| Maximum DCR Unbalance |
% |
5 |
| Maximum Mutual Capacitance |
pF/m |
55.8 |
| Maximum Capacitance Unbalance |
pF/100m |
330 |
| Characteristic Impedance@1-100MHz |
Ω |
100+/-15 |
| Maximum Propagation Delay Skew |
ns/100m |
45 |
| FREQ |
Maximum Attenuation |
Minimum NEXT |
Minimum PSNEXT |
Minimum ELFEXT |
Minimum PSELFEXT |
Minimum RL |
| MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB |
| 0.772 |
1.8 |
67.0 |
64.0 |
66.0 |
63.0 |
— |
| 1 |
2.0 |
65.3 |
62.3 |
63.8 |
60.8 |
20.0 |
| 4 |
4.1 |
56.3 |
53.3 |
51.7 |
48.7 |
23.0 |
| 8 |
5.8 |
51.8 |
48.8 |
45.7 |
42.7 |
24.5 |
| 10 |
6.5 |
50.3 |
47.3 |
43.8 |
40.8 |
25.0 |
| 16 |
8.2 |
47.3 |
44.3 |
39.7 |
36.7 |
25.0 |
| 20 |
9.3 |
45.8 |
42.8 |
37.7 |
34.7 |
25.0 |
| 25 |
10.4 |
44.3 |
41.3 |
35.8 |
32.8 |
24.3 |
| 31.25 |
11.7 |
42.9 |
39.9 |
33.9 |
30.9 |
23.6 |
| 62.5 |
17.0 |
38.4 |
35.4 |
27.8 |
24.8 |
21.5 |
| 100 |
22.0 |
35.3 |
32.3 |
23.8 |
20.8 |
20.1 |
Mechanical and Thermal Properties
| Bending Radius |
8×OD (during installation) |
| |
4×OD (fixed installed) |
| Temperature Range |
-30℃ ~ +75℃ |
Dimensions and Weight
| Construction No. of elements×No. of cores in element×Conductor diameter |
Nominal Insulation Thickness |
Nominal Sheath Thickness (mm) |
Nominal Overall Diameter |
Nominal Weight |
| mm |
mm |
Inner |
Outer |
mm |
kg/km |
| 4×2×0.53 |
0.2 |
0.8 |
1.14 |
10.1 |
179 |
