Cat6 UTP/FTP Armoured Data Cable
Applications
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
Standards
- IEC 60332-3-22
- IEC 60754-1,2
- IEC 61034-1,2
- NEK 606:2004

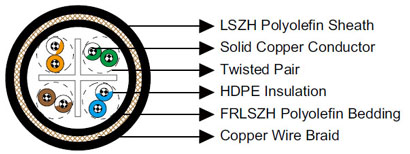

Construction
| Conductors |
23AWG solid bare copper. |
| Insulation |
HDPE. |
| Twinning |
Two coloured insulated conductors twisted together to form a pair. |
| Bedding |
Flame retardant, low smoke and halogen-free polyolefin, coloured black. |
| Armour |
0.2/0.3mm copper wire braid. |
| Outer Sheath |
Low smoke and halogen-free polyolefin. |

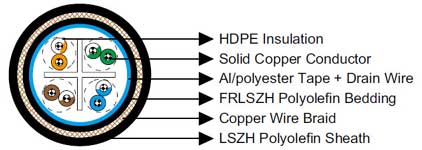

Optional
| Cat6 F/UTP |
These cables have collective shielding of aluminium/Polyester tape with drain wire. |
| Cat6 SF/UTP |
These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire. |
Electrical Characteristics
| AWG |
|
23 |
| Nominal Conductor Diameter |
mm |
0.58 |
| Maximum DC Resistant@20℃ |
Ω/100m |
7.5 |
| Maximum DCR Unbalance |
% |
3 |
| Maximum Mutual Capacitance |
pF/m |
5.6 |
| Maximum Capacitance Unbalance |
pF/100m |
330 |
| Characteristic Impedance@1-100MHz |
Ω |
100+/-15 |
| Maximum Propagation Delay Skew |
ns/100m |
18 |
| FREQ |
Maximum Attenuation |
Minimum NEXT |
Minimum PSNEXT |
Minimum ELFEXT |
Minimum PSELFEXT |
Minimum RL |
| MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB |
| 0.772 |
1.8 |
76.0 |
74.0 |
70.0 |
67.0 |
— |
| 1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
| 4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
| 8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
| 10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
| 16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
| 20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
| 25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
| 31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
| 62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
| 100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
| 155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
| 200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
| 250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
Mechanical and Thermal Properties
| Bending Radius |
8×OD (during installation) |
| |
4×OD (fixed installed) |
| Temperature Range |
-30℃ ~ +75℃ |
Dimensions and Weight
| Construction No. of elements×No. of cores in element×Conductor diameter |
Nominal Insulation Thickness |
Nominal Sheath Thickness (mm) |
Nominal Overall Diameter |
Nominal Weight |
| mm |
mm |
Inner |
Outer |
mm |
kg/km |
| 4×2×0.58 |
0.23 |
0.8 |
1.14 |
101.6 |
214 |
