Marine Cables to NEK606

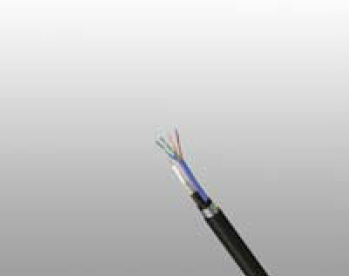

Mud Resistant Composite Cable
Applications
These composite cables consist of cat6 data cable & coaxial cable & power cable, with copper wire braid armoured & flame retardant oil&mud resistant outer sheath.
Standards
- IEC 60092-350
- IEC 60332-3-22
- IEC 60754-1,2
- IEC 61034-1,2
- NEK 606:2004

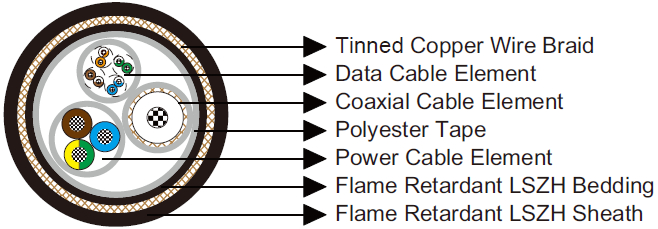

Construction
1) 4×2×0.57mm U/UTP Cat6 Data Cable
| Conductors |
Solid bare copper wire. |
| Insulation |
PE. |
| Twinning |
Two coloured insulated wire twisted to form a pair. |
| Sheath |
Flame retardant LSZH, coloured grey. |
2) RG59 Coaxial Cable
| Conductors |
0.58mm solid bare copper wire. |
| Insulation |
PE. |
| Shielding |
Bare copper wire braid. |
| Sheath |
Flame retardant LSZH, coloured grey. |
3) 3×1.0mm² Power Cable
| Conductors |
7/0.44mm stranded bare copper wire. |
| Insulation |
XLPE. Coloured Blue, Brown, Green/Yellow. |
| Sheath |
Flame retardant LSZH, coloured grey. |
4) Element Assembly
| Filler |
PP, PVC, PE or LSZH Material. |
| Wrapping |
Polyester Tape. |
| Bedding |
Flame retardant LSZH. |
| Armour |
Tinned copper wire braid. |
| Outer Sheath |
Oil & mud resistant, flame retardant LSZH, coloured grey. |
Dimensions and Weight
| Cable Construction |
Nominal Data Cable Diameter (mm) |
Nominal Coaxial Cable Diameter (mm) |
Nominal Power Cable Diameter (mm) |
Nominal Overall Diameter (mm) |
| 4×2×0.57mm + RG59 + 3×1.0mm² |
6.0 |
6.2 |
6.8 |
21.0 |
Note: Other construction can be offered opon request.
