Marine Cables to NEK606
P15 UX 0.6/1kV
Applications
These cables are flame retardant, low smoke and halogen free, used for earthing and bonding services.
Standards
- IEC 60092-353
- IEC 60092-359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1,2
- IEC 61034-1,2
- NEK 606:2004

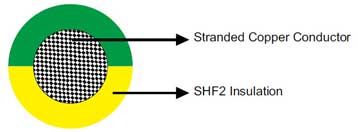

Construction
| Conductors |
Tinned annealed stranded copper to IEC 60228 class 2 or class 5. |
| Insulation |
Halogen free thermosetting compound, SHF2. |
| |
When used as protective earth (PE) wire, the cables coloured yellow/green. |
| |
When used as single wire, the cables coloured off-white, black, red or blue. |
Electrical Characteristics
| Nominal Cross Section Area |
mm² |
10 |
16 |
25 |
35 |
50 |
70 |
| Nominal Conductor Diameter |
mm |
4 |
5.1 |
6.5 |
7.4 |
8.7 |
10.3 |
| Maximum DC Resistant@20℃ |
Ω/km |
1.84 |
1.16 |
0.734 |
0.529 |
0.391 |
0.27 |
| Continuous Current Rating@45℃1 Core |
A |
72 |
96 |
127 |
157 |
196 |
242 |
| Short Circuit Current 1s |
A |
1430 |
2290 |
3580 |
5010 |
7150 |
10020 |
| Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
| Nominal Cross Section Area |
mm² |
95 |
120 |
150 |
185 |
240 |
300 |
| Nominal Conductor Diameter |
mm |
12.2 |
13.8 |
15.1 |
17.0 |
19.6 |
21.9 |
| Maximum DC Resistant@20℃ |
Ω/km |
0.195 |
0.154 |
0.126 |
0.1 |
0.0762 |
0.0607 |
| Continuous Current Rating@45℃1 Core |
A |
293 |
339 |
389 |
444 |
522 |
601 |
| Short Circuit Current 1s |
A |
13590 |
17170 |
21460 |
26470 |
34340 |
42930 |
| Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
Mechanical and Thermal Properties
| Bending Radius |
8×OD (during installation) |
| |
6×OD (fixed installed) |
| Temperature Range |
-20℃ ~ +90℃ |
Dimensions and Weight
| Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness (mm) |
Nominal Overall Diameter (mm) |
Nominal Weight (kg/km) |
| 1×10 |
2.0 |
8.2 |
160 |
| 1×16 |
2.1 |
9.4 |
230 |
| 1×25 |
2.4 |
11.3 |
350 |
| 1×35 |
2.4 |
12.4 |
450 |
| 1×50 |
2.7 |
14.4 |
600 |
| 1×70 |
3.0 |
16.7 |
840 |
| 1×95 |
3.0 |
18.6 |
1110 |
| 1×120 |
3.1 |
20.3 |
1360 |
| 1×150 |
3.4 |
22.4 |
1660 |
| 1×185 |
3.7 |
24.9 |
2080 |
| 1×240 |
4.0 |
28.1 |
2690 |
| 1×300 |
4.3 |
31.0 |
3330 |
