Marine Cables to NEK606
RG11 Armoured Coaxial Cable
Applications
These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.
Standards
- IEC 60092-350
- IEC 60332-3-22
- IEC 60754-1,2
- IEC 61034-1,2
- NEK 606:2004

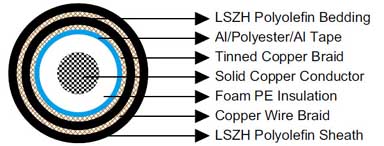

Construction
| Conductors |
14AWG solid bare copper. |
| Insulation |
Foam PE. |
| Shielding1 |
Al/Polyester/Al tape. |
| Shielding2 |
Tinned copper braid. |
| Bedding |
Low smoke and halogen-free polyolefin, coloured black. |
| Armour |
Copper wire braid. |
| Outer Sheath |
Low smoke and halogen-free polyolefin. |
Electrical Characteristics
| AWG |
|
14 |
| Nominal Conductor Diameter |
mm |
1.6 |
| Impedance |
Ω |
75+/-5 |
| Nominal Attenuation@100MHz |
dB/100m |
4.5 |
| Nominal Attenuation@270MHz |
dB/100m |
7.6 |
| Nominal Attenuation@540MHz |
dB/100m |
10.8 |
| Nominal Attenuation@750MHz |
dB/100m |
12.8 |
| Nominal Attenuation@1000MHz |
dB/100m |
14.8 |
| Capacitance |
pF/m |
53.5 |
| Velocity of Propagation |
% |
83 |
| Conductor DCR |
Ω/km |
8.5 |
| Shield DCR |
Ω/km |
12.1 |
| Inductance |
μH/m |
0.32 |
| Time Delay |
ns/m |
4 |
Mechanical and Thermal Properties
| Bending Radius |
15×OD |
| Temperature Range |
-30℃ ~ +75℃ |
Dimensions and Weight
| Nominal Inner Conductor Diameter (mm) |
Nominal Insulation Thickness (mm) |
Nominal Sheath Thickness (mm) |
Nominal Overall Diameter (mm) |
Nominal Weight (kg/km) |
| 1.6 |
2.7 |
1.7 |
15.0 |
353 |
