Marine Cables to NEK606
S10 IYOI(c) 60 V
Applications
These cables are flame retardant, low smoke and halogen free, used for indoor telecommunication.
Standards
- IEC 60092-359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1,2
- IEC 61034-1,2
- NEK 606:2004

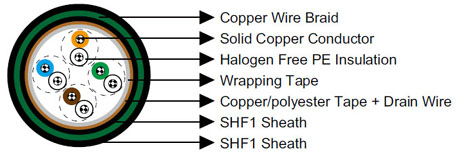

Construction
| Conductors |
Solid tinned copper, 0.5mm. |
| Insulation |
Halogen-free thermoplastic compound PE. |
| Twinning |
Colour coded cores twisted together. Pairs are cross-stranded to finished cable or 10 pair units. The units are stranded to 20 - 30 - 50 pair cables. 2 pair is stranded as a star quad. |
| Wrapping |
Polyester tape. |
| Collective Shielding |
The cable core is screened by copper backed polyester tape in contact with a 0.5mm solid tinned drain wire. |
| Bedding |
Halogen-free thermoplastic compound, type SHF1, coloured grey. |
| Armour |
Copper wire braid. |
| Outer Sheath |
Halogen-free thermoplastic compound, type SHF1, coloured grey. |
Electrical Characteristics
| Nominal Conductor Diameter |
mm |
0.5 |
| Maximum Resistant@20℃ |
Ω/km |
95 |
| Nominal Inductance@1KHz |
MH/km |
0.61 |
| Mutual Capacitance 1-pair cable |
nF/km |
90 |
| Mutual Capacitance 2-pair cable |
nF/km |
80 |
| Mutual Capacitance 4-pair and above cable |
nF/km |
70 |
| Operating Voltage |
V |
60 |
Mechanical and Thermal Properties
| Bending Radius |
8×OD (during installation) |
| |
6×OD (fixed installed) |
| Temperature Range |
-10℃ ~ +60℃ |
Dimensions and Weight
| Construction No. of elements×No. of cores in element×Cross section (mm²) |
Nominal Insulation Thickness (mm) |
Nominal Sheath Thickness (mm) |
Nominal Overall Diameter (mm) |
Nominal Weight (kg/km) |
| Inner |
Outer |
| 1×2×0.5 |
0.2 |
1.2 |
1.2 |
8.0 |
95 |
| 2×2×0.5 |
0.2 |
1.2 |
1.2 |
9.0 |
110 |
| 4×2×0.5 |
0.2 |
1.2 |
1.2 |
10.0 |
145 |
| 10×2×0.5 |
0.2 |
1.5 |
1.5 |
12.0 |
200 |
| 20×2×0.5 |
0.2 |
1.5 |
1.5 |
15.0 |
330 |
| 30×2×0.5 |
0.2 |
1.5 |
1.5 |
17.0 |
430 |
| 50×2×0.5 |
0.2 |
1.5 |
1.5 |
20.0 |
580 |
