Mining Cable
(N)SHOEU 0.6/1kV Flexible cable
Applications
These cables are designed for use in open cast miningfactories for laying of excavators and conveyor beltswith permanent movements between parts of theequipment.These cables are used where the ascending pipe servesas earth conductor, for instance for submersible pumps.
Standards
VDE 0250 Part 812

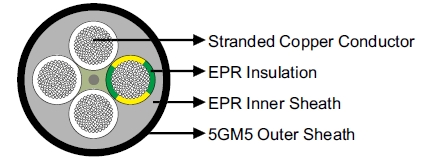

Construction
Conductors: Flexible stranded copper conductor, class 5 according to DIN VDE 0295/IEC 60228.
Insulation: EPR.
Earth Conductor (for –J type):Incorporatedas a fourth core or split into three in theouter interstices.
InnerSheath: EPR.
Outer Sheath: CM type 5GM5.
Dimensions and Weight
(N)SHOEU-J
Number of Cores×Nominal Cross Section |
Insulation Thickness |
Thickness of Inner Sheath |
Thickness of Outer Sheath |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
mm |
mm |
mm |
kg/km |
3×1.0 |
0.60 |
0.8 |
1.2 |
9.2 |
9.6 |
160 |
3×1.5 |
0.60 |
0.8 |
1.2 |
10.4 |
12.0 |
180 |
3×2.5 |
0.70 |
0.8 |
1.2 |
11.3 |
12.9 |
240 |
3×4 |
0.80 |
0.9 |
1.3 |
12.5 |
14.1 |
295 |
3×6 |
0.80 |
1.0 |
1.4 |
13.9 |
15.5 |
370 |
3×10 |
1.00 |
1.0 |
1.4 |
16.8 |
18.8 |
570 |
3x50+3x25/3 |
1.10 |
1.4 |
2.5 |
31.5 |
34.5 |
2500 |
3x70+3x35/3 |
1.10 |
1.4 |
2.5 |
36.2 |
39.2 |
3400 |
3x95+3x50/3 |
1.20 |
1.7 |
2.8 |
42.0 |
45.0 |
4475 |
3x120+3x70/3 |
1.20 |
2.0 |
3.0 |
46.0 |
49.0 |
5400 |
4×1.5 |
0.60 |
0.8 |
1.2 |
10.7 |
13.0 |
210 |
4×2.5 |
0.70 |
0.9 |
1.4 |
11.7 |
13.7 |
260 |
4×4 |
0.80 |
0.9 |
1.4 |
13.7 |
15.7 |
350 |
4×6 |
0.80 |
1.0 |
1.4 |
15.2 |
17.2 |
485 |
4×10 |
1.00 |
1.0 |
1.6 |
19.0 |
21.0 |
690 |
4×16 |
1.00 |
1.2 |
1.8 |
22.0 |
24.0 |
1090 |
4×25 |
1.00 |
1.3 |
2.2 |
26.5 |
29.5 |
1600 |
4×35 |
1.00 |
1.3 |
2.3 |
30.0 |
33.0 |
2090 |
4×50 |
1.10 |
1.5 |
2.6 |
34.5 |
38.5 |
2700 |
4×70 |
1.10 |
1.5 |
2.6 |
39.5 |
43.5 |
3620 |
4×95 |
1.20 |
1.7 |
2.8 |
45.0 |
49.0 |
4710 |
4×120 |
1.20 |
2.0 |
3.3 |
51.0 |
55.0 |
6020 |
(N)SHOEU-O
Number of Cores×Nominal Cross Section |
Insulation Thickness |
Thickness of Inner Sheath |
Thickness of Outer Sheath |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
mm |
mm |
mm |
kg/km |
5×1.5 |
0.60 |
0.8 |
1.2 |
12.0 |
14.0 |
240 |
5×2.5 |
0.70 |
0.9 |
1.3 |
13.0 |
14.8 |
305 |
5×4 |
0.80 |
0.9 |
1.4 |
14.8 |
17.0 |
440 |
5×6 |
0.80 |
1.0 |
1.6 |
17.0 |
19.0 |
580 |
5×10 |
1.00 |
1.0 |
1.6 |
20.0 |
23.0 |
870 |
5×16 |
1.00 |
1.2 |
1.8 |
23.8 |
26.8 |
1280 |
5×25 |
1.00 |
1.3 |
2.3 |
29.5 |
32.5 |
1950 |
2×1.5 |
0.60 |
0.8 |
1.2 |
9.8 |
11.8 |
155 |
7×1.5 |
0.60 |
0.9 |
1.4 |
13.0 |
14.6 |
295 |
8×1.5 |
0.60 |
0.9 |
1.4 |
14.0 |
15.6 |
320 |
10×1.5 |
0.60 |
1.0 |
1.6 |
15.5 |
17.5 |
390 |
12×1.5 |
0.60 |
1.0 |
1.6 |
16.5 |
18.5 |
445 |
2×2.5 |
0.70 |
0.8 |
1.2 |
10.8 |
12.8 |
195 |
4×2.5 |
0.70 |
0.9 |
1.4 |
11.7 |
13.7 |
290 |
7×2.5 |
0.70 |
0.9 |
1.4 |
15.0 |
17.0 |
410 |
8×2.5 |
0.70 |
0.9 |
1.4 |
16.0 |
19.0 |
430 |
10×2.5 |
0.70 |
1.0 |
1.6 |
18.0 |
20.5 |
520 |
12×2.5 |
0.70 |
1.0 |
1.6 |
18.5 |
21.5 |
580 |
18×2.5 |
0.70 |
1.0 |
1.6 |
21.5 |
24.5 |
835 |
24×2.5 |
0.70 |
1.2 |
1.8 |
25.5 |
28.5 |
895 |
2×4 |
0.80 |
0.9 |
1.2 |
12.0 |
13.6 |
250 |
12×4 |
0.80 |
1.2 |
1.8 |
25.0 |
28.0 |
990 |
1×16 |
1.00 |
- |
1.4 |
9.6 |
11.2 |
215 |
1×25 |
1.00 |
- |
1.7 |
11.2 |
13.2 |
325 |
1×35 |
1.00 |
- |
1.8 |
12.6 |
14.6 |
430 |
1×50 |
1.10 |
- |
2.0 |
14.6 |
16.6 |
610 |
1×70 |
1.10 |
- |
2.2 |
16.6 |
18.6 |
825 |
1×95 |
1.20 |
- |
2.3 |
18.9 |
20.9 |
1070 |
1×120 |
1.20 |
- |
2.4 |
20.8 |
22.8 |
1300 |
1×150 |
1.30 |
- |
2.5 |
23.0 |
25.0 |
1610 |
1×185 |
1.40 |
- |
2.6 |
24.9 |
27.9 |
2000 |
1×240 |
1.50 |
- |
2.8 |
28.2 |
31.2 |
2500 |
1×300 |
1.80 |
- |
3.3 |
31.8 |
34.8 |
3200 |
3×2.5 |
0.70 |
0.8 |
1.2 |
11.3 |
12.9 |
240 |
3×4 |
0.80 |
0.9 |
1.3 |
12.5 |
14.1 |
295 |
3×6 |
0.80 |
1.0 |
1.4 |
13.9 |
15.5 |
370 |
3×10 |
1.00 |
1.0 |
1.4 |
16.8 |
18.8 |
570 |
3×16 |
1.00 |
1.0 |
1.6 |
19.0 |
22.0 |
770 |
3×25 |
1.00 |
1.2 |
2.0 |
23.5 |
26.5 |
1200 |
3×35 |
1.10 |
1.3 |
2.2 |
27.5 |
30.5 |
1570 |
3×50 |
1.10 |
1.5 |
2.6 |
31.5 |
35.5 |
2200 |
3×70 |
1.10 |
1.5 |
2.6 |
36.0 |
40.0 |
2910 |
3×95 |
1.20 |
1.7 |
2.8 |
41.0 |
45.0 |
3780 |
3×120 |
1.20 |
1.8 |
3.0 |
45.0 |
49.0 |
4700 |
3×150 |
1.30 |
1.7 |
2.8 |
49.0 |
53.0 |
5650 |
3×185 |
1.40 |
2.2 |
3.4 |
55.0 |
59.0 |
7050 |
