Mining Cable
(N)TSCGEWOEU Medium-Voltage Reeling Cable With Fiber Optics
Applications
These cables are used for connection of large mobile equipment such asexcavators and spreaders, gantrycranes, etc., under very highmechanical loads,suitablefor motorised reeling on monospiralor level-wind reelers.
Standards
Based on VDE 0250 Part 813

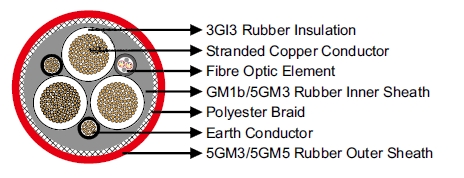

Construction
Conductors: Flexible strandedcopper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer: Semiconductive layer.
Insulation: EPR type 3GI3.
Outer Conductor Layer:Semiconductive layer.
Earth Conductor: Split into two in the outer interstices.
InnerSheath: Rubber type GM1b/5GM3.
Fiber Optics: 12 FO 50/125 or 62.5/125 orE9/125μm within protection sheath.
Reinforcement:Polyester anti-torsion braid.
Outer Sheath: Rubber type 5GM3/5GM5, flame retardant and oil resistant.
Dimensions and Weight
3.6/6 kV
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
3×25+2×25/2+12×LWL |
39.0 |
42.0 |
2410 |
3×35+2×25/2+12×LWL |
42.0 |
45.0 |
2995 |
3×50+2×25/2+12×LWL |
45.0 |
48.0 |
3645 |
3×70+2×35/2+12×LWL |
50.0 |
54.0 |
4760 |
3×95+2×50/2+12×LWL |
54.0 |
58.0 |
5580 |
3×120+2×70/2+12×LWL |
58.0 |
62.0 |
6690 |
3×150+2×70/2+12×LWL |
63.0 |
67.0 |
7990 |
3×185+2×95/2+12×LWL |
67.0 |
72.0 |
9330 |
6/10 kV
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
3×25+2×25/2+12×LWL |
40.0 |
43.0 |
2450 |
3×35+2×25/2+12×LWL |
43.0 |
46.0 |
3035 |
3×50+2×25/2+12×LWL |
46.0 |
49.0 |
3690 |
3×70+2×35/2+12×LWL |
51.0 |
55.0 |
4800 |
3×95+2×50/2+12×LWL |
55.0 |
59.0 |
5620 |
3×120+2×70/2+12×LWL |
59.0 |
63.0 |
6740 |
3×150+2×70/2+12×LWL |
64.0 |
68.0 |
8040 |
3×185+2×95/2+12×LWL |
68.0 |
72.0 |
9380 |
12/20 kV
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
3×25+2×25/2+12×LWL |
46.0 |
49.0 |
3050 |
3×35+2×25/2+12×LWL |
49.0 |
52.0 |
3490 |
3×50+2×25/2+12×LWL |
53.0 |
57.0 |
4340 |
3×70+2×35/2+12×LWL |
57.0 |
61.0 |
5320 |
3×95+2×50/2+12×LWL |
61.0 |
65.0 |
6360 |
3×120+2×70/2+12×LWL |
67.0 |
71.0 |
7810 |
3×150+2×70/2+12×LWL |
70.0 |
74.0 |
8900 |
3×185+2×95/2+12×LWL |
76.0 |
80.0 |
10700 |
18/30 kV
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
3×25+2×25/2+12×LWL |
55.0 |
59.0 |
3960 |
3×35+2×25/2+12×LWL |
58.0 |
62.0 |
4550 |
3×50+2×25/2+12×LWL |
63.0 |
67.0 |
5510 |
3×70+2×35/2+12×LWL |
66.0 |
70.0 |
6560 |
3×95+2×50/2+12×LWL |
71.0 |
75.0 |
7850 |
3×120+2×70/2+12×LWL |
76.0 |
80.0 |
10690 |
3×185+2×95/2+12×LWL |
86.0 |
90.0 |
12550 |
