Mining Cable
2YSLGCGOEU Signal & Control Cable
Applications
These control, signalling and bus cables are used for electric and electronic equipment,such as for measured value and process data processing andautomation units in open-cast mining applications,suitable forlaying alongside conveyor belts and on material handling equipment.
Standards
VDE 0250 Part 812

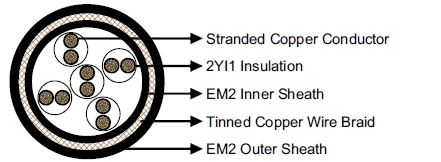

Construction
Conductors: Flexible strandedcopper conductor, class 5 according to DIN VDE 0295.
Insulation: PE type 2YI1.
Cable Element: Cores are laid-up in pairs in layers with a continuous serving of non-hygroscopicmaterial over the conductor assembly
InnerSheath: CM type EM2.
Screen: Tinned copper wire braid.
Outer Sheath: CM type EM2.
Dimensions and Weight
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
2×2×1 |
11.0 |
13.0 |
245 |
5×2×1 |
16.0 |
19.0 |
440 |
10×2×1 |
20.0 |
23.0 |
700 |
20×2×1 |
25.0 |
29.0 |
1040 |
