H07RN8-F 450/750V Harmonized Rubber Cables
Applications
These cables are designed for use in submersible pumpsand similar applications in water for industrial use up toa water depth of 10 m and water temperature-rangesup to 40℃, also approved for dry, humid and wetapplications.
Standards
DIN VDE 0282 Part1 and Part 16
HD 22.1
HD 22.16 S1

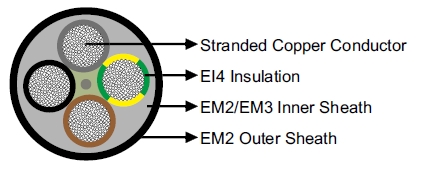

Construction
Conductors: Strandedcopper conductor, class 5 according to DIN VDE 0295/IEC 60228.
Insulation: Rubbertype EI4according to DIN VDE 0282 Part 16.
InnerSheath(for ≥ 10 mm² ormore than 5 cores): Rubbertype EM2/EM3according to DIN VDE 0282 Part 16.
Outer Sheath: Rubber type EM2according to DIN VDE 0282 Part 16.
Dimensions and Weight
Number of Cores×Nominal Cross Section |
Insulation Thickness |
Thickness of Inner Sheath |
Thickness of Outer Sheath |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
mm |
mm |
mm |
kg/km |
1×1.5 |
0.8 |
- |
1.4 |
5.7 |
6.7 |
60 |
2×1.5 |
0.8 |
- |
1.5 |
8.5 |
10.5 |
120 |
3G1.5 |
0.8 |
- |
1.6 |
9.2 |
11.2 |
170 |
4G1.5 |
0.8 |
- |
1.7 |
10.2 |
12.5 |
210 |
5G1.5 |
0.8 |
- |
1.8 |
11.2 |
13.5 |
260 |
7G1.5 |
0.8 |
1.0 |
1.6 |
14.0 |
17.0 |
360 |
12G1.5 |
0.8 |
1.2 |
1.7 |
17.6 |
20.5 |
515 |
19G1.5 |
0.8 |
1.4 |
2.1 |
20.7 |
26.3 |
795 |
24G1.5 |
0.8 |
1.4 |
2.1 |
24.3 |
28.5 |
920 |
1×2.5 |
0.9 |
- |
1.4 |
6.3 |
7.5 |
75 |
2×2.5 |
0.9 |
- |
1.7 |
10.2 |
12.5 |
170 |
3G2.5 |
0.9 |
- |
1.8 |
10.9 |
13.0 |
230 |
4G2.5 |
0.9 |
- |
1.9 |
12.1 |
14.5 |
290 |
5G2.5 |
0.9 |
- |
2.0 |
13.3 |
16.0 |
360 |
7G2.5 |
0.9 |
1.1 |
1.7 |
17.0 |
20.0 |
510 |
12G2.5 |
0.9 |
1.2 |
1.9 |
20.6 |
23.5 |
740 |
19G2.5 |
0.9 |
1.5 |
2.2 |
24.4 |
30.9 |
1190 |
24G2.5 |
0.9 |
1.6 |
2.3 |
28.8 |
33.0 |
1525 |
1×4 |
1.0 |
- |
1.5 |
7.2 |
8.5 |
100 |
2×4 |
1.0 |
- |
1.8 |
11.8 |
14.5 |
195 |
3G4 |
1.0 |
- |
1.9 |
12.7 |
15.0 |
305 |
4G4 |
1.0 |
- |
2.0 |
14.0 |
17.0 |
400 |
5G4 |
1.0 |
- |
2.2 |
15.6 |
19.0 |
505 |
1×6 |
1.0 |
- |
1.6 |
7.9 |
9.5 |
130 |
2×6 |
1.0 |
- |
2.0 |
13.1 |
16.0 |
285 |
3G6 |
1.0 |
- |
2.1 |
14.1 |
17.0 |
380 |
4G6 |
1.0 |
- |
2.3 |
15.7 |
19.0 |
550 |
5G6 |
1.0 |
- |
2.5 |
17.5 |
21.0 |
660 |
1×10 |
1.2 |
- |
1.8 |
9.5 |
11.5 |
195 |
2×10 |
1.2 |
1.2 |
1.9 |
17.7 |
21.5 |
565 |
3G10 |
1.2 |
1.3 |
2.0 |
19.1 |
22.5 |
715 |
4G10 |
1.2 |
1.4 |
2.0 |
20.9 |
24.5 |
875 |
5G10 |
1.2 |
1.4 |
2.2 |
22.9 |
27.0 |
1095 |
1×16 |
1.2 |
- |
1.9 |
10.8 |
13.0 |
280 |
2×16 |
1.2 |
1.3 |
2.0 |
20.2 |
23.5 |
795 |
3G16 |
1.2 |
1.4 |
2.1 |
21.8 |
25.5 |
1040 |
4G16 |
1.2 |
1.4 |
2.2 |
23.8 |
28.0 |
1280 |
5G16 |
1.2 |
1.5 |
2.4 |
26.4 |
31.0 |
1610 |
1×25 |
1.4 |
- |
2.0 |
12.7 |
15.0 |
405 |
4G25 |
1.4 |
1.6 |
2.2 |
28.9 |
33.0 |
1890 |
5G25 |
1.4 |
1.7 |
2.7 |
32.0 |
36.0 |
2335 |
1×35 |
1.4 |
- |
2.2 |
14.3 |
17.0 |
545 |
4G35 |
1.4 |
1.7 |
2.7 |
32.5 |
36.5 |
2505 |
5G35 |
1.4 |
1.8 |
2.8 |
35.0 |
39.5 |
2718 |
1×50 |
1.6 |
- |
2.4 |
16.5 |
19.5 |
730 |
4G50 |
1.6 |
1.9 |
2.9 |
37.7 |
42.0 |
3350 |
5G50 |
1.6 |
2.1 |
3.1 |
41.0 |
46.0 |
3804 |
1×70 |
1.6 |
- |
2.6 |
18.6 |
22.0 |
955 |
4G70 |
1.6 |
2.0 |
3.2 |
42.7 |
47.0 |
4785 |
1×95 |
1.8 |
- |
2.8 |
20.8 |
24.0 |
1135 |
4G95 |
1.8 |
2.3 |
3.6 |
48.4 |
54.0 |
6090 |
1×120 |
1.8 |
- |
3.0 |
22.8 |
26.5 |
1560 |
4G120 |
1.8 |
2.4 |
3.6 |
53.0 |
59.0 |
7550 |
5G120 |
1.8 |
2.8 |
4.0 |
59.0 |
65.0 |
8290 |
1×150 |
2.0 |
- |
3.2 |
25.2 |
29.0 |
1925 |
4G150 |
2.0 |
2.6 |
3.9 |
58.0 |
64.0 |
8495 |
1×185 |
2.2 |
- |
3.4 |
27.6 |
31.5 |
2230 |
4G185 |
2.2 |
2.8 |
4.2 |
64.0 |
71.0 |
9850 |
1×240 |
2.4 |
- |
3.5 |
30.6 |
35.0 |
2945 |
1×300 |
2.6 |
- |
3.6 |
33.5 |
38.0 |
3495 |
1×630 |
3.0 |
- |
4.1 |
45.5 |
51.0 |
7020 |
