NSGAFOEU/NSHXAFOE Medium-Voltage Single Core Cables
Applications
These cables are designed for fixed installation in track-bound vehicles and buses,in pipes and closed installation ducts, as well as for theconnection of mobile parts. 3 kV-rated cables can beused in low-voltage switch boards to ensure inherentlyshort-circuit and earth-fault proof connections.
Standards
DIN VDE 0250 Part 602 (for NSGAFOEU/NSGAFCMOEU)
DIN VDE 0250 Part 606 (for halogen free versionNSHXAFOE/NSHXAFCMOE)

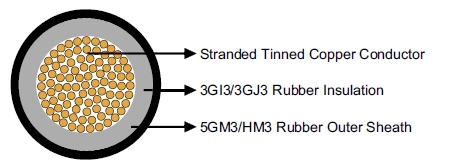

Construction
Conductors: Stranded tinned copper conductor, class 5 according to DIN VDE 0295/IEC 60228.
Inner Conductor Layer (for 6kV): Semi-conducting layer.
Insulation: EPR compound type 3GI3/3GJ3.
Optional Screen (for NSGAFCMOEU/NSHXAFCMOE): Tinned copper wires.
Outer Sheath: Chlorinated rubber type 5GM3, oil resistant and flame retardant (for NSGAFOEU/ NSGAFCMOEU). Halogen-free polymer compound HM3, oil-resistant, flame retardant, low smoke (for NSHXAFOE//NSHXAFOE).
Dimensions and Weight
NSGAFOEU/NSHXAFOE 1.8/3kV
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No. ×mm² |
mm |
mm |
kg/km |
1×1.5 |
5.7 |
7.0 |
50 |
1×2.5 |
6.0 |
7.5 |
60 |
1×4 |
6.8 |
9.0 |
80 |
1×6 |
7.3 |
9.5 |
100 |
1×10 |
8.7 |
11.0 |
160 |
1×16 |
10.0 |
13.0 |
230 |
1×25 |
12.4 |
15.0 |
340 |
1×35 |
13.4 |
16.5 |
430 |
1×50 |
14.9 |
18.0 |
580 |
1×70 |
16.6 |
20.5 |
780 |
1×95 |
19.3 |
24.0 |
1030 |
1×120 |
20.8 |
26.0 |
1270 |
1×150 |
23.0 |
28.0 |
1570 |
1×185 |
25.2 |
31.0 |
1900 |
1×240 |
28.1 |
34.5 |
2500 |
1×300 |
30.8 |
38.0 |
3000 |
1×400 |
40.0 |
34.6 |
4000 |
NSGAFOEU/NSHXAFOE 3.6/6kV
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No. ×mm² |
mm |
mm |
kg/km |
1×1.5 |
8.3 |
9.5 |
135 |
1×2.5 |
8.6 |
10.5 |
150 |
1×4 |
9.4 |
12.0 |
170 |
1×6 |
9.9 |
13.0 |
200 |
1×10 |
10.9 |
14.5 |
250 |
1×16 |
12.6 |
15.5 |
350 |
1×25 |
14.5 |
17.5 |
480 |
1×35 |
15.6 |
19.0 |
600 |
1×50 |
17.1 |
21.0 |
760 |
1×70 |
18.8 |
23.0 |
960 |
1×95 |
21.3 |
26.5 |
1240 |
1×120 |
23.2 |
28.5 |
1530 |
1×150 |
25.0 |
30.5 |
1790 |
1×185 |
26.8 |
33.0 |
2130 |
NSGAFCMOEU/NSHXAFCMOE 3.6/6kV
Number of Cores×Nominal Cross Section |
Nominal Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
kg/km |
1×185 |
38.5 |
3060 |
