Mining Cable
NSHTOEU 0.6/1kV LHD Cables
Applications
These cables are used for frequently changing dynamic loads, such as reeling cables for scoops (LHDs) in underground mines, suitable for mono-spiral reels and cylindrical reels.
Standards
VDE 0250 Part 814

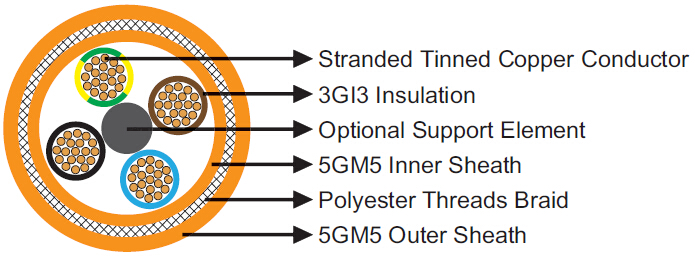

Construction
Conductors: Flexible stranded tinned copper conductor.
Insulation: EPR type 3GI3.
Optional Support Element: Central support element.
Inner Sheath: PCP type 5GM5.
Anti-torsion Braid:Reinforced braid of polyester threads in a vulcanized bond between inner and outer sheath.
Outer Sheath: PCP type 5GM5.
Dimensions and Weight
Number of Cores×Nominal Cross Section |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
4x16(6 kN) |
27.5 |
31.5 |
1500 |
4x35(12 kN) |
37.5 |
42.0 |
2920 |
4x50(12 kN) |
43.0 |
48.0 |
3970 |
4x50(30 kN) |
42.0 |
44.0 |
3660 |
4x70 (20kN) |
47.0 |
52.0 |
5530 |
4x95 (50kN) |
53.0 |
58.0 |
6500 |
