Mining Cable
NSSHOEU-O/J 0.6/1kV Heavy Duty Flexible Cable
Applications
These cables are designed for the connection of mobile equipment and machines under very high mechanical loads in dry and damp areas, outdoors and in explosion hazard areas, particularly in mining and industry, quarries and building sites.
Standards
VDE 0250 Part 812

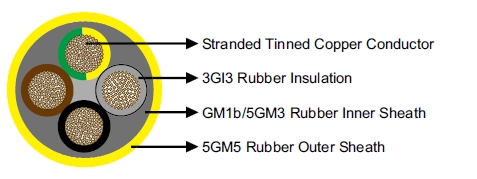

Construction
Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation: Heat resistant EPR type 3GI3.
InnerSheath (): SR/SBR/PCP/CRtype GM1b/5GM3.
Outer Sheath: Chlorinated rubber PCP/CR type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.
Dimensions and Weight
NSSHOEU-O
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No. ×mm² |
mm |
mm |
kg/km |
1×16 |
11.0 |
13.5 |
260 |
1×25 |
13.0 |
16.0 |
390 |
1×35 |
14.0 |
17.0 |
500 |
1×50 |
16.0 |
19.0 |
680 |
1×70 |
18.0 |
21.0 |
900 |
1×95 |
20.0 |
24.0 |
1150 |
1×120 |
23.0 |
27.0 |
1440 |
1×150 |
24.0 |
28.0 |
1750 |
1×185 |
28.0 |
31.0 |
2300 |
1×240 |
32.0 |
36.0 |
3000 |
2×1.5 |
11.0 |
14.0 |
210 |
3×2.5 |
13.0 |
16.0 |
300 |
NSSHOEU-J
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No. ×mm² |
mm |
mm |
kg/km |
3×1.5 |
12.0 |
15.0 |
240 |
3×70/35 |
46.0 |
51.0 |
4450 |
3×95/50 |
54.0 |
59.0 |
5870 |
3×120/70 |
59.0 |
64.0 |
7340 |
4×1.5 |
13.0 |
16.0 |
280 |
4×2.5 |
15.0 |
18.0 |
400 |
4×4 |
17.0 |
20.0 |
510 |
4×6 |
18.0 |
21.0 |
630 |
4×10 |
22.0 |
26.0 |
950 |
4×16 |
28.0 |
32.0 |
1430 |
4×25 |
33.0 |
37.0 |
2100 |
4×35 |
36.0 |
40.0 |
2650 |
4×50 |
42.0 |
47.0 |
3660 |
5×1.5 |
13.0 |
16.0 |
320 |
5×2.5 |
16.0 |
19.0 |
470 |
5×4 |
18.0 |
21.0 |
600 |
5×6 |
20.0 |
24.0 |
780 |
5×10 |
24.0 |
28.0 |
1130 |
5×16 |
29.0 |
34.0 |
1720 |
5×25 |
35.0 |
39.0 |
2470 |
6×2.5 |
13.0 |
16.0 |
300 |
7×1.5 |
16.0 |
19.0 |
470 |
7×2.5 |
18.0 |
21.0 |
600 |
10×1.5 |
19.0 |
22.0 |
570 |
10×2.5 |
21.0 |
25.0 |
790 |
12×2.5 |
22.0 |
26.0 |
860 |
18×2.5 |
28.0 |
32.0 |
1240 |
