Mining Cable
NTMCGCWOEU Flexible Medium-Voltage Single Core Cable
Applications
These cables are used for connection in switch-gear and for connection of mobile transformer substations to the overhead line.
Standards
VDE 0250 Part 813

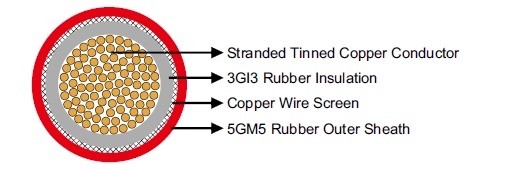

Construction
Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer: Semiconductive rubber.
Insulation: EPR type 3GI3.
Outer Conductor Layer:Semiconductive rubber.
Screen: Copper wire braid.
Outer Sheath: PCP type 5GM5.
Dimensions and Weight
3.6/6kV
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
1×16/16KON |
19.4 |
21.4 |
601 |
1×25/16KON |
21.4 |
23.4 |
825 |
1×35/16KON |
22.6 |
24.6 |
882 |
1×50/16KON |
24.6 |
27.6 |
1104 |
1×70/16KON |
26.5 |
29.5 |
1346 |
1×95/16KON |
28.5 |
31.5 |
1614 |
1×120/16KON |
31.2 |
34.2 |
1983 |
1×150/25KON |
32.9 |
35.9 |
2300 |
1×185/25KON |
34.3 |
37.3 |
2642 |
1×240/25KON |
38.6 |
41.6 |
3371 |
6/10 kV
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
1×16/16KON |
20.4 |
22.4 |
644 |
1×25/16KON |
22.2 |
24.2 |
791 |
1×35/16KON |
23.4 |
25.4 |
1050 |
1×50/16KON |
25.4 |
28.4 |
1153 |
1×70/16KON |
27.3 |
30.3 |
1399 |
1×95/16KON |
29.3 |
32.3 |
1910 |
1×120/16KON |
32.0 |
35.0 |
2044 |
1×150/25KON |
33.7 |
36.7 |
2364 |
1×185/25KON |
35.1 |
38.1 |
2709 |
1×240/25KON |
39.4 |
42.4 |
3446 |
8.7/15 kV
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
1×16/16KON |
22.6 |
24.6 |
760 |
1×25/16KON |
24.8 |
27.8 |
954 |
1×35/16KON |
26.4 |
29.4 |
1101 |
1×50/16KON |
28.0 |
31.0 |
1304 |
1×70/16KON |
30.5 |
33.5 |
1623 |
1×95/16KON |
32.5 |
35.5 |
1912 |
1×120/16KON |
34.2 |
37.2 |
2219 |
1×150/25KON |
36.9 |
39.9 |
2637 |
1×185/25KON |
38.3 |
41.3 |
2995 |
1×240/25KON |
41.6 |
44.6 |
3658 |
12/20 kV
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
1×16/16KON |
26.0 |
29.0 |
971 |
1×25/16KON |
27.2 |
30.2 |
1090 |
1×35/16KON |
28.4 |
31.4 |
1236 |
1×50/16KON |
31.0 |
34.0 |
1680 |
1×70/16KON |
32.5 |
35.5 |
1776 |
1×95/16KON |
34.5 |
37.5 |
2170 |
1×120/16KON |
37.2 |
40.2 |
2481 |
1×150/25KON |
38.9 |
41.9 |
3020 |
1×185/25KON |
40.3 |
43.3 |
3182 |
1×240/25KON |
43.6 |
46.6 |
3870 |
