Mining Cable
NTSCGERLWOEU 3.6/6kV Flexible Submersible Cable
Applications
These cables are used for permanent operation inwater where the cable is required to have additionalmechanical protection.
Standards
VDE 0250 Part 813

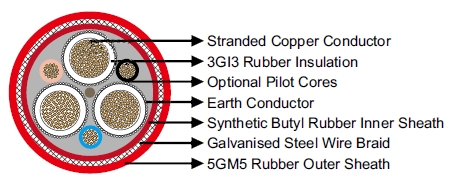

Construction
Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer: Special rubber compound, conductive.
Insulation: Rubbertype 3GI3.
Outer Conductor Layer:Special rubber, conductive, easy strippable.
Pilot Cores (optional):Copper conductor with EPR insulation.
Earth Conductor: Spiral of tinned annealed copper wires.
InnerSheath: Waterproof synthetic butyl rubber.
Armouring: Braid of galvanised steel strands.
Outer Sheath: Rubber type 5GM5.
Dimensions and Weight
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
3×35+3×16/3E |
55.0 |
60.0 |
4600 |
3×50+3×25/3E |
59.0 |
67.0 |
5600 |
3×70+3×35/3E |
64.0 |
70.0 |
6700 |
3×95+3×50/3E |
68.0 |
75.0 |
7900 |
3×120+3×70/3E |
75.0 |
80.0 |
9980 |
