Cat 5e SF/UTP 24AWG 4P/8P
Applications
These Cat5e SF/UTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz.
Standards
- EN 50173-1
- EN 50288-2-1
- ISO/IEC 11801
- IEC 61156-5
- TIA/EIA-568-B.2
- IEC 60332-1 (for PVC & LSOH & FRLSOH Sheath)
- IEC 60754-2 (for LSOH & FRLSOH Sheath)
- IEC 61034 (for LSOH & FRLSOH Sheath)
- IEC 60332-3-24 (for FRLSOH Sheath)

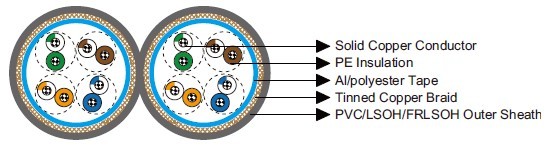

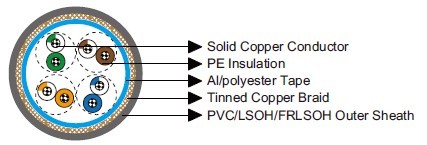

Construction
| Conductors | Bare copper conductor. |
| Insulation | PE. |
| Twinning | Two coloured insulated conductors twisted together to form a pair. |
| Overall Screen1 | Al/polyester tape. |
| Overall Screen2 | Tinned copper wire braid. |
| Outer Sheath | PVC/LSOH/FRLSOH. |
Core Identification
| Pair 1 | White/Blue, Blue |
| Pair 2 | White/Orange, Orange |
| Pair 3 | White/Green, Green |
| Pair 4 | White/Brown, Brown |
Electrical Properties
| Characteristic Impedance(1-100MHz) | Ω | 100±15 |
| Nominal Velocity of Propagation(NVP) | 69% | |
| Maximum Mutual Capacitance | nF/100m | 5.6 |
| Maximum Capacitance Unbalance | pF/100m | 330 |
| Maximum Resistance Unbalance | 5% | |
| Maximum Propagation Delay Skew | ns/100m | 30 |
| Maximum Propagation Delay@100MHz | ns/100m | 536 |
| Voltage Rating | V rms | 80 |
Nominal Transmission Characteristics @20℃
| FREQ | NEXT | Attenuation | RL | ACR | ELFEXT | PSNEXT | PSACR | PSELFEXT |
| MHz | dB/100m | dB/100m | dB/100m | dB/100m | dB/100m | dB/100m | dB/100m | dB/100m |
| 1 | 65.3 | 2 | 20.2 | 63.3 | 63.8 | 62.3 | 60.3 | 60.8 |
| 4 | 56.3 | 4.1 | 23 | 52.2 | 51.7 | 53.3 | 49.2 | 48.7 |
| 8 | 51.8 | 5.8 | 24.5 | 46 | 45.7 | 48.8 | 43 | 42.7 |
| 10 | 50.3 | 6.5 | 25 | 43.8 | 43.8 | 47.3 | 40.8 | 40.8 |
| 16 | 47.3 | 8.2 | 25 | 39.1 | 39.7 | 44.3 | 36.1 | 36.7 |
| 20 | 45.8 | 9.3 | 25 | 36.5 | 37.7 | 42.8 | 33.5 | 34.7 |
| 25 | 44.3 | 10.4 | 24.3 | 33.9 | 35.8 | 41.3 | 30.9 | 32.8 |
| 31.25 | 42.9 | 11.7 | 23.6 | 31.2 | 33.9 | 39.9 | 28.2 | 30.9 |
| 62.5 | 38.4 | 17 | 21.5 | 21.4 | 27.8 | 35.4 | 18.4 | 24.8 |
| 100 | 35.3 | 22 | 20.1 | 13.3 | 23.8 | 32.3 | 10.3 | 20.8 |
| 155 | 32.5 | 28.1 | 18.8 | 4.4 | 19.9 | 29.5 | -1.4 | 16.9 |
| 200 | 30.7 | 32.4 | 18 | -1.7 | 18.7 | 27.7 | -4.7 | 15.7 |
| 310 | 29.3 | 41.8 | 17.3 | N/A | 10 | 26.3 | N/A | 13 |
| 350 | 27.1 | 44.9 | 17.3 | N A | 7.1 | 24.1 | N A | 10.1 |
* Data for 100MHz above are for reference only
Mechanical and Thermal Properties
| Bending Radius | 8×OD (during installation); |
| 4×OD (fixed installed) | |
| Temperature Range | -40℃ ~ +85℃ |
Dimensions and Weight
| Part No. | Construction No. of elements×No. of cores in element×Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
| mm² | mm | mm | mm | kg/km | |
| MLN-SF/UTPCAT5E4P24 | 4×2×24AWG | 0.29 | 0.6 | 6.4 | 47 |
| MLN-SF/UTPCAT5E8P24 | 2×(4×2×24AWG) | 0.29 | 0.6 | 13.0×6.4 | 94 |
