IEC60092 STANDARD Offshore & Marine Cables
FMGCH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)
Applications
These armoured cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- IEC 60092-350/351/376/359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

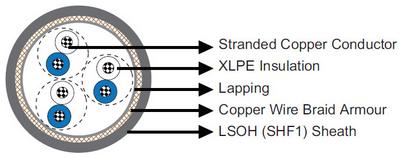

Construction
| Conductors | Class 2 stranded copper conductor. |
| Insulation | XLPE. |
| Cabling Element | Pair/Triple. |
| Inner Covering | Lapped polyester tape. |
| Armour | Copper wire braid. |
| Outer Sheath | LSOH (SHF1). |
Core Identification
| Pair | White/blue with printed pair number and core number. |
| Triple | White/blue/red with printed triple number. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations | 6×OD |
| Temperature Range | -30℃ ~ +80℃ |
Dimensions and Weight
| Part No. | Construction No. of elements×No. of cores in element×Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
| mm² | mm | mm | mm | kg/km | |
| FMGCH -1P0.75 | 1×2×0.75 | 0.5 | 1.2 | 8.1 | 90 |
| FMGCH -2P0.75 | 2×2×0.75 | 0.5 | 1.3 | 9.3 | 130 |
| FMGCH -3P0.75 | 3×2×0.75 | 0.5 | 1.4 | 12.4 | 200 |
| FMGCH -4P0.75 | 4×2×0.75 | 0.5 | 1.4 | 13.1 | 230 |
| FMGCH -5P0.75 | 5×2×0.75 | 0.5 | 1.8 | 15.2 | 320 |
| FMGCH -6P0.75 | 6×2×0.75 | 0.5 | 1.8 | 16.1 | 350 |
| FMGCH -7P0.75 | 7×2×0.75 | 0.5 | 1.8 | 16.1 | 370 |
| FMGCH -8P0.75 | 8×2×0.75 | 0.5 | 1.9 | 17.2 | 420 |
| FMGCH -10P0.75 | 10×2×0.75 | 0.5 | 1.9 | 19.1 | 500 |
| FMGCH -12P0.75 | 12×2×0.75 | 0.5 | 2.0 | 20.0 | 560 |
| FMGCH -14P0.75 | 14×2×0.75 | 0.5 | 2.0 | 20.6 | 610 |
| FMGCH -16P0.75 | 16×2×0.75 | 0.5 | 2.1 | 22.2 | 690 |
| FMGCH -19P0.75 | 19×2×0.75 | 0.5 | 2.1 | 23.6 | 790 |
| FMGCH -20P0.75 | 20×2×0.75 | 0.5 | 2.1 | 23.6 | 800 |
| FMGCH -24P0.75 | 24×2×0.75 | 0.5 | 2.2 | 26.8 | 980 |
| FMGCH -30P0.75 | 30×2×0.75 | 0.5 | 2.3 | 29.1 | 1160 |
| FMGCH -37P0.75 | 37×2×0.75 | 0.5 | 2.4 | 31.1 | 1360 |
| FMGCH -1P1.0 | 1×2×1.0 | 0.5 | 1.3 | 8.7 | 110 |
| FMGCH -2P1.0 | 2×2×1.0 | 0.5 | 1.3 | 9.7 | 150 |
| FMGCH -3P1.0 | 3×2×1.0 | 0.5 | 1.4 | 13.2 | 230 |
| FMGCH -4P1.0 | 4×2×1.0 | 0.5 | 1.8 | 14.6 | 310 |
| FMGCH -5P1.0 | 5×2×1.0 | 0.5 | 1.8 | 16.1 | 360 |
| FMGCH -6P1.0 | 6×2×1.0 | 0.5 | 1.9 | 17.3 | 420 |
| FMGCH -7P1.0 | 7×2×1.0 | 0.5 | 1.9 | 17.3 | 440 |
| FMGCH -8P1.0 | 8×2×1.0 | 0.5 | 1.9 | 18.3 | 490 |
| FMGCH -10P1.0 | 10×2×1.0 | 0.5 | 2.0 | 20.5 | 590 |
| FMGCH -12P1.0 | 12×2×1.0 | 0.5 | 2.0 | 21.3 | 660 |
| FMGCH -14P1.0 | 14×2×1.0 | 0.5 | 2.1 | 22.2 | 730 |
| FMGCH -16P1.0 | 16×2×1.0 | 0.5 | 2.1 | 23.7 | 820 |
| FMGCH -19P1.0 | 19×2×1.0 | 0.5 | 2.2 | 25.4 | 940 |
| FMGCH -20P1.0 | 20×2×1.0 | 0.5 | 2.2 | 25.4 | 960 |
| FMGCH -24P1.0 | 24×2×1.0 | 0.5 | 2.3 | 28.9 | 1170 |
| FMGCH -30P1.0 | 30×2×1.0 | 0.5 | 2.4 | 31.3 | 1400 |
| FMGCH -37P1.0 | 37×2×1.0 | 0.5 | 2.5 | 33.5 | 1640 |
| FMGCH -1P1.5 | 1×2×1.5 | 0.6 | 1.3 | 9.7 | 140 |
| FMGCH -2P1.5 | 2×2×1.5 | 0.6 | 1.3 | 10.9 | 190 |
| FMGCH -3P1.5 | 3×2×1.5 | 0.6 | 1.8 | 15.7 | 340 |
| FMGCH -4P1.5 | 4×2×1.5 | 0.6 | 1.9 | 16.8 | 400 |
| FMGCH -5P1.5 | 5×2×1.5 | 0.6 | 1.9 | 18.6 | 480 |
| FMGCH -6P1.5 | 6×2×1.5 | 0.6 | 2.0 | 20.0 | 550 |
| FMGCH -7P1.5 | 7×2×1.5 | 0.6 | 2.0 | 20.0 | 590 |
| FMGCH -8P1.5 | 8×2×1.5 | 0.6 | 2.0 | 21.2 | 650 |
| FMGCH -10P1.5 | 10×2×1.5 | 0.6 | 2.1 | 23.8 | 800 |
| FMGCH -12P1.5 | 12×2×1.5 | 0.6 | 2.2 | 24.9 | 900 |
| FMGCH -14P1.5 | 14×2×1.5 | 0.6 | 2.2 | 25.8 | 990 |
| FMGCH -16P1.5 | 16×2×1.5 | 0.6 | 2.3 | 27.8 | 1130 |
| FMGCH -19P1.5 | 19×2×1.5 | 0.6 | 2.3 | 29.6 | 1290 |
| FMGCH -20P1.5 | 20×2×1.5 | 0.6 | 2.3 | 29.6 | 1320 |
| FMGCH -24P1.5 | 24×2×1.5 | 0.6 | 2.5 | 33.9 | 1630 |
| FMGCH -30P1.5 | 30×2×1.5 | 0.6 | 2.8 | 37.3 | 2040 |
| FMGCH -37P1.5 | 37×2×1.5 | 0.6 | 2.9 | 39.9 | 2390 |
| FMGCH -1T0.75 | 1×3×0.75 | 0.5 | 1.3 | 8.7 | 110 |
| FMGCH -2T0.75 | 2×3×0.75 | 0.5 | 1.4 | 12.6 | 210 |
| FMGCH -3T0.75 | 3×3×0.75 | 0.5 | 1.4 | 13.3 | 240 |
| FMGCH -4T0.75 | 4×3×0.75 | 0.5 | 1.8 | 15.2 | 330 |
| FMGCH -5T0.75 | 5×3×0.75 | 0.5 | 1.9 | 16.8 | 400 |
| FMGCH -6T0.75 | 6×3×0.75 | 0.5 | 1.9 | 18.6 | 470 |
| FMGCH -7T0.75 | 7×3×0.75 | 0.5 | 1.9 | 18.6 | 490 |
| FMGCH -8T0.75 | 8×3×0.75 | 0.5 | 2.0 | 20.0 | 560 |
| FMGCH -10T0.75 | 10×3×0.75 | 0.5 | 2.1 | 22.5 | 690 |
| FMGCH -12T0.75 | 12×3×0.75 | 0.5 | 2.1 | 23.6 | 770 |
| FMGCH -14T0.75 | 14×3×0.75 | 0.5 | 2.1 | 24.5 | 850 |
| FMGCH -16T0.75 | 16×3×0.75 | 0.5 | 2.2 | 26.1 | 950 |
| FMGCH -19T0.75 | 19×3×0.75 | 0.5 | 2.3 | 28.2 | 1100 |
| FMGCH -20T0.75 | 20×3×0.75 | 0.5 | 2.3 | 28.6 | 1140 |
| FMGCH -24T0.75 | 24×3×0.75 | 0.5 | 2.4 | 31.1 | 1340 |
| FMGCH -30T0.75 | 30×3×0.75 | 0.5 | 2.5 | 34.3 | 1620 |
| FMGCH -32T0.75 | 32×3×0.75 | 0.5 | 2.5 | 35.4 | 1720 |
| FMGCH -1T1.0 | 1×3×1.0 | 0.5 | 1.3 | 9.1 | 130 |
| FMGCH -2T1.0 | 2×3×1.0 | 0.5 | 1.4 | 13.4 | 240 |
| FMGCH -3T1.0 | 3×3×1.0 | 0.5 | 1.8 | 14.9 | 320 |
| FMGCH -4T1.0 | 4×3×1.0 | 0.5 | 1.8 | 16.1 | 380 |
| FMGCH -5T1.0 | 5×3×1.0 | 0.5 | 1.9 | 17.8 | 460 |
| FMGCH -6T1.0 | 6×3×1.0 | 0.5 | 2.0 | 20.0 | 560 |
| FMGCH -7T1.0 | 7×3×1.0 | 0.5 | 2.0 | 20.0 | 590 |
| FMGCH -8T1.0 | 8×3×1.0 | 0.5 | 2.0 | 21.3 | 660 |
| FMGCH -10T1.0 | 10×3×1.0 | 0.5 | 2.1 | 24.0 | 810 |
| FMGCH -12T1.0 | 12×3×1.0 | 0.5 | 2.2 | 25.4 | 920 |
| FMGCH -14T1.0 | 14×3×1.0 | 0.5 | 2.2 | 26.4 | 1020 |
| FMGCH -16T1.0 | 16×3×1.0 | 0.5 | 2.3 | 28.1 | 1150 |
| FMGCH -19T1.0 | 19×3×1.0 | 0.5 | 2.4 | 30.3 | 1330 |
| FMGCH -20T1.0 | 20×3×1.0 | 0.5 | 2.4 | 30.8 | 1380 |
| FMGCH -24T1.0 | 24×3×1.0 | 0.5 | 2.5 | 33.5 | 1620 |
| FMGCH -30T1.0 | 30×3×1.0 | 0.5 | 2.8 | 37.5 | 2060 |
| FMGCH -32T1.0 | 32×3×1.0 | 0.5 | 2.9 | 38.9 | 2190 |
| FMGCH -1T1.5 | 1×3×1.5 | 0.6 | 1.3 | 10.2 | 160 |
| FMGCH -2T1.5 | 2×3×1.5 | 0.6 | 1.8 | 16.0 | 350 |
| FMGCH -3T1.5 | 3×3×1.5 | 0.6 | 1.9 | 17.1 | 430 |
| FMGCH -4T1.5 | 4×3×1.5 | 0.6 | 1.9 | 18.6 | 510 |
| FMGCH -5T1.5 | 5×3×1.5 | 0.6 | 2.0 | 20.6 | 620 |
| FMGCH -6T1.5 | 6×3×1.5 | 0.6 | 2.1 | 23.2 | 750 |
| FMGCH -7T1.5 | 7×3×1.5 | 0.6 | 2.1 | 23.2 | 800 |
| FMGCH -8T1.5 | 8×3×1.5 | 0.6 | 2.2 | 24.9 | 900 |
| FMGCH -10T1.5 | 10×3×1.5 | 0.6 | 2.3 | 28.1 | 1110 |
| FMGCH -12T1.5 | 12×3×1.5 | 0.6 | 2.3 | 29.6 | 1260 |
| FMGCH -14T1.5 | 14×3×1.5 | 0.6 | 2.4 | 31.0 | 1410 |
| FMGCH -16T1.5 | 16×3×1.5 | 0.6 | 2.5 | 33.0 | 1590 |
| FMGCH -19T1.5 | 19×3×1.5 | 0.6 | 2.5 | 35.4 | 1830 |
| FMGCH -20T1.5 | 20×3×1.5 | 0.6 | 2.8 | 36.7 | 2010 |
| FMGCH -24T1.5 | 24×3×1.5 | 0.6 | 2.9 | 39.9 | 2360 |
| FMGCH -30T1.5 | 30×3×1.5 | 0.6 | 3.1 | 44.2 | 2880 |
| FMGCH -32T1.5 | 32×3×1.5 | 0.6 | 3.1 | 45.7 | 3060 |
