KX Series Coaxial Cables 50 Ω/75 Ω
Applications
These radio frequency cables are suitable for high frequency data transmission (communication equipment, radar, instrumentation equipment) and video signal transmission.
Standards
- In line with MIL C17
- IEC 60092-359
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

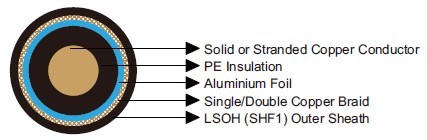

Construction
| Conductors | Solid or stranded CCS (Bare copper plated steel), BC (Bare copper). |
| Insulation | PE. |
| Fire Barriers | Aluminium foil. |
| Screen | Single or double braid. Bare, tinned or silvered copper. |
| Outer Sheath | LSOH (SHF1). |
Electrical Characteristics
| KX 3B | KX 6A | KX 8 | ||
| Characteristic Impedance | Ω | 50 | 75 | 75 |
| Capacitance | pF/m | 106 | 72 | 72 |
| Velocity | % | 66 | 66 | 66 |
| Attenuation @200MHz | dB/100m | 45 | 20 | 12 |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations | 10×OD |
| Temperature Range | -30℃ ~ +60℃ |
Dimensions and Weight
50 Ω
| Part No. | Cable Type | Conductor Stranding | Conductor Diameter | Dielectric Diameter | Nominal Overall Diameter | Nominal Weight |
| No.×mm | mm | mm | mm | kg/km | ||
| MLN-KX3B | KX 3B | 7×0.16 CCS | 0.48 | 1.50 | 2.55 | 10 |
75 Ω
| Part No. | Cable Type | Conductor Stranding | Conductor Diameter | Dielectric Diameter | Nominal Overall Diameter | Nominal Weight |
| No.×mm | mm | mm | mm | kg/km | ||
| MLN-KX6A | KX 6A | 7×0.20 BC | 0.6 | 3.7 | 6.1 | 57 |
| MLN-KX8 | KX 8 | 7×0.40 BC | 1.2 | 7.25 | 10.3 | 145 |
