IEC60092 STANDARD Offshore & Marine Cables |
IEC60092 STANDARD Offshore & Marine Cables
MRE-M2XCH PiMF/TiMF 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened & Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)
Applications
These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- IEC 60092-350/351/376/359
- IEC 60331-21
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

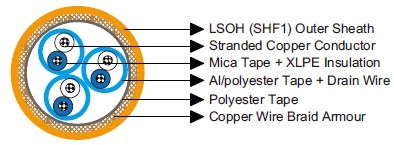

Construction
| Conductors |
Class 2 stranded copper conductor. |
| Insulation |
Mica tape + XLPE. |
| Cabling Element |
Pair/Triple. |
| Individual Screen |
Al/polyester tape. |
| Drain Wire |
Tinned copper wire. |
| Inner Covering |
Lapped polyester tape. |
| Armour |
Copper wire braid. |
| Outer Sheath |
LSOH (SHF1).SHF2 can be offered upon request. |
Core Identification
| Pair |
White/blue with printed pair number and core number.
|
| Triple |
White/blue/red with printed triple number. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6×OD |
| Temperature Range |
-30℃ ~ +80℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm² |
mm |
mm |
mm |
kg/km |
| MRE-M2XCH PiMF-1P0.75 |
1×2×0.75 |
0.5 |
1.3 |
9.3 |
130 |
| MRE-M2XCH PiMF-2P0.75 |
2×2×0.75 |
0.5 |
1.4 |
13.6 |
230 |
| MRE-M2XCH PiMF-3P0.75 |
3×2×0.75 |
0.5 |
1.8 |
15.1 |
320 |
| MRE-M2XCH PiMF-4P0.75 |
4×2×0.75 |
0.5 |
1.8 |
16.0 |
370 |
| MRE-M2XCH PiMF-5P0.75 |
5×2×0.75 |
0.5 |
1.9 |
17.9 |
450 |
| MRE-M2XCH PiMF-6P0.75 |
6×2×0.75 |
0.5 |
1.9 |
19.1 |
510 |
| MRE-M2XCH PiMF-7P0.75 |
7×2×0.75 |
0.5 |
1.9 |
19.1 |
540 |
| MRE-M2XCH PiMF-8P0.75 |
8×2×0.75 |
0.5 |
2.0 |
20.4 |
610 |
| MRE-M2XCH PiMF-10P0.75 |
10×2×0.75 |
0.5 |
2.1 |
22.9 |
740 |
| MRE-M2XCH PiMF-12P0.75 |
12×2×0.75 |
0.5 |
2.1 |
23.7 |
830 |
| MRE-M2XCH PiMF-14P0.75 |
14×2×0.75 |
0.5 |
2.1 |
24.6 |
910 |
| MRE-M2XCH PiMF-16P0.75 |
16×2×0.75 |
0.5 |
2.2 |
26.5 |
1040 |
| MRE-M2XCH PiMF-19P0.75 |
19×2×0.75 |
0.5 |
2.3 |
28.4 |
1200 |
| MRE-M2XCH PiMF-20P0.75 |
20×2×0.75 |
0.5 |
2.3 |
28.4 |
1230 |
| MRE-M2XCH PiMF-24P0.75 |
24×2×0.75 |
0.5 |
2.4 |
32.3 |
1490 |
| MRE-M2XCH PiMF-30P0.75 |
30×2×0.75 |
0.5 |
2.5 |
35.1 |
1790 |
| MRE-M2XCH PiMF-37P0.75 |
37×2×0.75 |
0.5 |
2.8 |
38.1 |
2200 |
| MRE-M2XCH PiMF-1P1.0 |
1×2×1.0 |
0.5 |
1.3 |
9.7 |
140 |
| MRE-M2XCH PiMF-2P1.0 |
2×2×1.0 |
0.5 |
1.8 |
15.0 |
300 |
| MRE-M2XCH PiMF-3P1.0 |
3×2×1.0 |
0.5 |
1.8 |
15.9 |
360 |
| MRE-M2XCH PiMF-4P1.0 |
4×2×1.0 |
0.5 |
1.9 |
17.0 |
430 |
| MRE-M2XCH PiMF-5P1.0 |
5×2×1.0 |
0.5 |
1.9 |
18.8 |
510 |
| MRE-M2XCH PiMF-6P1.0 |
6×2×1.0 |
0.5 |
2.0 |
20.3 |
600 |
| MRE-M2XCH PiMF-7P1.0 |
7×2×1.0 |
0.5 |
2.0 |
20.3 |
630 |
| MRE-M2XCH PiMF-8P1.0 |
8×2×1.0 |
0.5 |
2.0 |
21.5 |
700 |
| MRE-M2XCH PiMF-10P1.0 |
10×2×1.0 |
0.5 |
2.1 |
24.1 |
860 |
| MRE-M2XCH PiMF-12P1.0 |
12×2×1.0 |
0.5 |
2.2 |
25.2 |
980 |
| MRE-M2XCH PiMF-14P1.0 |
14×2×1.0 |
0.5 |
2.2 |
26.1 |
1080 |
| MRE-M2XCH PiMF-16P1.0 |
16×2×1.0 |
0.5 |
2.3 |
28.2 |
1230 |
| MRE-M2XCH PiMF-19P1.0 |
19×2×1.0 |
0.5 |
2.3 |
30.0 |
1410 |
| MRE-M2XCH PiMF-20P1.0 |
20×2×1.0 |
0.5 |
2.3 |
30.0 |
1450 |
| MRE-M2XCH PiMF-24P1.0 |
24×2×1.0 |
0.5 |
2.5 |
34.4 |
1780 |
| MRE-M2XCH PiMF-30P1.0 |
30×2×1.0 |
0.5 |
2.8 |
37.8 |
2220 |
| MRE-M2XCH PiMF-37P1.0 |
37×2×1.0 |
0.5 |
2.9 |
40.5 |
2620 |
| MRE-M2XCH PiMF-1P1.5 |
1×2×1.5 |
0.6 |
1.3 |
10.7 |
170 |
| MRE-M2XCH PiMF-2P1.5 |
2×2×1.5 |
0.6 |
1.9 |
16.9 |
380 |
| MRE-M2XCH PiMF-3P1.5 |
3×2×1.5 |
0.6 |
1.9 |
17.9 |
450 |
| MRE-M2XCH PiMF-4P1.5 |
4×2×1.5 |
0.6 |
1.9 |
19.0 |
530 |
| MRE-M2XCH PiMF-5P1.5 |
5×2×1.5 |
0.6 |
2.0 |
21.3 |
650 |
| MRE-M2XCH PiMF-6P1.5 |
6×2×1.5 |
0.6 |
2.1 |
23.0 |
750 |
| MRE-M2XCH PiMF-7P1.5 |
7×2×1.5 |
0.6 |
2.1 |
23.0 |
800 |
| MRE-M2XCH PiMF-8P1.5 |
8×2×1.5 |
0.6 |
2.1 |
24.4 |
890 |
| MRE-M2XCH PiMF-10P1.5 |
10×2×1.5 |
0.6 |
2.3 |
27.6 |
1110 |
| MRE-M2XCH PiMF-12P1.5 |
12×2×1.5 |
0.6 |
2.3 |
28.7 |
1250 |
| MRE-M2XCH PiMF-14P1.5 |
14×2×1.5 |
0.6 |
2.3 |
29.7 |
1380 |
| MRE-M2XCH PiMF-16P1.5 |
16×2×1.5 |
0.6 |
2.4 |
32.1 |
1580 |
| MRE-M2XCH PiMF-19P1.5 |
19×2×1.5 |
0.6 |
2.5 |
34.4 |
1820 |
| MRE-M2XCH PiMF-20P1.5 |
20×2×1.5 |
0.6 |
2.5 |
34.4 |
1870 |
| MRE-M2XCH PiMF-24P1.5 |
24×2×1.5 |
0.6 |
2.9 |
39.9 |
2400 |
| MRE-M2XCH PiMF-30P1.5 |
30×2×1.5 |
0.6 |
3.0 |
43.3 |
2870 |
| MRE-M2XCH PiMF-37P1.5 |
37×2×1.5 |
0.6 |
3.2 |
46.6 |
3410 |
| MRE-M2XCH TiMF-1T0.75 |
1×3×0.75 |
0.5 |
1.3 |
9.7 |
140 |
| MRE-M2XCH TiMF-2T0.75 |
2×3×0.75 |
0.5 |
1.8 |
15.4 |
320 |
| MRE-M2XCH TiMF-3T0.75 |
3×3×0.75 |
0.5 |
1.8 |
16.2 |
380 |
| MRE-M2XCH TiMF-4T0.75 |
4×3×0.75 |
0.5 |
1.9 |
17.9 |
460 |
| MRE-M2XCH TiMF-5T0.75 |
5×3×0.75 |
0.5 |
2.0 |
19.8 |
560 |
| MRE-M2XCH TiMF-6T0.75 |
6×3×0.75 |
0.5 |
2.1 |
22.2 |
670 |
| MRE-M2XCH TiMF-7T0.75 |
7×3×0.75 |
0.5 |
2.1 |
22.2 |
710 |
| MRE-M2XCH TiMF-8T0.75 |
8×3×0.75 |
0.5 |
2.1 |
23.7 |
800 |
| MRE-M2XCH TiMF-10T0.75 |
10×3×0.75 |
0.5 |
2.2 |
26.7 |
980 |
| MRE-M2XCH TiMF-12T0.75 |
12×3×0.75 |
0.5 |
2.3 |
28.3 |
1120 |
| MRE-M2XCH TiMF-14T0.75 |
14×3×0.75 |
0.5 |
2.3 |
29.4 |
1240 |
| MRE-M2XCH TiMF-16T0.75 |
16×3×0.75 |
0.5 |
2.4 |
31.4 |
1400 |
| MRE-M2XCH TiMF-19T0.75 |
19×3×0.75 |
0.5 |
2.5 |
33.9 |
1620 |
| MRE-M2XCH TiMF-20T0.75 |
20×3×0.75 |
0.5 |
2.5 |
34.4 |
1680 |
| MRE-M2XCH TiMF-24T0.75 |
24×3×0.75 |
0.5 |
2.8 |
37.9 |
2070 |
| MRE-M2XCH TiMF-30T0.75 |
30×3×0.75 |
0.5 |
3.0 |
42.0 |
2520 |
| MRE-M2XCH TiMF-32T0.75 |
32×3×0.75 |
0.5 |
3.0 |
43.4 |
2670 |
| MRE-M2XCH TiMF-1T1.0 |
1×3×1.0 |
0.5 |
1.3 |
10.1 |
160 |
| MRE-M2XCH TiMF-2T1.0 |
2×3×1.0 |
0.5 |
1.8 |
16.1 |
360 |
| MRE-M2XCH TiMF-3T1.0 |
3×3×1.0 |
0.5 |
1.9 |
17.3 |
440 |
| MRE-M2XCH TiMF-4T1.0 |
4×3×1.0 |
0.5 |
1.9 |
18.8 |
530 |
| MRE-M2XCH TiMF-5T1.0 |
5×3×1.0 |
0.5 |
2.0 |
20.8 |
640 |
| MRE-M2XCH TiMF-6T1.0 |
6×3×1.0 |
0.5 |
2.1 |
23.4 |
770 |
| MRE-M2XCH TiMF-7T1.0 |
7×3×1.0 |
0.5 |
2.1 |
23.4 |
820 |
| MRE-M2XCH TiMF-8T1.0 |
8×3×1.0 |
0.5 |
2.2 |
25.2 |
930 |
| MRE-M2XCH TiMF-10T1.0 |
10×3×1.0 |
0.5 |
2.3 |
28.4 |
1150 |
| MRE-M2XCH TiMF-12T1.0 |
12×3×1.0 |
0.5 |
2.3 |
29.9 |
1310 |
| MRE-M2XCH TiMF-14T1.0 |
14×3×1.0 |
0.5 |
2.4 |
31.3 |
1470 |
| MRE-M2XCH TiMF-16T1.0 |
16×3×1.0 |
0.5 |
2.5 |
33.4 |
1660 |
| MRE-M2XCH TiMF-19T1.0 |
19×3×1.0 |
0.5 |
2.8 |
36.5 |
2010 |
| MRE-M2XCH TiMF-20T1.0 |
20×3×1.0 |
0.5 |
2.8 |
37.1 |
2090 |
| MRE-M2XCH TiMF-24T1.0 |
24×3×1.0 |
0.5 |
2.9 |
40.3 |
2450 |
| MRE-M2XCH TiMF-30T1.0 |
30×3×1.0 |
0.5 |
3.1 |
44.7 |
3000 |
| MRE-M2XCH TiMF-32T1.0 |
32×3×1.0 |
0.5 |
3.1 |
46.2 |
3180 |
| MRE-M2XCH TiMF-1T1.5 |
1×3×1.5 |
0.6 |
1.4 |
11.4 |
200 |
| MRE-M2XCH TiMF-2T1.5 |
2×3×1.5 |
0.6 |
1.9 |
18.2 |
450 |
| MRE-M2XCH TiMF-3T1.5 |
3×3×1.5 |
0.6 |
2.0 |
19.5 |
560 |
| MRE-M2XCH TiMF-4T1.5 |
4×3×1.5 |
0.6 |
2.0 |
21.3 |
670 |
| MRE-M2XCH TiMF-5T1.5 |
5×3×1.5 |
0.6 |
2.1 |
23.6 |
820 |
| MRE-M2XCH TiMF-6T1.5 |
6×3×1.5 |
0.6 |
2.2 |
26.6 |
990 |
| MRE-M2XCH TiMF-7T1.5 |
7×3×1.5 |
0.6 |
2.2 |
26.6 |
1060 |
| MRE-M2XCH TiMF-8T1.5 |
8×3×1.5 |
0.6 |
2.3 |
28.6 |
1200 |
| MRE-M2XCH TiMF-10T1.5 |
10×3×1.5 |
0.6 |
2.4 |
32.3 |
1480 |
| MRE-M2XCH TiMF-12T1.5 |
12×3×1.5 |
0.6 |
2.5 |
34.3 |
1700 |
| MRE-M2XCH TiMF-14T1.5 |
14×3×1.5 |
0.6 |
2.6 |
35.9 |
1920 |
| MRE-M2XCH TiMF-16T1.5 |
16×3×1.5 |
0.6 |
2.9 |
38.8 |
2260 |
| MRE-M2XCH TiMF-19T1.5 |
19×3×1.5 |
0.6 |
3.0 |
41.8 |
2620 |
| MRE-M2XCH TiMF-20T1.5 |
20×3×1.5 |
0.6 |
3.0 |
42.5 |
2720 |
| MRE-M2XCH TiMF-24T1.5 |
24×3×1.5 |
0.6 |
3.1 |
46.2 |
3200 |
| MRE-M2XCH TiMF-30T1.5 |
30×3×1.5 |
0.6 |
3.3 |
51.2 |
3910 |
| MRE-M2XCH TiMF-32T1.5 |
32×3×1.5 |
0.6 |
3.4 |
53.2 |
4180 |
