IEC60092 STANDARD Offshore & Marine Cables
MRE-M2XH 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Instrumentation & Control Cables (Multicore)
Applications
These cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- IEC 60092-350/351/376/359
- IEC 60331-21
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

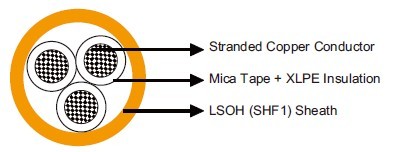

Construction
| Conductors | Class 2 stranded copper conductor. |
| Insulation | Mica tape + XLPE. |
| Outer Sheath | LSOH (SHF1).SHF2 can be offered upon request. |
Core Identification
White with printed number.
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations | 4×OD |
| Temperature Range | -30℃ ~ +80℃ |
Dimensions and Weight
| Part No. | Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
| mm² | mm | mm | mm | kg/km | |
| MRE-M2XH-2C0.75 | 2×0.75 | 0.5 | 1.1 | 6.3 | 63 |
| MRE-M2XH-4C0.75 | 4×0.75 | 0.5 | 1.2 | 6.7 | 84 |
