CAN BUS CABLES 120Ω
Applications
These cables are dedicated to the shipbuilding industry.
Standards
- IEC 60092-350/351/352/353/359/370/376
- IEC 60332-1-2
- IEC 60754-1/2
- IEC 60332-3-22
- IEC 61034

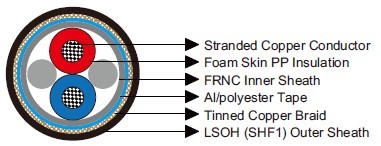

Construction
| Conductors | Stranded bare copper copper 21AWG. |
| Insulation | Foam skin PP. |
| Inner Sheath | Thermoplastic copolymer (FRNC). |
| Overall Screen1 | Aluminium/polyester tape. |
| Overall Screen2 | Tinned copper braid. |
| Outer Sheath | LSOH (SHF1). |
Core Identification
| Pair 1 | Blue, Red |
| Pair 2 | Brown, Green |
Electrical Characteristics
| Characteristic Impedance | Ω | 120 ±18 | |
| Mutual Capacitance @1KHz | nF/km | 36 | |
| Insulation Resistance | GΩ.km | 5 | |
| 1 pair | 2 pair | ||
| Attenuation @0.1MHz | dB/100m | 0.65 | 0.3 |
| Attenuation @1MHz | dB/100m | 1.9 | 1.1 |
| Attenuation @5MHz | dB/100m | 4.3 | 2.8 |
| Attenuation @10MHz | dB/100m | 8.1 | 3.9 |
| Attenuation @20MHz | dB/100m | 10.5 | 5.7 |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations | 10×OD |
| Temperature Range | -30℃ ~ +80℃ |
Dimensions and Weight
| Part No. | Construction No. of elements×No. of cores in element×Cross section | Core Diameter | Nominal Overall Diameter | Nominal Weight |
| mm^2 | mm | mm | kg/km | |
| MLN-09YSH(ST)CH-1×2×21A | 1×2×21 AWG | 2.4 | 7.7 | 79 |
| MLN-09YSH(ST)CH-2×2×21A | 2×2×21 AWG | 2.2 | 8.4 | 90 |
