Cat 5e F/UTP 24AWG
Applications
These Cat5e F/UTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz.
Standards
- EN 50288
- ISO 11801
- IEC 61156-5
- IEC 60332-1
- IEC 60754-1/2
- IEC 61034

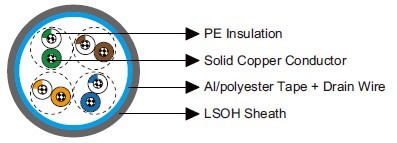

Construction
![](Cat5e-F.jpg)
Conductors |
Solid bare copper conductor. |
Insulation |
PE. |
Twinning |
Two coloured insulated conductors twisted together to form a pair. |
Overall Screen |
Al/polyester tape. |
Drain Wire |
Tinned copper wire. |
Outer Sheath |
LSOH. |
Core Identification
Pair 1 |
White/Blue, Blue |
Pair 2 |
White/Orange, Orange |
Pair 3 |
White/Green, Green |
Pair 4 |
White/Brown, Brown |
Electrical Properties
Characteristic Impedance(1-100MHz) |
Ω |
100±15 |
Nominal Velocity of Propagation(NVP) |
|
69% |
Maximum Mutual Capacitance |
nF/100m |
5.6 |
Maximum Capacitance Unbalance |
pF/100m |
330 |
Maximum Resistance Unbalance |
|
5% |
Maximum Propagation Delay Skew |
ns/100m |
30 |
Maximum Propagation Delay@100MHz |
ns/100m |
536 |
Voltage Rating |
V rms |
80 |
Nominal Transmission Characteristics @20℃
FREQ |
NEXT |
Attenuation |
RL |
ACR |
ELFEXT |
PSNEXT |
PSACR |
PSELFEXT |
MHz |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
1 |
65.3 |
2 |
20.2 |
63.3 |
63.8 |
62.3 |
60.3 |
60.8 |
4 |
56.3 |
4.1 |
23 |
52.2 |
51.7 |
53.3 |
49.2 |
48.7 |
8 |
51.8 |
5.8 |
24.5 |
46 |
45.7 |
48.8 |
43 |
42.7 |
10 |
50.3 |
6.5 |
25 |
43.8 |
43.8 |
47.3 |
40.8 |
40.8 |
16 |
47.3 |
8.2 |
25 |
39.1 |
39.7 |
44.3 |
36.1 |
36.7 |
20 |
45.8 |
9.3 |
25 |
36.5 |
37.7 |
42.8 |
33.5 |
34.7 |
25 |
44.3 |
10.4 |
24.3 |
33.9 |
35.8 |
41.3 |
30.9 |
32.8 |
31.25 |
42.9 |
11.7 |
23.6 |
31.2 |
33.9 |
39.9 |
28.2 |
30.9 |
62.5 |
38.4 |
17 |
21.5 |
21.4 |
27.8 |
35.4 |
18.4 |
24.8 |
100 |
35.3 |
22 |
20.1 |
13.3 |
23.8 |
32.3 |
10.3 |
20.8 |
155 |
32.5 |
28.1 |
18.8 |
4.4 |
19.9 |
29.5 |
-1.4 |
16.9 |
200 |
30.7 |
32.4 |
18 |
-1.7 |
18.7 |
27.7 |
-4.7 |
15.7 |
310 |
29.3 |
41.8 |
17.3 |
N/A |
10 |
26.3 |
N/A |
13 |
350 |
27.1 |
44.9 |
17.3 |
N A |
7.1 |
24.1 |
N A |
10.1 |
* Data for 100MHz above are for reference only
Mechanical and Thermal Properties
Bending Radius |
8×OD (during installation); |
|
4×OD (fixed installed) |
Temperature Range |
-20℃ ~ +60℃ |
Dimensions and Weight
Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|
(mm^2) |
mm |
mm |
mm |
kg/km |
MLN-F/UTPCAT5E4P24 |
4×2×24AWG |
0.25 |
0.75 |
6.97 |
54 |
