M2XCH 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Power & Control Cables (Multicore)
Applications
These armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free.
Standards
- IEC 60092-350/351/353/359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

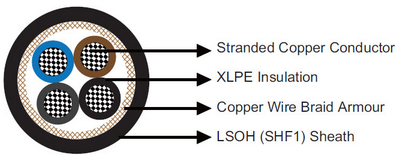

Construction
| Conductors | Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request. |
| Insulation | XLPE. |
| Inner Covering | Lapping. |
| Armour | Copper wire braid. |
| Outer Sheath | LSOH (SHF1). |
Core Identification
| Two cores | Blue, Brown. |
| Three cores | Brown, Black, Grey. |
| Four cores | Blue, Brown, Black, Grey. |
| Five cores | Blue, Brown, Black, Grey, Black. |
| Multi cores | White with black numbers. |
| With yellow/green (optional) | |
| Two cores + earth (3G) | Yellow/green, Blue, Brown. |
| Three cores + earth (4G) | Yellow/green, Brown, Black, Grey. |
| Four cores + earth (5G) | Yellow/green, Blue, Brown, Black, Grey. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations | 6×OD |
| Temperature Range | -30℃ ~ +80℃ |
Dimensions and Weight
M2XCH Multicore Armoured 0.6/1kV
| Part No. | Construction No. of elements×No. of cores in element×Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
| mm^2 | mm | mm | mm | kg/km | |
| M2XCH -2C1.5 | 2×1.5 | 0.7 | 1.1 | 9.3 | 120 |
| M2XCH -2C2.5 | 2×2.5 | 0.7 | 1.1 | 10.1 | 150 |
| M2XCH -2C4 | 2×4 | 0.9 | 1.2 | 12.2 | 195 |
| M2XCH -2C6 | 2×6 | 0.9 | 1.2 | 13.7 | 275 |
| M2XCH -2C10 | 2×10 | 0.9 | 1.3 | 15.7 | 385 |
| M2XCH -2C16 | 2×16 | 0.9 | 1.4 | 18.4 | 595 |
| M2XCH -2C25 | 2×25 | 0.9 | 1.5 | 21.3 | 820 |
| M2XCH -2C35 | 2×35 | 0.9 | 1.5 | 23.9 | 1140 |
| M2XCH -2C50 | 2×50 | 1.0 | 1.5 | 26.7 | 1500 |
| M2XCH -3C1.5(3G1.5) | 3×(G)1.5 | 0.7 | 1.1 | 9.8 | 145 |
| M2XCH -3C2.5(3G2.5) | 3×(G)2.5 | 0.7 | 1.1 | 10.7 | 180 |
| M2XCH -3C4 | 3×4 | 0.9 | 1.2 | 12.9 | 245 |
| M2XCH -3C6 | 3×6 | 0.9 | 1.3 | 14.7 | 345 |
| M2XCH -3C10 | 3×10 | 0.9 | 1.3 | 16.6 | 490 |
| M2XCH -3C16 | 3×16 | 0.9 | 1.4 | 19.5 | 755 |
| M2XCH -3C25 | 3×25 | 0.9 | 1.6 | 22.7 | 1095 |
| M2XCH -3C35 | 3×35 | 0.9 | 1.6 | 24.9 | 1340 |
| M2XCH -3C35S | 3×35 (sector shaped) | 0.9 | 1.6 | 22.0 | 1320 |
| M2XCH -3C50 | 3×50 | 1.0 | 1.6 | 27.1 | 1750 |
| M2XCH -3C50S | 3×50 (sector shaped) | 1.0 | 1.6 | 24.8 | 1820 |
| M2XCH -3C70S | 3×70 (sector shaped) | 1.1 | 2.0 | 29.7 | 2575 |
| M2XCH -3C95S | 3×95 (sector shaped) | 1.1 | 2.1 | 33.1 | 3435 |
| M2XCH -3C120S | 3×120 (sector shaped) | 1.2 | 2.2 | 36.0 | 4070 |
| M2XCH -3C150S | 3×150 (sector shaped) | 1.4 | 2.4 | 40.9 | 5435 |
| M2XCH -4C1.5(4G1.5) | 4×(G)1.5 | 0.7 | 1.1 | 10.5 | 170 |
| M2XCH -4C2.5(4G2.5) | 4×(G)2.5 | 0.7 | 1.2 | 11.8 | 225 |
| M2XCH -4C4 | 4×4 | 0.9 | 1.3 | 14.7 | 335 |
| M2XCH -4C6 | 4×6 | 0.9 | 1.3 | 16.0 | 425 |
| M2XCH -4C10 | 4×10 | 0.9 | 1.4 | 18.3 | 625 |
| M2XCH -4C16 | 4×16 | 0.9 | 1.5 | 21.5 | 935 |
| M2XCH -4C25 | 4×25 | 0.9 | 1.6 | 24.4 | 1345 |
| M2XCH -4C35 | 4×35 | 0.9 | 1.7 | 27.5 | 1715 |
| M2XCH -4C35S | 4×35 (sector shaped) | 0.9 | 1.7 | 24.3 | 1700 |
| M2XCH -4C50 | 4×50 | 1.0 | 1.6 | 29.9 | 2400 |
| M2XCH -4C50S | 4×50(sector shaped) | 1.0 | 1.6 | 27.3 | 2300 |
| M2XCH -4C70S | 4×70(sector shaped) | 1.1 | 2.1 | 32.8 | 3250 |
| M2XCH -4C95S | 4×95(sector shaped) | 1.1 | 2.2 | 37.3 | 4390 |
| M2XCH -5C1.5(5G1.5) | 5×(G)1.5 | 0.7 | 1.2 | 11.7 | 205 |
| M2XCH -5C2.5(5G2.5) | 5×(G)2.5 | 0.7 | 1.2 | 12.8 | 265 |
| M2XCH -5G4 | 5G4 | 0.9 | 1.2 | 15.2 | 360 |
| M2XCH -6C1.5 | 6×1.5 | 0.7 | 1.2 | 12.7 | 240 |
| M2XCH -7C1.5 | 7×1.5 | 0.7 | 1.2 | 12.7 | 260 |
| M2XCH -8C1.5 | 8×1.5 | 0.7 | 1.2 | 15.5 | 340 |
| M2XCH -10C1.5 | 10×1.5 | 0.7 | 1.3 | 16.2 | 390 |
| M2XCH -12C1.5 | 12×1.5 | 0.7 | 1.4 | 16.9 | 440 |
| M2XCH -16C1.5 | 16×1.5 | 0.7 | 1.4 | 18.6 | 550 |
| M2XCH -19C1.5 | 19×1.5 | 0.7 | 1.5 | 19.7 | 620 |
| M2XCH -24C1.5 | 24×1.5 | 0.7 | 1.6 | 22.9 | 800 |
| M2XCH -5C2.5 | 5×2.5 | 0.7 | 1.2 | 12.9 | 290 |
| M2XCH -7C2.5 | 7×2.5 | 0.7 | 1.2 | 14.6 | 390 |
| M2XCH -12C2.5 | 12×2.5 | 0.7 | 1.4 | 18.7 | 610 |
| M2XCH -19C2.5 | 19×2.5 | 0.7 | 1.5 | 21.8 | 870 |
| M2XCH -24C2.5 | 24×2.5 | 0.7 | 1.6 | 25.6 | 1100 |
| M2XCH -27C2.5 | 27×2.5 | 0.7 | 1.7 | 26.1 | 1200 |
| M2XCH -37C2.5 | 37×2.5 | 0.7 | 1.9 | 29.2 | 1560 |
