M2XCYSY 0.6/1 kV XLPE Insulated, PVC Sheathed Armored Flame Retardant Power & Control Cables (Multicore)
Applications
These cables are used as fixed installation cables in various electromechanical and electronic equipments of marine vehicle.Usable at all conditions in marine environment such as dry, wet or oily locations. The copper overall screen can reduce the electromagnetic interference. Galvanized steel wire braided shield provides protection against mechanical stress and rodents. Due to its' flame retardant feature, it prevents the fire from spreading around. Thus it protects human life and equipment, during a fire.
Standards
- IEC 60092-350/351/353/359
- IEC 60092-353
- IEC 60332-1
- IEC 60332-3

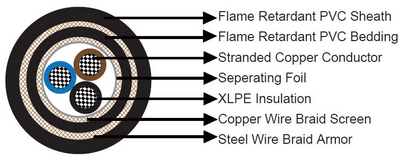

Construction
| Conductors | Class 2 stranded copper conductor. (Class 5 is upon request) |
| Insulation | Halogen-free, flame retardant, cross linked polyethylene compound. |
| Seperator | Seperating foil. |
| Overall Screen | Copper wire braided. |
| Bedding | F lame retardant and oil resistant PVC based compound (ST2). |
| Armor | Galvanized steel wire braided. |
| Outer Sheath | Flame retardant and oil resistant PVC based compound (ST2). Black or grey. |
Core Identification
| Two cores | Blue, Brown. |
| Three cores | Brown, Black, Grey. |
| Four cores | Blue, Brown, Black, Grey. |
| Five cores | Blue, Brown, Black, Grey, Black. |
| Multi cores | White with black numbers. |
| With yellow/green (optional) | |
| Two cores + earth (3G) | Yellow/green, Blue, Brown. |
| Three cores + earth (4G) | Yellow/green, Brown, Black, Grey. |
| Four cores + earth (5G) | Yellow/green, Blue, Brown, Black, Grey. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations | 6×OD |
| Temperature Range | -20℃ ~ +90℃ |
Dimensions and Weight
| Part No. | Construction No. of elements×No. of cores in element×Cross section | Nominal Insulation Thickness | Nominal Bedding Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
| mm^2 | mm | mm | mm | mm | kg/km | |
| M2XCYSY-2C1.0 | 2×1.0 | 0.7 | 1.0 | 1.1 | 12.4 | 310 |
| M2XCYSY-4C1.0 | 4×1.0 | 0.7 | 1.0 | 1.1 | 13.8 | 390 |
