M2XH-FFR 0.6/1 kV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Power & Control Cables (Multicore)
Applications
These unarmoured fire resistant cables are used on board of ships in all locations for fixed installations where cable protection is not required. These cables are fire resistant, flame retardant, low smoke & halogen free.
Standards
- IEC 60092-350/351/353/359
- IEC 60331-21
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

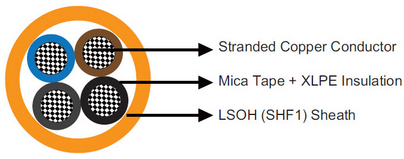

Construction
| Conductors | Class 2 stranded copper conductor. |
| Class 5 stranded conductors can be offered upon request. | |
| Insulation | Mica tape + XLPE. |
| Outer Sheath | LSOH (SHF1). |
Core Identification
| Two cores | Blue, Brown. |
| Three cores | Brown, Black, Grey. |
| Four cores | Blue, Brown, Black, Grey. |
| Five cores | Blue, Brown, Black, Grey, Black. |
| Multi cores | White with black numbers. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations | 6×OD (OD>25mm); 4×OD (OD ≤25mm) |
| Temperature Range | -30℃ ~ +80℃ |
Dimensions and Weight
M2XH-FFR Multicore 0.6/1kV
| Part No. | Construction No. of elements×No. of cores in element×Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
| mm^2 | mm | mm | mm | kg/km | |
| M2XH-FFR -2C1.5 | 2×1.5 | 0.7 | 1.1 | 8.5 | 85 |
| M2XH-FFR -2C2.5 | 2×2.5 | 0.7 | 1.1 | 9.5 | 110 |
| M2XH-FFR -2C4 | 2×4 | 0.9 | 1.1 | 11.7 | 140 |
| M2XH-FFR -2C6 | 2×6 | 0.9 | 1.2 | 13.0 | 230 |
| M2XH-FFR -2C10 | 2×10 | 0.9 | 1.2 | 14.7 | 330 |
| M2XH-FFR -2C16 | 2×16 | 0.9 | 1.3 | 17.0 | 490 |
| M2XH-FFR -2C25 | 2×25 | 0.9 | 1.3 | 19.5 | 750 |
| M2XH-FFR -2C35 | 2×35 | 0.9 | 1.5 | 22.0 | 990 |
| M2XH-FFR -2C50 | 2×50 | 1.0 | 1.5 | 24.8 | 1340 |
| M2XH-FFR -3C1.5 | 3×1.5 | 0.7 | 1.1 | 9.5 | 105 |
| M2XH-FFR -3C2.5 | 3×2.5 | 0.7 | 1.1 | 10.0 | 145 |
| M2XH-FFR -3C4 | 3×4 | 0.9 | 1.2 | 12.7 | 205 |
| M2XH-FFR -3C6 | 3×6 | 0.9 | 1.2 | 13.9 | 270 |
| M2XH-FFR -3C10 | 3×10 | 0.9 | 1.3 | 15.9 | 400 |
| M2XH-FFR -3C16 | 3×16 | 0.9 | 1.3 | 18.4 | 610 |
| M2XH-FFR -3C25 | 3×25 | 0.9 | 1.5 | 21.4 | 920 |
| M2XH-FFR -3C35 | 3×35 | 0.9 | 1.6 | 24.2 | 1330 |
| M2XH-FFR -3C50 | 3×50 | 1.0 | 1.7 | 27.5 | 1830 |
| M2XH-FFR -3C70 | 3×70 | 1.1 | 1.8 | 32.0 | 2570 |
| M2XH-FFR -3C70S | 3×70 (sector shaped) | 1.1 | 1.8 | 27.5 | 2370 |
| M2XH-FFR -3C95 | 3×95 | 1.1 | 1.9 | 36.4 | 3360 |
| M2XH-FFR -3C95S | 3×95 (sector shaped) | 1.1 | 1.9 | 31.1 | 3130 |
| M2XH-FFR -3C120 | 3×120 | 1.2 | 2.1 | 40.7 | 4180 |
| M2XH-FFR -3C120S | 3×120 (sector shaped) | 1.2 | 2.1 | 34.4 | 3930 |
| M2XH-FFR -4C1.5 | 4×1.5 | 0.7 | 1.1 | 10.0 | 135 |
| M2XH-FFR -4C2.5 | 4×2.5 | 0.7 | 1.1 | 11.2 | 180 |
| M2XH-FFR -4C4 | 4×4 | 0.9 | 1.2 | 13.9 | 260 |
| M2XH-FFR -4C6 | 4×6 | 0.9 | 1.2 | 15.2 | 350 |
| M2XH-FFR -4C10 | 4×10 | 0.9 | 1.3 | 17.4 | 530 |
| M2XH-FFR -4C16 | 4×16 | 0.9 | 1.4 | 20.2 | 800 |
| M2XH-FFR -4C25 | 4×25 | 0.9 | 1.5 | 23.5 | 1230 |
| M2XH-FFR -4C35 | 4×35 | 0.9 | 1.7 | 26.7 | 1650 |
| M2XH-FFR -5C1.5 | 5×1.5 | 0.7 | 1.1 | 11.0 | 170 |
| M2XH-FFR -7C1.5 | 7×1.5 | 0.7 | 1.2 | 12.6 | 210 |
| M2XH-FFR -12C1.5 | 12×1.5 | 0.7 | 1.3 | 16.5 | 350 |
| M2XH-FFR -19C1.5 | 19×1.5 | 0.7 | 1.4 | 19.6 | 520 |
| M2XH-FFR -27C1.5 | 27×1.5 | 0.7 | 1.5 | 23.3 | 730 |
| M2XH-FFR -37C1.5 | 37×1.5 | 0.7 | 1.6 | 26.3 | 980 |
| M2XH-FFR -5C2.5 | 5×2.5 | 0.7 | 1.2 | 12.5 | 240 |
| M2XH-FFR -7C2.5 | 7×2.5 | 0.7 | 1.2 | 14.1 | 300 |
| M2XH-FFR -12C2.5 | 12×2.5 | 0.7 | 1.3 | 18.6 | 490 |
| M2XH-FFR -19C2.5 | 19×2.5 | 0.7 | 1.4 | 22.1 | 750 |
| M2XH-FFR -27C2.5 | 27×2.5 | 0.7 | 1.5 | 26.4 | 1060 |
