MRE-2X(St)H 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)
Applications
These cables are used on board of ships at all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- IEC 60092-350/351/376/359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034
Construction

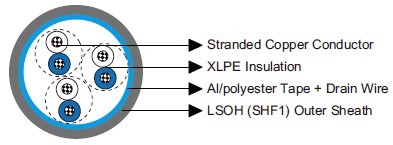

H.jpg)
| Conductors |
Class 2 stranded copper conductor. |
| Insulation |
XLPE. |
| Cabling Element |
Pair/Triple. |
| Overall Screen |
Al/polyester tape |
| Drain Wire |
Tinned copper wire.
|
| Outer Sheath |
LSOH (SHF1).SHF2 can be offered upon request. |
Core Identification
| Pair |
White/blue with printed pair number and core number. |
| Triple |
White/blue/red with printed triple number. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6×OD |
| Temperature Range |
-30℃ ~ +80℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm^2 |
mm |
mm |
mm |
kg/km |
| MRE-2X(St)H-2P0.5 |
2×2×0.5 |
0.4 |
1.0 |
8.5 |
75 |
| MRE-2X(St)H-4P0.5 |
4×2×0.5 |
0.4 |
1.1 |
10.0 |
110 |
| MRE-2X(St)H-7P0.5 |
7×2×0.5 |
0.4 |
1.1 |
12.0 |
160 |
| MRE-2X(St)H-10P0.5 |
10×2×0.5 |
0.4 |
1.2 |
15.0 |
225 |
| MRE-2X(St)H-14P0.5 |
14×2×0.5 |
0.4 |
1.3 |
16.5 |
290 |
| MRE-2X(St)H-19P0.5 |
19×2×0.5 |
0.4 |
1.3 |
18.0 |
370 |
| MRE-2X(St)H-24P0.5 |
24×2×0.5 |
0.4 |
1.4 |
20.5 |
460 |
| MRE-2X(St)H-1P0.75 |
1×2×0.75 |
0.5 |
1.0 |
6.9 |
60 |
| MRE-2X(St)H-2P0.75 |
2×2×0.75* |
0.5 |
1.0 |
7.8 |
80 |
| MRE-2X(St)H-3P0.75 |
3×2×0.75 |
0.5 |
1.1 |
10.8 |
130 |
| MRE-2X(St)H-4P0.75 |
4×2×0.75 |
0.5 |
1.2 |
11.7 |
160 |
| MRE-2X(St)H-7P0.75 |
7×2×0.75 |
0.5 |
1.3 |
14.1 |
240 |
| MRE-2X(St)H-8P0.75 |
8×2×0.75 |
0.5 |
1.3 |
15.0 |
270 |
| MRE-2X(St)H-10P0.75 |
10×2×0.75 |
0.5 |
1.4 |
16.9 |
320 |
| MRE-2X(St)H-12P07.5 |
12×2×0.75 |
0.5 |
1.4 |
17.6 |
360 |
| MRE-2X(St)H-14P0.75 |
14×2×0.75 |
0.5 |
1.4 |
18.3 |
410 |
| MRE-2X(St)H-16P0.75 |
16×2×0.75 |
0.5 |
1.5 |
19.8 |
470 |
| MRE-2X(St)H-19P0.75 |
19×2×0.75 |
0.5 |
1.5 |
20.7 |
530 |
| MRE-2X(St)H-24P0.75 |
24×2×0.75 |
0.5 |
1.6 |
23.5 |
670 |
| MRE-2X(St)H-30P0.75 |
30×2×0.75 |
0.5 |
1.7 |
26.3 |
820 |
| MRE-2X(St)H-32P0.75 |
32×2×0.75 |
0.5 |
1.7 |
26.8 |
860 |
| MRE-2X(St)H-37P0.75 |
37×2×0.75 |
0.5 |
1.8 |
28.3 |
990 |
| MRE-2X(St)H-1P1.0 |
1×2×1.0 |
0.5 |
1.0 |
7.3 |
70 |
| MRE-2X(St)H-2P1.0 |
2×2×1.0* |
0.5 |
1.0 |
8.3 |
100 |
| MRE-2X(St)H-3P1.0 |
3×2×1.0 |
0.5 |
1.2 |
11.8 |
160 |
| MRE-2X(St)H-4P1.0 |
4×2×1.0 |
0.5 |
1.2 |
12.5 |
190 |
| MRE-2X(St)H-7P1.0 |
7×2×1.0 |
0.5 |
1.3 |
15.1 |
290 |
| MRE-2X(St)H-8P1.0 |
8×2×1.0 |
0.5 |
1.3 |
16.1 |
320 |
| MRE-2X(St)H-10P1.0 |
10×2×1.0 |
0.5 |
1.4 |
18.2 |
390 |
| MRE-2X(St)H-12P1.0 |
12×2×1.0 |
0.5 |
1.4 |
18.9 |
450 |
| MRE-2X(St)H-14P1.0 |
14×2×1.0 |
0.5 |
1.5 |
19.8 |
510 |
| MRE-2X(St)H-16P1.0 |
16×2×1.0 |
0.5 |
1.5 |
21.3 |
570 |
| MRE-2X(St)H-19P1.0 |
19×2×1.0 |
0.5 |
1.6 |
22.4 |
670 |
| MRE-2X(St)H-24P1.0 |
24×2×1.0 |
0.5 |
1.7 |
25.5 |
830 |
| MRE-2X(St)H-30P1.0 |
30×2×1.0 |
0.5 |
1.8 |
28.6 |
1030 |
| MRE-2X(St)H-32P1.0 |
32×2×1.0 |
0.5 |
1.8 |
29.1 |
1080 |
| MRE-2X(St)H-37P1.0 |
37×2×1.0 |
0.5 |
1.9 |
30.7 |
1230 |
| MRE-2X(St)H-1P1.5 |
1×2×1.5 |
0.6 |
1.0 |
8.3 |
90 |
| MRE-2X(St)H-2P1.5 |
2×2×1.5* |
0.6 |
1.1 |
9.7 |
140 |
| MRE-2X(St)H-3P1.5 |
3×2×1.5 |
0.6 |
1.2 |
13.6 |
210 |
| MRE-2X(St)H-4P1.5 |
4×2×1.5 |
0.6 |
1.3 |
14.7 |
260 |
| MRE-2X(St)H-7P1.5 |
7×2×1.5 |
0.6 |
1.4 |
17.8 |
400 |
| MRE-2X(St)H-8P1.5 |
8×2×1.5 |
0.6 |
1.4 |
19.0 |
450 |
| MRE-2X(St)H-10P1.5 |
10×2×1.5 |
0.6 |
1.5 |
21.5 |
540 |
| MRE-2X(St)H-12P1.5 |
12×2×1.5 |
0.6 |
1.6 |
22.6 |
630 |
| MRE-2X(St)H-14P1.5 |
14×2×1.5 |
0.6 |
1.6 |
23.4 |
710 |
| MRE-2X(St)H-16P1.5 |
16×2×1.5 |
0.6 |
1.7 |
25.4 |
820 |
| MRE-2X(St)H-19P1.5 |
19×2×1.5 |
0.6 |
1.7 |
26.5 |
930 |
| MRE-2X(St)H-24P1.5 |
24×2×1.5 |
0.6 |
1.9 |
30.4 |
1180 |
| MRE-2X(St)H-30P1.5 |
30×2×1.5 |
0.6 |
2.0 |
34.1 |
1460 |
| MRE-2X(St)H-32P1.5 |
32×2×1.5 |
0.6 |
2.0 |
34.7 |
1540 |
| MRE-2X(St)H-37P1.5 |
37×2×1.5 |
0.6 |
2.1 |
36.6 |
1760 |
| MRE-2X(St)H-1T0.75 |
1×3×0.75 |
0.5 |
1.0 |
7.2 |
70 |
| MRE-2X(St)H-2T0.75 |
2×3×0.75 |
0.5 |
1.1 |
11.0 |
130 |
| MRE-2X(St)H-3T0.75 |
3×3×0.75 |
0.5 |
1.2 |
11.8 |
170 |
| MRE-2X(St)H-4T0.75 |
4×3×0.75 |
0.5 |
1.2 |
12.9 |
210 |
| MRE-2X(St)H-7T0.75 |
7×3×0.75 |
0.5 |
1.3 |
16.2 |
330 |
| MRE-2X(St)H-8T0.75 |
8×3×0.75 |
0.5 |
1.4 |
17.5 |
380 |
| MRE-2X(St)H-10T0.75 |
10×3×0.75 |
0.5 |
1.5 |
19.9 |
460 |
| MRE-2X(St)H-12T07.5 |
12×3×0.75 |
0.5 |
1.5 |
20.9 |
520 |
| MRE-2X(St)H-14T0.75 |
14×3×0.75 |
0.5 |
1.5 |
21.8 |
590 |
| MRE-2X(St)H-16T0.75 |
16×3×0.75 |
0.5 |
1.6 |
23.3 |
670 |
| MRE-2X(St)H-19T0.75 |
19×3×0.75 |
0.5 |
1.7 |
25.3 |
790 |
| MRE-2X(St)H-24T0.75 |
24×3×0.75 |
0.5 |
1.8 |
28.1 |
980 |
| MRE-2X(St)H-30T0.75 |
30×3×0.75 |
0.5 |
1.9 |
31.1 |
1200 |
| MRE-2X(St)H-32T0.75 |
32×3×0.75 |
0.5 |
1.9 |
32.2 |
1270 |
| MRE-2X(St)H-37T0.75 |
37×3×0.75 |
0.5 |
2.0 |
33.9 |
1450 |
| MRE-2X(St)H-1T1.0 |
1×3×1.0 |
0.5 |
1.0 |
7.7 |
80 |
| MRE-2X(St)H-2T1.0 |
2×3×1.0 |
0.5 |
1.2 |
12.1 |
160 |
| MRE-2X(St)H-3T1.0 |
3×3×1.0 |
0.5 |
1.2 |
12.8 |
200 |
| MRE-2X(St)H-4T1.0 |
4×3×1.0 |
0.5 |
1.3 |
14.2 |
260 |
| MRE-2X(St)H-7T1.0 |
7×3×1.0 |
0.5 |
1.4 |
17.8 |
410 |
| MRE-2X(St)H-8T1.0 |
8×3×1.0 |
0.5 |
1.4 |
19.0 |
460 |
| MRE-2X(St)H-10T1.0 |
10×3×1.0 |
0.5 |
1.5 |
21.6 |
560 |
| MRE-2X(St)H-12T1.0 |
12×3×1.0 |
0.5 |
1.6 |
23.0 |
660 |
| MRE-2X(St)H-14T1.0 |
14×3×1.0 |
0.5 |
1.6 |
24.0 |
740 |
| MRE-2X(St)H-16T1.0 |
16×3×1.0 |
0.5 |
1.7 |
25.6 |
840 |
| MRE-2X(St)H-19T1.0 |
19×3×1.0 |
0.5 |
1.8 |
27.8 |
990 |
| MRE-2X(St)H-24T1.0 |
24×3×1.0 |
0.5 |
1.9 |
30.8 |
1230 |
| MRE-2X(St)H-30T1.0 |
30×3×1.0 |
0.5 |
2.0 |
34.2 |
1510 |
| MRE-2X(St)H-32T1.0 |
32×3×1.0 |
0.5 |
2.0 |
35.4 |
1600 |
| MRE-2X(St)H-37T1.0 |
37×3×1.0 |
0.5 |
2.1 |
37.3 |
1830 |
| MRE-2X(St)H-1T1.5 |
1×3×1.5 |
0.6 |
1.1 |
8.9 |
110 |
| MRE-2X(St)H-2T1.5 |
2×3×1.5 |
0.6 |
1.2 |
13.8 |
210 |
| MRE-2X(St)H-3T1.5 |
3×3×1.5 |
0.6 |
1.3 |
14.9 |
280 |
| MRE-2X(St)H-4T1.5 |
4×3×1.5 |
0.6 |
1.3 |
16.3 |
350 |
| MRE-2X(St)H-7T1.5 |
7×3×1.5 |
0.6 |
1.5 |
20.8 |
570 |
| MRE-2X(St)H-8T1.5 |
8×3×1.5 |
0.6 |
1.6 |
22.4 |
660 |
| MRE-2X(St)H-10T1.5 |
10×3×1.5 |
0.6 |
1.7 |
25.5 |
790 |
| MRE-2X(St)H-12T1.5 |
12×3×1.5 |
0.6 |
1.7 |
26.9 |
920 |
| MRE-2X(St)H-14T1.5 |
14×3×1.5 |
0.6 |
1.8 |
28.3 |
1050 |
| MRE-2X(St)H-16T1.5 |
16×3×1.5 |
0.6 |
1.8 |
30.0 |
1180 |
| MRE-2X(St)H-19T1.5 |
19×3×1.5 |
0.6 |
1.9 |
32.5 |
1390 |
| MRE-2X(St)H-24T1.5 |
24×3×1.5 |
0.6 |
2.1 |
36.3 |
1740 |
| MRE-2X(St)H-30T1.5 |
30×3×1.5 |
0.6 |
2.2 |
40.3 |
2150 |
| MRE-2X(St)H-32T1.5 |
32×3×1.5 |
0.6 |
2.3 |
41.9 |
2300 |
| MRE-2X(St)H-37T1.5 |
37×3×1.5 |
0.6 |
2.4 |
44.1 |
2620 |
