MRE-2XCH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multicore)
Applications
These armoured cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- IEC 60092-350/351/376/359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

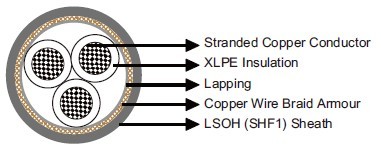

Construction
| Conductors | Class 2 stranded copper conductor. |
| Insulation | XLPE. |
| Inner Covering | Lapping. |
| Armour | Copper wire braid. |
| Outer Sheath | LSOH (SHF1).SHF2 can be offered upon request. |
Core Identification
White with printed number.
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations | 6×OD |
| Temperature Range | -30℃ ~ +80℃ |
Dimensions and Weight
| Part No. | Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
| mm^2) | mm | mm | mm | kg/km | |
| MRE-2XCH-2C0.75 | 2×0.75 | 0.5 | 1.2 | 7.2 | 80 |
| MRE-2XCH-3C0.75 | 3×0.75 | 0.5 | 1.2 | 7.5 | 90 |
| MRE-2XCH-5C0.75 | 5×0.75 | 0.5 | 1.4 | 8.9 | 130 |
| MRE-2XCH-7C0.75 | 7×0.75 | 0.5 | 1.6 | 9.8 | 150 |
| MRE-2XCH-12C0.75 | 12×0.75 | 0.5 | 1.7 | 12.4 | 230 |
| MRE-2XCH-19C0.75 | 19×0.75 | 0.5 | 1.9 | 14.6 | 320 |
| MRE-2XCH-27C0.75 | 27×0.75 | 0.5 | 2.1 | 17.3 | 460 |
| MRE-2XCH-37C0.75 | 37×0.75 | 0.5 | 2.2 | 19.3 | 590 |
| MRE-2XCH-2C1.0 | 2×1.0 | 0.5 | 1.4 | 7.9 | 90 |
| MRE-2XCH-3C1.0 | 3×1.0 | 0.5 | 1.4 | 8.3 | 100 |
| MRE-2XCH-5C1.0 | 5×1.0 | 0.5 | 1.5 | 9.7 | 150 |
| MRE-2XCH-7C1.0 | 7×1.0 | 0.5 | 1.6 | 10.4 | 180 |
| MRE-2XCH-12C1.0 | 12×1.0 | 0.5 | 1.8 | 13.2 | 270 |
| MRE-2XCH-19C1.0 | 19×1.0 | 0.5 | 2.1 | 15.9 | 420 |
| MRE-2XCH-27C1.0 | 27×1.0 | 0.5 | 2.2 | 18.4 | 560 |
| MRE-2XCH-37C1.0 | 37×1.0 | 0.5 | 2.4 | 20.7 | 710 |
