MRE-M3GCH 150/250V Mica Tape + HEPR Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Instrumentation & Control Cables (Multipair)
Applications
These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- DIN 89159
- IEC 60092-351/375/359
- IEC 60331-21
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

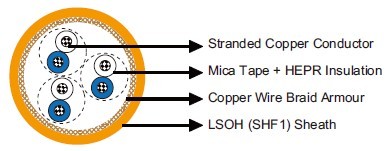

Construction
| Conductors |
Stranded copper conductor. |
| Insulation |
Mica tape + HEPR. |
| Cabling Element |
Pair. |
| Armour |
Copper wire braid. |
| Outer Sheath |
LSOH (SHF1). |
Core Identification
| Pair |
White/blue with printed pair number and core number.
|
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6×OD |
| Temperature Range |
-30℃ ~ +75℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm^2 |
mm |
mm |
mm |
kg/km |
| MRE-M3GCH-1P0.75 |
1×2×0.75 |
0.5 |
1.2 |
10.5 |
110 |
| MRE-M3GCH-2P0.75 |
2×2×0.75* |
0.5 |
1.3 |
11.0 |
150 |
| MRE-M3GCH-4P0.75 |
4×2×0.75 |
0.5 |
1.4 |
16.0 |
270 |
| MRE-M3GCH-7P0.75 |
7×2×0.75 |
0.5 |
1.8 |
19.0 |
400 |
| MRE-M3GCH-10P0.75 |
10×2×0.75 |
0.5 |
1.9 |
22.0 |
560 |
| MRE-M3GCH-14P0.75 |
14×2×0.75 |
0.5 |
2.0 |
27.0 |
740 |
| MRE-M3GCH-19P0.75 |
19×2×0.75 |
0.5 |
2.1 |
29.0 |
930 |
| MRE-M3GCH-24P0.75 |
24×2×0.75 |
0.5 |
2.2 |
31.0 |
1110 |
*: 2 pairs are assembled as a quad.
