IEC60092 STANDARD Offshore & Marine Cables |
![](../../images/sl_ModulTitle2.gif) |
![](../control cable/Cable factory NEGOTINO.files/pix.gif) |
MariLan Marine Lan Data & Communication Cables
Order Code

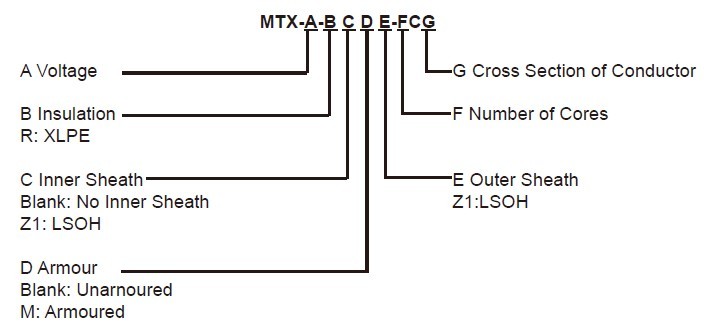

MariTox Marine Flame Retardant Medium Voltage Cables
![](Code1.jpg)

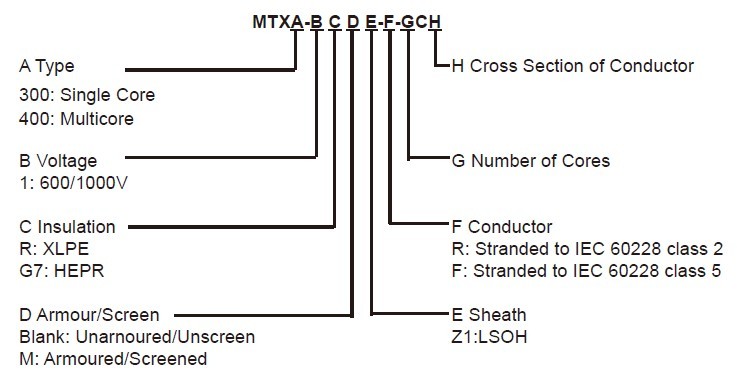

MariTox Marine Flame Retardant Power & Control Cables
![](Code2.jpg)

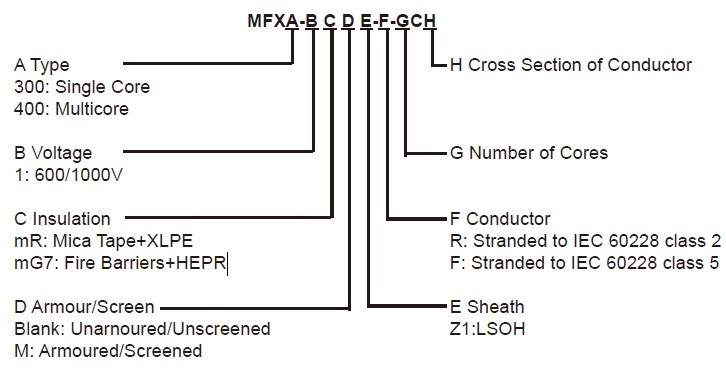

MariFlex Marine Fire Resistant Power & Control Cables
![](Code3.jpg)

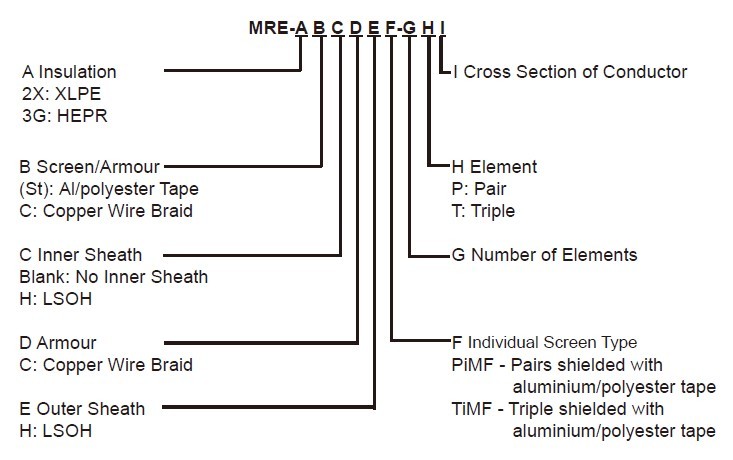

MariSig Flame Retardant Instrumentation & Control Cables
![](Code4.jpg)

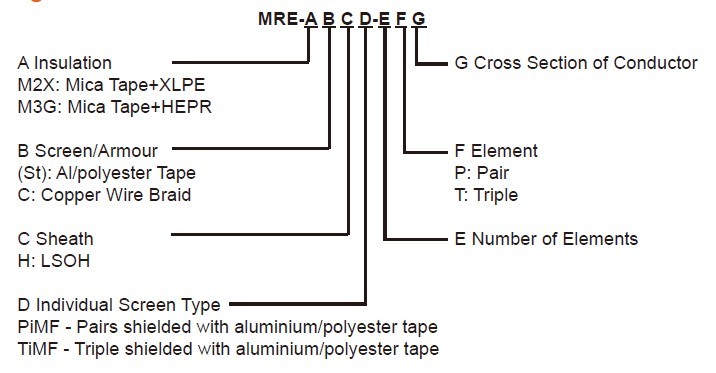

MariSig Fire Resistant Instrumentation & Control Cables
![](Code5.jpg)

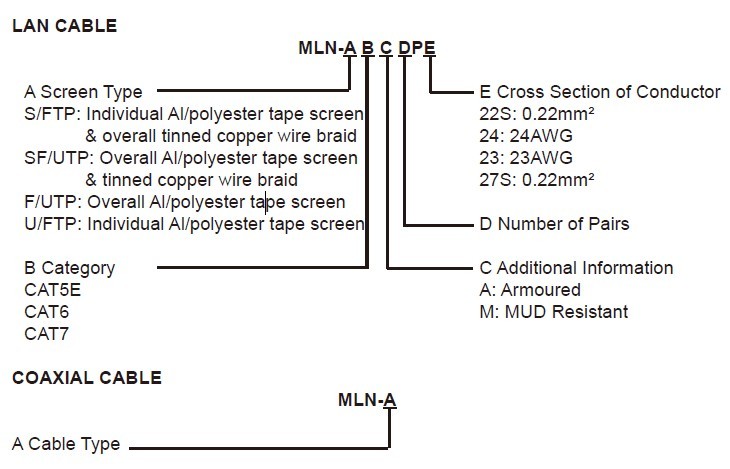

MariLan Marine Lan Data & Communication Cables
![](Code6.jpg)
![](Code7.jpg)
OPTICAL FIBER CABLE
MLN-BTA-X-N-H-F-H-CD-A
Semi-tight buffered (CD) breakout cable (BT) with halogen free & flame-retardant subcable
sheath (H), FRP central member (F), SHF1 sheath (H) and aramid strain relief elements.
MLN-MTA-X-N-H-F-H-CD/VT-A
Semi tight buffered (CD) or tight buffered (VT) distribution cable (MT) with halogen free& flame-retardant subcable sheath (H), FRP central member (F), SHF1 sheath (H) and aramid
strain relief elements.
MLN-MTA-X-N-H-VT-G
Tight buffered (VT) distribution cable (MT) with LSOH & FR compound sheath (H) and
fiberglass yarn reinforcing elements (G).
MLN-CLA-X-N-H-J-G
Central loose tube cable (CL) with water blocking gel in tubes (J), LSOH & FR compound
sheath (H) and fiberglass yarn reinforcing elements (G).
MLN-FCLA-X-N-H-J
Fire resistant (F) central loose tube cable (CL) with water blocking gel in tubes (J) and
SHF1 sheath (H).
X: Fiber type (0=Fiber and copper conductors in cable 4=50/125 multi-mode fiber (OM3);
5=50/125 multi-mode fiber (OM2); 6=50/125 multi-mode fiber (OM1); 7=NZDS SM fiber per
G.656.; 8=NZDS SM fiber per G.655.; 9=Standard SM fiber per G.652.D). N: No. of Fibers.
|
