(FA-)SPYC, SPYCB, TPYC
(FA-)SPYCY, SPYCBY, TPYCY
Standards
JISC 3410-1999
IEC 60092-350
IEC 60092-354
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

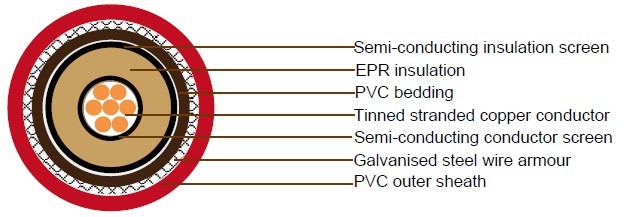

Cable Construction
Conductor |
T(S) |
Tinned annealed stranded copper, class 2 according to IEC 60228 |
Conductor screen |
|
Semi-conducting compound |
Insulation |
P |
85°C EPR as per IEC 60092-351 |
Insulation screen |
|
Semi-conducting compound /Tinned copper tape |
Filler |
|
Non-hygroscopic material (If necessary) |
Bedding |
Y |
PVC,ST2 type |
Armor |
C |
Galvanized steel wire braid(-C TYPE) or |
Sheath |
Y |
PVC ST2 type |
Core identification |
|
3C Red, Yellow, Blue |
Outer sheath color |
|
Red |
Cable Parameter
3.6/6KV (FA-) SPYC, SPYCB
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-) SPYC, SPYCB | ||||
| Size | Construction | O.D | Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
10 |
7/1.35 |
4.05 |
2.5 |
1.3 |
15.8 |
0.3 |
17.4 |
0.9 |
480 |
16 |
7/1.7 |
5.1 |
2.5 |
1.4 |
17.1 |
0.3 |
18.7 |
0.9 |
680 |
25 |
7/2.14 |
6.42 |
2.5 |
1.4 |
18.4 |
0.3 |
20 |
1 |
830 |
35 |
7/2.52 |
7.56 |
2.5 |
1.5 |
19.8 |
0.3 |
21.3 |
1.1 |
970 |
50 |
19/1.78 |
8.9 |
2.5 |
1.5 |
21.1 |
0.3 |
22.7 |
1.1 |
1160 |
70 |
19/2.14 |
10.7 |
2.5 |
1.6 |
23.1 |
0.3 |
24.7 |
1.2 |
1370 |
95 |
19/2.52 |
12.6 |
2.5 |
1.7 |
25.2 |
0.3 |
26.8 |
1.3 |
1740 |
120 |
37/2.03 |
14.2 |
2.5 |
1.7 |
26.8 |
0.3 |
28.4 |
1.4 |
2010 |
150 |
37/2.25 |
15.8 |
2.5 |
1.8 |
28.6 |
0.3 |
30.2 |
1.5 |
2450 |
185 |
37/2.52 |
17.6 |
2.5 |
1.9 |
30.7 |
0.4 |
32.8 |
1.6 |
2650 |
240 |
61/2.25 |
20.3 |
2.6 |
2 |
33.7 |
0.4 |
35.8 |
1.8 |
3200 |
300 |
61/2.52 |
22.7 |
2.8 |
2.1 |
36.8 |
0.4 |
38.9 |
1.9 |
4150 |
3.6/6KV (FA-) SPYCY, SPYCBY
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-) SPYCY, SPYCBY | |||||
| Size | Construction | O.D | Thick.of Sheath |
Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
10 |
7/1.35 |
4.05 |
2.5 |
1.3 |
15.8 |
0.3 |
1.1 |
19.8 |
1 |
580 |
16 |
7/1.7 |
5.1 |
2.5 |
1.4 |
17.1 |
0.3 |
1.1 |
21 |
1.1 |
780 |
25 |
7/2.14 |
6.42 |
2.5 |
1.4 |
18.4 |
0.3 |
1.1 |
22.3 |
1.1 |
950 |
35 |
7/2.52 |
7.56 |
2.5 |
1.5 |
19.8 |
0.3 |
1.1 |
23.7 |
1.2 |
1100 |
50 |
19/1.78 |
8.9 |
2.5 |
1.5 |
21.1 |
0.3 |
1.2 |
25.3 |
1.3 |
1300 |
70 |
19/2.14 |
10.7 |
2.5 |
1.6 |
23.1 |
0.3 |
1.2 |
27.3 |
1.4 |
1560 |
95 |
19/2.52 |
12.6 |
2.5 |
1.7 |
25.2 |
0.3 |
1.3 |
29.6 |
1.5 |
1890 |
120 |
37/2.03 |
14.2 |
2.5 |
1.7 |
26.8 |
0.3 |
1.3 |
31.2 |
1.6 |
2200 |
150 |
37/2.25 |
15.8 |
2.5 |
1.8 |
28.6 |
0.3 |
1.3 |
33 |
1.6 |
2720 |
185 |
37/2.52 |
17.6 |
2.5 |
1.9 |
30.7 |
0.4 |
1.4 |
35.8 |
1.8 |
2870 |
240 |
61/2.25 |
20.3 |
2.6 |
2 |
33.7 |
0.4 |
1.5 |
39 |
2 |
3450 |
300 |
61/2.52 |
22.7 |
2.8 |
2.1 |
36.8 |
0.4 |
1.5 |
42.1 |
2.1 |
4400 |
3.6/6KV (FA-)TPYC
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-)TPYC | ||||
| Size | Construction | O.D | Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
10 |
7/1.35 |
4.05 |
2.5 |
1.9 |
32.4 |
0.4 |
34.5 |
1.7 |
1180 |
16 |
7/1.7 |
5.1 |
2.5 |
2.0 |
34.8 |
0.4 |
36.9 |
1.8 |
1680 |
25 |
7/2.14 |
6.42 |
2.5 |
2.1 |
37.9 |
0.4 |
40.0 |
2.0 |
2130 |
35 |
7/2.52 |
7.56 |
2.5 |
2.2 |
40.6 |
0.4 |
42.7 |
2.1 |
2550 |
50 |
19/1.78 |
8.9 |
2.5 |
2.3 |
43.7 |
0.4 |
45.8 |
2.3 |
3130 |
70 |
19/2.14 |
10.7 |
2.5 |
2.5 |
47.9 |
0.4 |
50.0 |
2.5 |
3750 |
95 |
19/2.52 |
12.6 |
2.5 |
2.7 |
52.3 |
0.4 |
54.4 |
2.7 |
4880 |
120 |
37/2.03 |
14.21 |
2.5 |
2.8 |
56.1 |
0.4 |
58.2 |
2.9 |
5690 |
150 |
37/2.25 |
15.75 |
2.5 |
2.9 |
59.7 |
0.4 |
61.8 |
3.1 |
7100 |
185 |
37/2.52 |
17.64 |
2.5 |
3.1 |
64.1 |
0.4 |
66.2 |
3.3 |
8600 |
3.6/6KV (FA-) TPYCY
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-) TPYCY | |||||
| Size | Construction | O.D | Thick.of Sheath |
Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
10 |
7/1.35 |
4.05 |
2.5 |
1.3 |
15.8 |
0.3 |
1.1 |
19.8 |
1 |
580 |
16 |
7/1.7 |
5.1 |
2.5 |
1.4 |
17.1 |
0.3 |
1.1 |
21 |
1.1 |
780 |
25 |
7/2.14 |
6.42 |
2.5 |
1.4 |
18.4 |
0.3 |
1.1 |
22.3 |
1.1 |
950 |
35 |
7/2.52 |
7.56 |
2.5 |
1.5 |
19.8 |
0.3 |
1.1 |
23.7 |
1.2 |
1100 |
50 |
19/1.78 |
8.9 |
2.5 |
1.5 |
21.1 |
0.3 |
1.2 |
25.3 |
1.3 |
1300 |
70 |
19/2.14 |
10.7 |
2.5 |
1.6 |
23.1 |
0.3 |
1.2 |
27.3 |
1.4 |
1560 |
95 |
19/2.52 |
12.6 |
2.5 |
1.7 |
25.2 |
0.3 |
1.3 |
29.6 |
1.5 |
1890 |
120 |
37/2.03 |
14.2 |
2.5 |
1.7 |
26.8 |
0.3 |
1.3 |
31.2 |
1.6 |
2200 |
150 |
37/2.25 |
15.8 |
2.5 |
1.8 |
28.6 |
0.3 |
1.3 |
33 |
1.6 |
2720 |
185 |
37/2.52 |
17.6 |
2.5 |
1.9 |
30.7 |
0.4 |
1.4 |
35.8 |
1.8 |
2870 |
240 |
61/2.25 |
20.3 |
2.6 |
2 |
33.7 |
0.4 |
1.5 |
39 |
2 |
3450 |
300 |
61/2.52 |
22.7 |
2.8 |
2.1 |
36.8 |
0.4 |
1.5 |
42.1 |
2.1 |
4400 |
6/10KV (FA-) SPYC, SPYCB
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-) SPYC, SPYCB | ||||
| Size | Construction | O.D | Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
16 |
7/1.7 |
5.1 |
3.4 |
1.4 |
19.0 |
0.3 |
20.6 |
1.0 |
660 |
25 |
7/2.14 |
6.42 |
3.4 |
1.5 |
20.6 |
0.3 |
22.1 |
1.1 |
800 |
35 |
7/2.52 |
7.56 |
3.4 |
1.5 |
21.7 |
0.3 |
23.3 |
1.2 |
990 |
50 |
19/1.78 |
8.9 |
3.4 |
1.6 |
23.2 |
0.3 |
24.8 |
1.2 |
1200 |
70 |
19/2.14 |
10.7 |
3.4 |
1.7 |
25.3 |
0.3 |
26.8 |
1.3 |
1460 |
95 |
19/2.52 |
12.6 |
3.4 |
1.7 |
27.2 |
0.3 |
28.7 |
1.4 |
1800 |
120 |
37/2.03 |
14.21 |
3.4 |
1.7 |
28.8 |
0.3 |
30.3 |
1.5 |
2100 |
150 |
37/2.25 |
15.75 |
3.4 |
1.9 |
30.7 |
0.4 |
32.8 |
1.6 |
2600 |
185 |
37/2.52 |
17.64 |
3.4 |
1.9 |
32.6 |
0.4 |
34.7 |
1.7 |
2750 |
240 |
61/2.25 |
20.25 |
3.4 |
2.1 |
35.7 |
0.4 |
37.7 |
1.9 |
3300 |
300 |
61/2.52 |
22.68 |
3.4 |
2.1 |
38.1 |
0.4 |
40.2 |
2.0 |
4300 |
6/10KV (FA-) SPYCY, SPYCBY
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-) SPYCY, SPYCBY | |||||
| Size | Construction | O.D | Thick.of Sheath |
Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
16 |
7/1.7 |
5.1 |
3.4 |
1.4 |
19.0 |
0.3 |
1.1 |
22.9 |
1.1 |
870 |
25 |
7/2.14 |
6.42 |
3.4 |
1.5 |
20.6 |
0.3 |
1.2 |
24.7 |
1.2 |
980 |
35 |
7/2.52 |
7.56 |
3.4 |
1.5 |
21.7 |
0.3 |
1.2 |
25.8 |
1.3 |
1110 |
50 |
19/1.78 |
8.9 |
3.4 |
1.6 |
23.2 |
0.3 |
1.2 |
27.4 |
1.4 |
1360 |
70 |
19/2.14 |
10.7 |
3.4 |
1.7 |
25.3 |
0.3 |
1.3 |
29.6 |
1.5 |
1720 |
95 |
19/2.52 |
12.6 |
3.4 |
1.7 |
27.2 |
0.3 |
1.3 |
31.5 |
1.6 |
2080 |
120 |
37/2.03 |
14.21 |
3.4 |
1.7 |
28.8 |
0.3 |
1.4 |
33.3 |
1.7 |
2290 |
150 |
37/2.25 |
15.75 |
3.4 |
1.9 |
30.7 |
0.4 |
1.4 |
35.8 |
1.8 |
2810 |
185 |
37/2.52 |
17.64 |
3.4 |
1.9 |
32.6 |
0.4 |
1.5 |
37.9 |
1.9 |
2950 |
240 |
61/2.25 |
20.25 |
3.4 |
2.1 |
35.7 |
0.4 |
1.5 |
41.0 |
2.0 |
3550 |
300 |
61/2.52 |
22.68 |
3.4 |
2.1 |
38.1 |
0.4 |
1.6 |
43.6 |
2.2 |
4550 |
6/10KV (FA-)TPYC
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-)TPYC | ||||
| Size | Construction | O.D | Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
16 |
7/1.7 |
5.1 |
3.4 |
2.2 |
39.3 |
0.4 |
41.4 |
2.1 |
1950 |
25 |
7/2.14 |
6.42 |
3.4 |
2.3 |
42.4 |
0.4 |
44.5 |
2.2 |
2370 |
35 |
7/2.52 |
7.56 |
3.4 |
2.4 |
45.1 |
0.4 |
47.2 |
2.4 |
2950 |
50 |
19/1.78 |
8.9 |
3.4 |
2.5 |
48.2 |
0.4 |
50.3 |
2.5 |
3600 |
70 |
19/2.14 |
10.7 |
3.4 |
2.7 |
52.4 |
0.4 |
54.5 |
2.7 |
4350 |
95 |
19/2.52 |
12.6 |
3.4 |
2.8 |
56.8 |
0.4 |
58.9 |
2.9 |
5380 |
120 |
37/2.03 |
14.21 |
3.4 |
3.0 |
60.6 |
0.4 |
62.7 |
3.1 |
6200 |
150 |
37/2.25 |
15.75 |
3.4 |
3.1 |
64.2 |
0.4 |
66.3 |
3.3 |
7700 |
185 |
37/2.52 |
17.64 |
3.4 |
3.3 |
68.6 |
0.4 |
70.7 |
3.5 |
9200 |
6/10KV (FA-) TPYCY
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-) TPYCY | |||||
| Size | Construction | O.D | Thick.of Sheath |
Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
16 |
7/1.7 |
5.1 |
3.4 |
2.2 |
39.3 |
0.4 |
1.6 |
44.9 |
2.2 |
2590 |
25 |
7/2.14 |
6.42 |
3.4 |
2.3 |
42.4 |
0.4 |
1.7 |
48.2 |
2.4 |
2920 |
35 |
7/2.52 |
7.56 |
3.4 |
2.4 |
45.1 |
0.4 |
1.8 |
51.0 |
2.5 |
3330 |
50 |
19/1.78 |
8.9 |
3.4 |
2.5 |
48.2 |
0.4 |
1.9 |
54.3 |
2.7 |
4050 |
70 |
19/2.14 |
10.7 |
3.4 |
2.7 |
52.4 |
0.4 |
2.0 |
58.7 |
2.9 |
5130 |
95 |
19/2.52 |
12.6 |
3.4 |
2.8 |
56.8 |
0.4 |
2.1 |
63.4 |
3.2 |
6210 |
120 |
37/2.03 |
14.21 |
3.4 |
3.0 |
60.6 |
0.4 |
2.2 |
67.3 |
3.4 |
6860 |
150 |
37/2.25 |
15.75 |
3.4 |
3.1 |
64.2 |
0.4 |
2.3 |
71.1 |
3.6 |
8430 |
185 |
37/2.52 |
17.64 |
3.4 |
3.3 |
68.6 |
0.4 |
2.4 |
75.7 |
3.8 |
9990 |
8.7/15KV (FA-) SPYC, SPYCB
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-) SPYC, SPYCB | ||||
| Size | Construction | O.D | Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
25 |
7/2.14 |
6.42 |
4.5 |
1.6 |
23.1 |
0.3 |
24.7 |
1.2 |
790 |
35 |
7/2.52 |
7.56 |
4.5 |
1.6 |
24.3 |
0.3 |
25.8 |
1.3 |
1200 |
50 |
19/1.78 |
8.9 |
4.5 |
1.7 |
25.8 |
0.3 |
27.4 |
1.4 |
1370 |
70 |
19/2.14 |
10.7 |
4.5 |
1.8 |
27.8 |
0.3 |
29.4 |
1.5 |
1620 |
95 |
19/2.52 |
12.6 |
4.5 |
1.8 |
29.7 |
0.3 |
31.3 |
1.6 |
2010 |
120 |
37/2.03 |
14.21 |
4.5 |
1.9 |
31.6 |
0.4 |
33.6 |
1.7 |
2300 |
150 |
37/2.25 |
15.75 |
4.5 |
2.0 |
33.3 |
0.4 |
35.4 |
1.8 |
2780 |
185 |
37/2.52 |
17.64 |
4.5 |
2.0 |
35.2 |
0.4 |
37.3 |
1.9 |
2850 |
240 |
61/2.25 |
20.25 |
4.5 |
2.1 |
38.0 |
0.4 |
40.1 |
2.0 |
3450 |
300 |
61/2.52 |
22.68 |
4.5 |
2.2 |
40.7 |
0.4 |
42.7 |
2.1 |
4450 |
8.7/15KV (FA-) SPYCY, SPYCBY
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-) SPYCY, SPYCBY | |||||
| Size | Construction | O.D | Thick.of Sheath |
Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
25 |
7/2.14 |
6.42 |
4.5 |
1.6 |
23.1 |
0.3 |
1.2 |
27.3 |
1.4 |
920 |
35 |
7/2.52 |
7.56 |
4.5 |
1.6 |
24.3 |
0.3 |
1.3 |
28.6 |
1.4 |
1340 |
50 |
19/1.78 |
8.9 |
4.5 |
1.7 |
25.8 |
0.3 |
1.3 |
30.2 |
1.5 |
1550 |
70 |
19/2.14 |
10.7 |
4.5 |
1.8 |
27.8 |
0.3 |
1.3 |
32.2 |
1.6 |
1870 |
95 |
19/2.52 |
12.6 |
4.5 |
1.8 |
29.7 |
0.3 |
1.4 |
34.3 |
1.7 |
2290 |
120 |
37/2.03 |
14.21 |
4.5 |
1.9 |
31.6 |
0.4 |
1.4 |
36.6 |
1.8 |
2600 |
150 |
37/2.25 |
15.75 |
4.5 |
2.0 |
33.3 |
0.4 |
1.5 |
38.6 |
1.9 |
3050 |
185 |
37/2.52 |
17.64 |
4.5 |
2.0 |
35.2 |
0.4 |
1.5 |
40.5 |
2.0 |
3060 |
240 |
61/2.25 |
20.25 |
4.5 |
2.1 |
38.0 |
0.4 |
1.6 |
43.5 |
2.2 |
3690 |
300 |
61/2.52 |
22.68 |
4.5 |
2.2 |
40.7 |
0.4 |
1.7 |
46.4 |
2.3 |
4690 |
8.7/15KV (FA-)TPYC
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-)TPYC | ||||
| Size | Construction | O.D | Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
25 |
7/2.14 |
6.42 |
4.5 |
2.5 |
48.0 |
0.4 |
50.1 |
2.5 |
2350 |
35 |
7/2.52 |
7.56 |
4.5 |
2.6 |
50.6 |
0.4 |
52.7 |
2.6 |
3580 |
50 |
19/1.78 |
8.9 |
4.5 |
2.7 |
53.8 |
0.4 |
55.8 |
2.8 |
4110 |
70 |
19/2.14 |
10.7 |
4.5 |
2.9 |
58.0 |
0.4 |
60.0 |
3.0 |
4860 |
95 |
19/2.52 |
12.6 |
4.5 |
3.0 |
62.4 |
0.4 |
64.5 |
3.2 |
6030 |
120 |
37/2.03 |
14.21 |
4.5 |
3.2 |
66.2 |
0.4 |
68.2 |
3.4 |
6910 |
150 |
37/2.25 |
15.75 |
4.5 |
3.3 |
69.8 |
0.4 |
71.8 |
3.6 |
8340 |
185 |
37/2.52 |
17.64 |
4.5 |
3.5 |
74.2 |
0.4 |
76.2 |
3.8 |
9700 |
8.7/15KV (FA-) TPYCY
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-) TPYCY | |||||
| Size | Construction | O.D | Thick.of Sheath |
Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
25 |
7/2.14 |
6.42 |
4.5 |
2.5 |
48.0 |
0.4 |
1.9 |
54.0 |
2.7 |
2750 |
35 |
7/2.52 |
7.56 |
4.5 |
2.6 |
50.6 |
0.4 |
1.9 |
56.8 |
2.8 |
4030 |
50 |
19/1.78 |
8.9 |
4.5 |
2.7 |
53.8 |
0.4 |
2.0 |
60.1 |
3.0 |
4640 |
70 |
19/2.14 |
10.7 |
4.5 |
2.9 |
58.0 |
0.4 |
2.1 |
64.5 |
3.2 |
5610 |
95 |
19/2.52 |
12.6 |
4.5 |
3.0 |
62.4 |
0.4 |
2.2 |
69.2 |
3.5 |
6890 |
120 |
37/2.03 |
14.21 |
4.5 |
3.2 |
66.2 |
0.4 |
2.3 |
73.2 |
3.7 |
7820 |
150 |
37/2.25 |
15.75 |
4.5 |
3.3 |
69.8 |
0.4 |
2.4 |
77.0 |
3.8 |
9160 |
185 |
37/2.52 |
17.64 |
4.5 |
3.5 |
74.2 |
0.4 |
2.5 |
81.6 |
4.1 |
10460 |
