SCP, SYP
Standards
JISC 3410-1999
IEC 60332-1

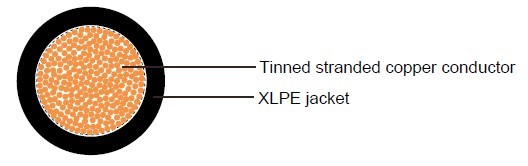

Cable Construction
Conductor |
S |
Bunched tinned annealed stranded copper, class 5 according to IEC 60228 |
Insulation |
CP |
85°C XLPE/ |
Cable Parameter
SCP
Conductor |
Thick. of insulation |
Nom. overall dia. |
Tolerance |
Cable Weight |
||
Size |
Construction |
O.D |
||||
mm² |
No./mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
30/0.25 |
1.58 |
0.9 |
3.7 |
0.4 |
26 |
2.5 |
49/0.25 |
2.02 |
1 |
4.3 |
0.4 |
38 |
4 |
55/0.30 |
2.57 |
1 |
4.8 |
0.4 |
55 |
6 |
82/0.30 |
3.14 |
1 |
5.3 |
0.4 |
75 |
10 |
80/0.40 |
4.13 |
1.1 |
6.6 |
0.4 |
125 |
16 |
7/18/0.40 |
5.88 |
1.1 |
8.3 |
0.4 |
190 |
25 |
7/28/0.40 |
7.32 |
1.2 |
10 |
0.4 |
280 |
35 |
7/39/0.40 |
8.67 |
1.4 |
11.8 |
0.5 |
390 |
50 |
19/21/0.40 |
10.3 |
1.4 |
13.4 |
0.5 |
550 |
70 |
19/19/0.50 |
12.2 |
1.6 |
15.7 |
0.6 |
770 |
95 |
19/25/0.50 |
14 |
1.7 |
17.7 |
0.7 |
1000 |
SYP
Conductor |
Thick. of insulation |
Nom. overall dia. |
Tolerance |
Cable Weight |
||
Size |
Construction |
O.D |
||||
mm² |
No./mm |
mm |
mm |
mm |
mm |
kg/km |
0.75 |
24/0.20 |
1.13 |
1.2 |
3.8 |
0.4 |
21 |
1 |
32/0.20 |
1.27 |
1.2 |
3.9 |
0.4 |
24 |
1.5 |
30/0.25 |
1.58 |
1.2 |
4.2 |
0.4 |
30 |
2.5 |
49/0.25 |
2.02 |
1.2 |
4.7 |
0.4 |
41 |
4 |
55/0.30 |
2.57 |
1.2 |
5.2 |
0.4 |
60 |
6 |
82/0.30 |
3.14 |
1.2 |
5.8 |
0.4 |
80 |
10 |
80/0.40 |
4.13 |
1.2 |
6.8 |
0.4 |
125 |
16 |
7/18/0.40 |
5.88 |
1.3 |
8.7 |
0.4 |
195 |
