[FA-] TTYS, TTYCS, TTYCYS
[FA-] TTPYS, TTPYCS, TTPYCYS
Standards
JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

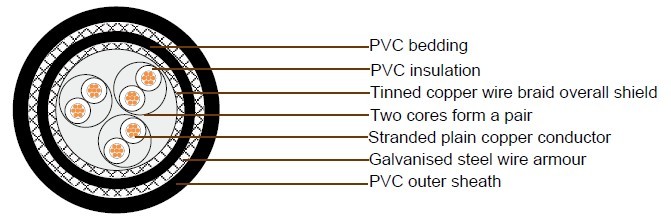

Cable Construction
Conductor |
TT |
Tinned annealed stranded copper (TTY-type) Tinned annealed stranded |
Insulation |
|
60°C PVC(TTY-type)/ 85°C EPR(TTPY-type) as per JIS C 3410 |
Twisting |
|
Two Insulated cores shall be twisted together to form a pair |
Cabling |
|
Twisted pairs shall be cabled. |
Overall shield |
S |
Tinned copper wire braid |
Bedding |
Y |
PVC as per JIS C 3410 |
Armor |
C |
Galvanized steel wire braid |
Sheath |
Y |
PVC as per JIS C 3410 |
Core identification |
|
Printed pair number and Alphabet letter on the white insulation. |
Outer sheath color |
|
Black |
Cable Parameter
(FA-) TTYCS,TTPYCS
| No. of pair, Triad or Quad |
Conductor | Thick. of insulation |
Dia. of shield wire |
Thick. of bedding |
Dia. of steel wire |
(FA-) TTYCS,TTPYCS | ||||
| Size | Construction | O.D | Nom. overall dia |
Tolerance | Cable Weight |
|||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | kg/km | |
1 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
1.1 |
0.3 |
10.1 |
0.4 |
180 |
1T |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
1.1 |
0.3 |
10.6 |
0.4 |
205 |
1Q |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
1.1 |
0.3 |
11.3 |
0.5 |
230 |
2 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.16 |
1.2 |
0.3 |
14.6 |
0.7 |
230 |
4 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.16 |
1.3 |
0.3 |
16.3 |
0.7 |
405 |
7 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.16 |
1.4 |
0.3 |
19 |
0.7 |
545 |
10 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.18 |
1.6 |
0.3 |
24.1 |
1 |
800 |
14 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.18 |
1.6 |
0.3 |
25.7 |
1 |
935 |
19 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.18 |
1.8 |
0.3 |
28.8 |
1.2 |
1160 |
24 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.2 |
2 |
0.4 |
34.9 |
1.4 |
1600 |
30 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.26 |
2.1 |
0.4 |
37.3 |
1.5 |
1950 |
37 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.26 |
2.2 |
0.4 |
40.2 |
1.6 |
2250 |
48 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.26 |
2.4 |
0.4 |
46.1 |
1.7 |
2830 |
(FA-) TTYCYS,TTPYCYS
| No. of pair, Triad or Quad |
Conductor | Thick. of insulation |
Dia. of shield wire |
Thick. of bedding |
Dia. of steel wire |
Thick. of covering |
(FA-) TTYCYS,TTPYCYS | ||||
| Size | Construction | O.D | Nom. overall dia |
Tolerance | Cable Weight |
||||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | |
1 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
1.1 |
0.3 |
0.9 |
12.1 |
0.5 |
230 |
1T |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
1.1 |
0.3 |
0.9 |
12.6 |
0.5 |
255 |
1Q |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
1.1 |
0.3 |
0.9 |
13.3 |
0.5 |
285 |
2 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.16 |
1.2 |
0.3 |
1 |
16.7 |
0.7 |
285 |
4 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.16 |
1.3 |
0.3 |
1 |
18.5 |
0.7 |
490 |
7 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.16 |
1.4 |
0.3 |
1.1 |
21.4 |
0.9 |
650 |
10 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.18 |
1.6 |
0.3 |
1.2 |
26.7 |
1.1 |
945 |
14 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.18 |
1.6 |
0.3 |
1.2 |
28.3 |
1.1 |
1090 |
19 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.18 |
1.8 |
0.3 |
1.3 |
31.6 |
1.3 |
1340 |
24 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.2 |
2 |
0.4 |
1.5 |
38.3 |
1.5 |
1860 |
30 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.26 |
2.1 |
0.4 |
1.5 |
40.7 |
1.6 |
2230 |
37 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.26 |
2.2 |
0.4 |
1.6 |
43.8 |
1.7 |
2570 |
48 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.26 |
2.4 |
0.4 |
1.8 |
50.1 |
1.8 |
3240 |
