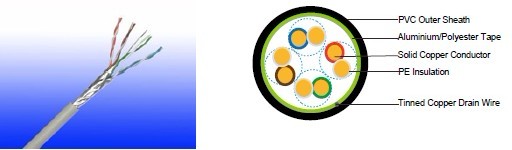

Flame Retardant CAT5e Data CablesFGD-CAT5e U/UTP4P24
|
Flame Retardance (Single Vertical |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE |
Reduced Fire Propagation |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.
VOLTAGE RATING
60V
CABLE CONSTRUCTION
Conductors: 24AWG solid bare copper.
Insulation: HDPE.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil
resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire
performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen
index of the PVC compound and the overall cable design. LSPVC can also be provided upon
request.
Cat5E F/UTP: These cables have collective shielding of aluminium/Polyester tape with drain wire.
Cat5E SF/UTP: These cables have double collective shieldings of aluminium/Polyester tape &
copper wire braid.
COLOUR CODE
Insulation Colour: See technical information
Outer sheath: Black or blue
Physical AND THERMAL PROPERTIES
Temperature range: -30°C ~ +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameterr
Electrical Properties
AWG |
|
24 |
Nominal Conductor Diameter |
mm |
0.5/0.51/0.53 |
Maximum DC Resistant@20°C |
Ω/100m |
9.38 |
Maximum DCR Unbalance |
% |
5 |
Maximum Mutual Capacitance |
pF/m |
55.8 |
Maximum Capacitance Unbalance |
pF/100m |
330 |
Characteristic Impedance@1-100MHz |
Ω |
100+/-15 |
Maximum Propagation Delay Skew |
ns/100m |
45 |
Transmission Properties
FREQ MHz |
Maximum |
Minimum |
Minimum |
Minimum |
Minimum |
Minimum |
0.772 |
1.8 |
67.0 |
64.0 |
66.0 |
63.0 |
— |
1 |
2.0 |
65.3 |
62.3 |
63.8 |
60.8 |
20.0 |
4 |
4.1 |
56.3 |
53.3 |
51.7 |
48.7 |
23.0 |
8 |
5.8 |
51.8 |
48.8 |
45.7 |
42.7 |
24.5 |
10 |
6.5 |
50.3 |
47.3 |
43.8 |
40.8 |
25.0 |
16 |
8.2 |
47.3 |
44.3 |
39.7 |
36.7 |
25.0 |
20 |
9.3 |
45.8 |
42.8 |
37.7 |
34.7 |
25.0 |
25 |
10.4 |
44.3 |
41.3 |
35.8 |
32.8 |
24.3 |
31.25 |
11.7 |
42.9 |
39.9 |
33.9 |
30.9 |
23.6 |
62.5 |
17.0 |
38.4 |
35.4 |
27.8 |
24.8 |
21.5 |
100 |
22.0 |
35.3 |
32.3 |
23.8 |
20.8 |
20.1 |
CONSTRUCTION PARAMETERS
Cable Code |
Conductor |
Diameter Over Insulation |
Pairs |
Screen |
Nominal Overall Diameter |
|
mm |
mm |
|
|
mm |
FGD-Cat5E U/UTP |
0.5/0.51 |
0.91 |
4 |
Nil |
5.1 |
FGD-Cat5E F/UTP |
0.53 |
1.00 |
4 |
Overall Aluminum Tape Screen |
6.3 |
FGD-Cat5E SF/UTP |
0.53 |
1.00 |
4 |
Overall Aluminum Tape Screen & Copper |
6.6 |
