300/500V XLPE Insulated, PVC Sheathed, Screened Power Cables (2-4 Cores)
FGD200 05ROV-R (CU/XLPE/OSCR/PVC 300/500V Class 2)
APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems,
airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS
Basic design adapted to BS 5308
FIRE PERFORMANCE
Flame Retardance (Single Vertical
Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.
VOLTAGE RATING
300/500V

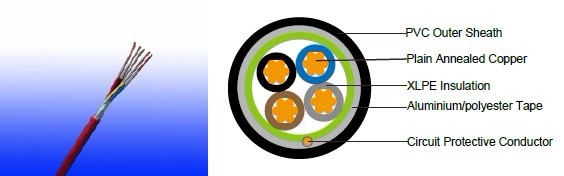

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Filler, binder(if any): PP, Mylar tape
Circuit Protective Conductor: Annealed plain copper (class 2)
Overall Screen: Aluminium/polyester tape
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
Insulation Colour as per BS7671
|
With Earth Conductor |
Without Earth Conductor |
2Cores |
- |
Brown, Blue |
3Cores |
Yellow/Green, Brown, Blue |
Brown, Gray, Black |
4Cores |
Yellow/Green, Brown, Gray, Black |
Brown, Gray, Black, Blue |
5Cores |
Yellow/Green, Brown, Gray, Black, Blue |
Brown, Gray, Black, Blue, Black |
Above 5 Cores |
Yellow/Green, Black Numbered |
Black Numbered |
Sheath Colour: Black (other colors upon request)
Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 6 x Overall Diameter
CONSTRUCTION PARAMETERS
Conductor |
FGD200 05ROV-R |
No. of Core
X
Cross
Section |
No./Nominal
Diameter of
Strands |
Nominal
Overall
Diameter
Conductor |
Nominal
Insulation
Thickness |
Cross-
Section
Area Of
Circuit
Protective
Conductor |
Nominal
Sheath
Thickness |
Nominal
Overall
Diameter |
Max.Dc
Resistance
Of
Conductor
@20°C |
Approx.
Weight |
Noxmm2 |
No./mm |
mm |
mm |
mm2 |
mm |
mm |
Ω/km |
kg/km |
2x1.0 |
7/0.44 |
1.32 |
0.6 |
1.0 |
0.9 |
8.1 |
18.1 |
79 |
2x1.5 |
7/0.53 |
1.59 |
0.7 |
1.5 |
0.9 |
9.1 |
12.1 |
102 |
2x2.5 |
7/0.67 |
2.01 |
0.8 |
2.5 |
1.0 |
10.5 |
7.41 |
146 |
2x4.0 |
7I0.85 |
2.55 |
0.8 |
4.0 |
1.1 |
11.8 |
4.61 |
205 |
3x1.0 |
7I0.44 |
1.32 |
0.6 |
1.0 |
0.9 |
8.6 |
18.1 |
98 |
3x1.5 |
7I0.53 |
1.59 |
0.7 |
1.5 |
0.9 |
9.6 |
12.1 |
129 |
3x2.5 |
7I0.67 |
2.01 |
0.8 |
2.5 |
1.0 |
11.1 |
7.41 |
185 |
3x4.0 |
7I0.85 |
2.55 |
0.8 |
4.0 |
1.1 |
12.5 |
4.61 |
262 |
4x1.0 |
7I0.44 |
132 |
0.6 |
1.0 |
1.0 |
9.5 |
18.1 |
123 |
4x1.5 |
7I0.53 |
1.59 |
0.7 |
1.5 |
1.0 |
10.6 |
12.1 |
162 |
4x2.5 |
7I0.67 |
2.01 |
0.8 |
2.5 |
1.1 |
12.3 |
7.41 |
233 |
4x4.0 |
7I0.85 |
2.55 |
0.8 |
4.0 |
1.2 |
13.9 |
4.61 |
329 |
Electrical Properties
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)
Conductor cross- sectional area |
Reference Method
4 (enclosed in conduit
in thermally insulating wall etc) |
Reference Method 3 (enclosed in conduit on
a wall or in trunking etc) |
Reference Method
1 (clipped direct) |
Reference Method 11 (on a perforated cable tray, horizontal or vertical) |
Reference Method 12 (free air) |
Horizontal flat spaced |
Vertical flat spaced |
Trefoil |
|
2 cables, single- phase a.c. or d.c. |
3 or 4 cables,
3-phase a.c. |
2 cables, single- phase a.c. or d.c |
3 or 4 cables,
3-phase a.c. |
2 cables, single- phase a.c. or d.c. flat and touching |
3 or 4 cables,
3-phase a.c. flat and touching or trefoil |
2 cables, single- phase a.c. or d.c. or flat and touching |
3 or 4 cables,
3-phase a.c. flat and touching or trefoil |
2 cables, single- phase a.c. or d.c.
or 3 c ables three phase |
2
cables, single- phase a.c. or d.c.
or 3 cables three
phase |
3 cables, trefoil
3-phase a.c. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
mm2 |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
1.5 |
18 |
17 |
22 |
19 |
25 |
23 |
- |
- |
- |
- |
- |
2.5 |
24 |
23 |
30 |
26 |
34 |
31 |
- |
- |
- |
- |
- |
4 |
33 |
30 |
40 |
35 |
46 |
41 |
- |
- |
- |
- |
- |
Voltage Drop (Per Amp Per Meter)
Nominal
Cross
Section
Area |
2 cables
d.c. |
2 cables, single-phase a.c. |
3 or 4 cables, 3-phase a.c. |
Ref. Methods 3
and 4 (enclosed
in conduit etc,
in or on a wall) |
Ref. Methods 1
and 11 (clipped
direct or on trays
touching) |
Ref. Methods 3
and 4 (enclosed
in conduit etc,
in or on a wall) |
Ref. Methods 1,
11 and 12 (in
trefoil) |
Ref. Methods 1 and
11(Flat and touching) |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
mm2 |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
1.5 |
31 |
31 |
27 |
27 |
27 |
27 |
2.5 |
19 |
19 |
16 |
16 |
16 |
16 |
4 |
33 |
12 |
10 |
10 |
10 |
10 |
|
