600/1000V XLPE Insulated, PVC Sheathed, Screened Power Cables (3C+3E)
FGD300 1RCV-R (CU/XLPE/CUTO/PVC 600/1000V Class 2)
APPLICATION
The cables are designed specifically to suit the broad spectrum of requirements of Variable Speed
Drives and also include features for reducing the transmission of electromagnetic interference.
These range of cables are able to reduce capacitance of power conductors and have an electrically
balanced construction which includes split earths and a copper screen.
This range of screened cables drastically reduce interferences from electrical noise, especially in
Variable Speed Drive (VSD) applications and are manufactured with fixed conductors.
With shield conductivity of 1/10th of phase conductor conductivity, this range of VSD cables
effectively restrain radiated and conducted radio-frequency emissions.
STANDARDS
Basic design adapted to IEC 60502-1
FIRE PERFORMANCE
Flame Retardance (Single Vertical
Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.
VOLTAGE RATING
600/1000V

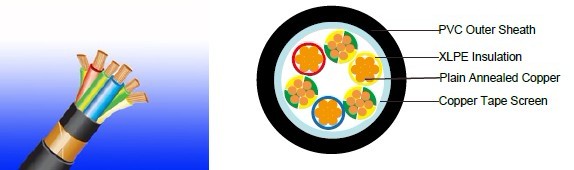

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Screen: Copper Tape
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
Insulation Colour: Red, Yellow, Blue, Green/Yellow (x3)
Outer sheath: Black or as order
Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 10 x Overall Diameter
CONSTRUCTION PARAMETERS
Conductor |
FGD300 1RCV-R |
No. of Core
X
Cross
Section |
No./
Nominal
Diameter
of
Strands |
Combined
Earth Size |
Nominal
Insulation
Thickness |
Nominal
Sheath
Thickness |
Nominal
Overall
Diameter |
Approx.
Weight |
mm2 |
No./mm |
mm2 |
mm |
mm |
mm |
kg/km |
3x1.5 |
7/0.53 |
4.5(3x1.5) |
0.7 |
1.8 |
13.6 |
325 |
3x2.5 |
7/0.67 |
4.5(3x1.5) |
0.7 |
1.8 |
14.8 |
380 |
3x4 |
7/0.85 |
4.5(3x1.5) |
0.7 |
1.8 |
15.8 |
440 |
3x6 |
7/1.04 |
7.5(3x2.5) |
0.7 |
1.8 |
16.9 |
550 |
3x10 |
7/1.35 |
12(3x4) |
0.7 |
1.8 |
18.6 |
750 |
3x16 |
7/1.70 |
18(3x6) |
0.7 |
1.8 |
20.8 |
1000 |
3x25 |
7/2.14 |
30(3x10) |
0.9 |
1.8 |
24.0 |
1470 |
3x35 |
7/2.52 |
30(3x10) |
0.9 |
1.8 |
25.6 |
1890 |
3x50 |
19/1.78 |
30(3x10) |
1.0 |
1.9 |
31.1 |
2300 |
3x70 |
19/2.14 |
48(3x16) |
1.1 |
2.0 |
34.6 |
3200 |
3x95 |
19/2.52 |
48(3x16) |
1.1 |
2.2 |
39.3 |
4200 |
3x120 |
37/2.03 |
75(3x25) |
1.2 |
2.3 |
44.0 |
5400 |
3x150 |
37/2.25 |
75(3x25) |
1.4 |
2.5 |
49.0 |
6400 |
3x185 |
37/2.52 |
105(3x35) |
1.6 |
2.6 |
54.0 |
7900 |
3x240 |
61/2.25 |
150(3x50) |
1.7 |
2.8 |
61.0 |
10200 |
3x300 |
61/2.52 |
150(3x50) |
1.8 |
3.0 |
67.0 |
12300 |
Electrical Properties
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)
Conductor cross- sectional area |
Reference
Method 4 (enclosed in conduit
in thermally insulating wall
etc) |
Reference Method 3 (enclosed in conduit on
a wall or in trunking etc) |
Reference Method
1 (clipped direct) |
Reference Method 11 (on a perforated cable tray, horizontal or vertical) |
Reference Method 12 (free air) |
Horizontal flat spaced |
Vertical flat spaced |
Trefoil |
|
2 cables, single- phase a.c. or d.c. |
3 or 4 cables,
3-phase a.c. |
2 cables, single- phase a.c. or d.c |
3 or 4 cables,
3-phase a.c. |
2 cables, single- phase a.c. or d.c. flat and touching |
3 or 4 cables,
3-phase a.c. flat and touching or trefoil |
2 cables, single- phase a.c. or d.c. or flat and touching |
3 or 4 cables,
3-phase a.c. flat and touching or trefoil |
2 cables, single- phase a.c. or d.c.
or 3 c ables three phase |
2
cables, single- phase a.c. or d.c.
or 3 cables three
phase |
3 cables, trefoil
3-phase a.c. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
mm2 |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
1.5 |
18 |
17 |
22 |
19 |
25 |
23 |
- |
- |
- |
- |
- |
2.5 |
24 |
23 |
30 |
26 |
34 |
31 |
- |
- |
- |
- |
- |
4 |
33 |
30 |
40 |
35 |
46 |
41 |
- |
- |
- |
- |
- |
6 |
43 |
39 |
51 |
45 |
59 |
54 |
- |
- |
- |
- |
- |
10 |
58 |
53 |
71 |
63 |
81 |
74 |
- |
- |
- |
- |
- |
16 |
76 |
70 |
95 |
85 |
109 |
99 |
- |
- |
- |
- |
- |
25 |
100 |
91 |
126 |
111 |
143 |
130 |
158 |
140 |
183 |
163 |
138 |
35 |
125 |
111 |
156 |
138 |
176 |
161 |
195 |
176 |
226 |
203 |
171 |
50 |
149 |
135 |
189 |
168 |
228 |
209 |
293 |
215 |
274 |
246 |
209 |
70 |
189 |
170 |
240 |
214 |
293 |
268 |
308 |
279 |
351 |
318 |
270 |
95 |
228 |
205 |
290 |
259 |
355 |
326 |
375 |
341 |
426 |
389 |
330 |
120 |
263 |
235 |
336 |
299 |
413 |
379 |
436 |
398 |
495 |
453 |
385 |
150 |
300 |
270 |
375 |
328 |
476 |
436 |
505 |
461 |
570 |
524 |
445 |
185 |
341 |
306 |
426 |
370 |
545 |
500 |
579 |
530 |
651 |
600 |
511 |
240 |
400 |
358 |
500 |
433 |
644 |
590 |
686 |
630 |
769 |
711 |
606 |
300 |
459 |
410 |
573 |
493 |
743 |
681 |
794 |
730 |
886 |
824 |
701 |
Voltage Drop (Per Amp Per Meter)
Nominal Cross Section Area |
2 cables d.c. |
2 cables, single-phase a.c. |
3 or 4 cables, 3-phase a.c. |
Ref. Methods 3
and 4 (enclosed
in conduit etc, in
or on a wall) |
Ref. Methods 1
and 11 (clipped
direct or on trays
touching) |
Ref. Methods 3
and 4 (enclosed
in conduit etc, in
or on a wall) |
Ref. Methods 1,
11 and 12 (in
trefoil) |
Ref. Methods 1
and 11
(Flat and touching) |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
mm2 |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
1.5 |
31 |
31 |
27 |
27 |
27 |
27 |
2.5 |
19 |
19 |
16 |
16 |
16 |
16 |
4 |
33 |
12 |
10 |
10 |
10 |
10 |
6 |
7.8 |
7.9 |
6.8 |
6.8 |
6.8 |
6.8 |
10 |
4.7 |
4.7 |
4.7 |
4 |
4 |
4 |
16 |
2.9 |
2.9 |
2.9 |
2.5 |
2.5 |
2.5 |
|
|
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
25 |
1.85 |
1.85 |
0.31 |
1.90 |
1.85 |
0.190 |
1.85 |
1.60 |
0.27 |
1.65 |
1.600 |
0.165 |
1.600 |
1.600 |
0.190 |
1.600 |
35 |
1.35 |
1.35 |
0.29 |
1.35 |
1.35 |
0.180 |
1.35 |
1.15 |
0.25 |
1.15 |
1.150 |
0.155 |
1.50 |
1.150 |
0.180 |
1.150 |
50 |
0.99 |
1.00 |
0.29 |
1.05 |
0.99 |
0.180 |
1.00 |
0.87 |
0.25 |
0.90 |
0.860 |
0.155 |
0.870 |
0.860 |
0.180 |
0.870 |
70 |
0.68 |
0.70 |
0.28 |
0.75 |
0.68 |
0.175 |
0.71 |
0.60 |
0.24 |
0.65 |
0.590 |
0.150 |
0.610 |
0.590 |
0.175 |
0.620 |
95 |
0.49 |
0.51 |
0.27 |
0.58 |
0.49 |
0.170 |
0.52 |
0.44 |
0.23 |
0.50 |
0.430 |
0.145 |
0.450 |
0.430 |
0.170 |
0.460 |
120 |
0.39 |
0.41 |
0.26 |
0.48 |
0.39 |
0.165 |
0.43 |
0.35 |
0.23 |
0.42 |
0.340 |
0.140 |
0.370 |
0.340 |
0.165 |
0.380 |
150 |
0.32 |
0.33 |
0.26 |
0.43 |
0.32 |
0.165 |
0.36 |
0.29 |
0.23 |
0.37 |
0.280 |
0.140 |
0.310 |
0.280 |
0.165 |
0.320 |
185 |
0.25 |
0.27 |
0.26 |
0.37 |
0.26 |
0.165 |
0.30 |
0.23 |
0.23 |
0.32 |
0.220 |
0.140 |
0.260 |
0.220 |
0.165 |
0.280 |
240 |
0.19 |
0.21 |
0.26 |
0.33 |
0.20 |
0.160 |
0.25 |
0.185 |
0.22 |
0.29 |
0.170 |
0.140 |
0.220 |
0.170 |
0.165 |
0.240 |
300 |
0.155 |
0.175 |
0.25 |
0.31 |
0.16 |
0.160 |
0.22 |
0.150 |
0.22 |
0.27 |
0.140 |
0.140 |
0.195 |
0.135 |
0.160 |
0.210 |
|
