Flame Retardant Coaxial Cables
Flame Retardant RG6 A/U CWB/SWB/SWA Armoured Coaxial cables
APPLICATION
These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.
STANDARDS
Basic design adapted to MIL-C-17
FIRE PERFORMANCE
Flame Retardance (Single Vertical
Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.

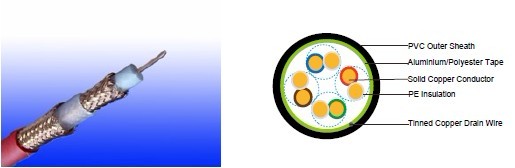

CABLE CONSTRUCTION
Conductors: 18AWG solid bare copper.
Insulation: PE compound.
Screen1: Aluminium/polyester or aluminium tape.
Screen2: Tinned copper braid.
Inner Sheath: PVC compound.
Armour:
cwb: copper Wire Braid
swb: Steel Wire Braid
swa: Steel Wire Armour
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.
Physical AND THERMAL PROPERTIES
Temperature Range: -30°C - +75°C
Minimum Bending Radius: 815 X Overall Diameter
Electrical Properties
AWG |
|
18 |
Nominal Conductor Diameter |
mm |
1.0 |
Impedance |
Ω |
75+/-5 |
Nominal Attenuation@100MHz |
dB/100m |
6.9 |
Nominal Attenuation@200MHz |
dB/100m |
9.0 |
Nominal Attenuation@300MHz |
dB/100m |
11.8 |
Nominal Attenuation@400MHz |
dB/100m |
13.1 |
Nominal Attenuation@500MHz |
dB/100m |
15.4 |
Nominal Attenuation@900MHz |
dB/100m |
21.5 |
Nominal Attenuation@1700MHz |
dB/100m |
29.4 |
Capacitance |
pF/m |
53.5 |
Velocity of Propagation |
% |
83 |
Conductor DCR |
Ω/km |
21.4 |
Shield DCR |
Ω/km |
7.5 |
Inductance |
μH/m |
0.32 |
Time Delay |
ns/m |
4 |
CONSTRUCTION PARAMETERS
Cable Code |
Nominal Inner
Conductor
Diameter |
Nominal
Insulation
Thickness |
Nominal
Sheath
Thickness |
Nominal
Overall
Diameter |
Nominal
Weight |
|
mm |
mm |
mm |
mm |
kg/km |
FGD RG6 A/U CWB |
1.0 |
1.8 |
1.2 |
10.8 |
181 |
FGD RG6 A/U SWB |
1.0 |
1.8 |
1.2 |
10.8 |
177 |
FGD RG6 A/U SWA |
1.0 |
1.8 |
1.2 |
11.8 |
267 |
|
