A-2Y(L)2YB2Y S(H45)
Application
The cables are designed for transmission of low frequent signals up to 90 KHz through symmetric circuits in railway networks, and are suitable for laying directly into the ground or in ducts.
Standard
- Dlk 1.013.109y
- Dlk 1.013.110y
Cable Construction

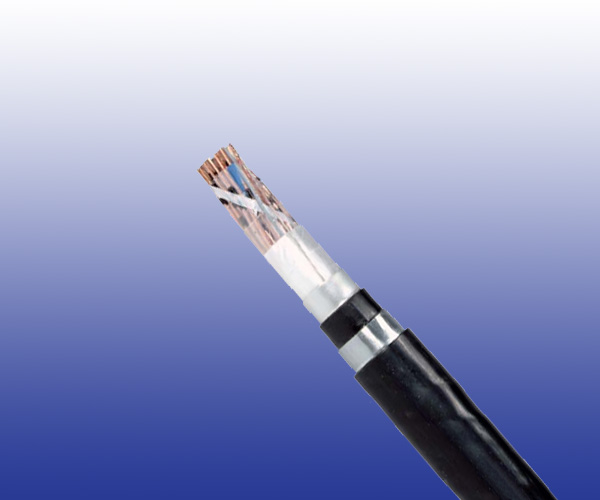

2YB2Y.jpg) |

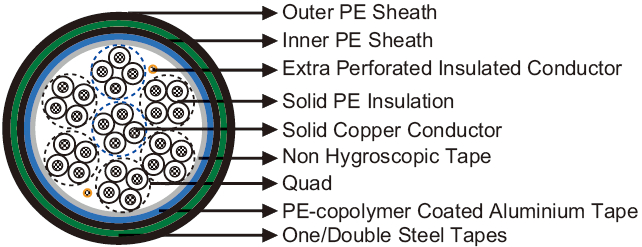

2YB2Y-S(H45).jpg) |
- Conductors: Solid Annealed copper, 0.9 or 1.4 mm nominal diameter.
- Insulation: Solid polyethylene.
- Cabl ing Element : Four insulated conductors are twisted together to form a quad.
- Stranding: Quads are helically stranded in concentric layers. Cables from 7 quads on, have two extra conductors of 0.5mm with perforated insulation (surveillance conductors).
- Core Wrapping: Plastic tape(s) with overlapping.
- Moisture Barrier: One laminated sheath made of aluminium tape (0.15mm) coated with PE-Copolymer on at least one side is applied with longitudinally overlap.
- Inner Sheath: Low density polyethylene.
- Electrostatic Shield: One layer of helically applied copper wires (0.9, 1.2, 1.4 or 1.8mm).
- Electromagnetic Shield: One helically applied steel tape (0.2-0.3mm) or two helically applied steel tapes (0.1mm).
- Outer Sheath: Low density polyethylene.
Type Codes
- AJ– outdoor cable with protection against inductive infl uences
- 2Y solid PE conductor insulation
- (L)2Y inner laminated PE sheath
- B steel tape armor
- 2Y outer PE sheath
- S signal cable
- LG layer stranding
- H(n) operating capacity

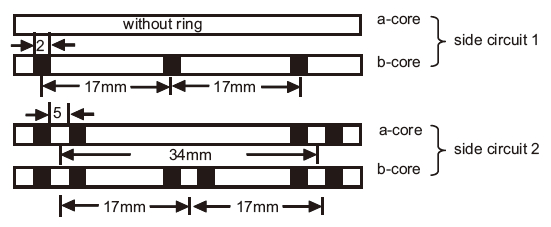

Ring marking of Quad
The single core is identifi ed by black ring markings:
- Side Circuit 1 a-wire without marking, b-wire 1 mark distance 17mm
- Side Circuit 2 a-wire 2 marks distance 34mm, b-wire 2 marks distance 17mm
2YB2Y S(H45) ring marking.jpg)
Electrical Characteristics at 20℃
| Nominal Conductor Diameter | mm | 0.9 | 1.4 |
| Maximum Conductor Resistance | Ω/km | 56.6 | 23.4 |
| Minimum Insulation Resistance @500 V DC (1min) | MΩ.km | 1000 | 1000 |
| Maximum Conductor Capacitance @800Hz (AC) | nF/km | 45 | 45 |
| Maximum Capacitance Unbalance @800Hz | |||
| K1 (100% / 50% all values) | pF/km | 650/150 | 650/150 |
| K9-12 neighboured quads | pF/km | 500/150 | 500/150 |
| K9-12 over-neighboured quads | pF/km | 150 | 150 |
| ea1/2 | pF/km | 1300 | 1300 |
| Miniumum Far-end Crosstalk Attenuation @90KHz | |||
| 100% / 80% all values | dB/km | 58/62 | 33/45 |
| Maximum Attenuation @90KHz | dB/km | 3.3 | 2.6 |
| Dielectric Strength, conductor to conductor (DC voltage 1min) | V | 3535 | 3535 |
| Surveillance Conductors | |||
| Loop resistance, maximum | Ω/km | 190 | 190 |
| Insulation resistance | |||
| - dry cable core, minimum | MΩ.km | 1000 | 1000 |
| - wet cable core, maximum | KΩ.km | 30 | 30 |
| Operating Voltage AC/DC | V | 420/600 | 420/600 |
| Test Voltage 50 Hz 1 min | |||
| Core to Core | Veff | 2500 | 2500 |
| Core to Screen | Veff | 2500 | 2500 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 10×OD
- Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)
Dimensions and Weight
| Cable Code | Number of Quads |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
|---|---|---|---|---|---|
| Inner | Outer | ||||
| 0.9mm Conductor, 1.8mm Insulated Wire | |||||
| RS109y-2Y(L)2YB2Y-1Q0.9-S(H45) | 1 | 1.3 | 1.2 | 12.0 | 170 |
| RS109y-2Y(L)2YB2Y-3Q0.9-S(H45) | 3 | 1.3 | 1.2 | 17.0 | 310 |
| RS109y-2Y(L)2YB2Y-5Q0.9-S(H45) | 5 | 1.3 | 1.2 | 19.0 | 410 |
| RS109y-2Y(L)2YB2Y-7Q0.9-S(H45) | 7 | 1.3 | 1.2 | 21.0 | 500 |
| RS109y-2Y(L)2YB2Y-10Q0.9-S(H45) | 10 | 1.3 | 1.2 | 24.0 | 640 |
| RS109y-2Y(L)2YB2Y-14Q0.9-S(H45) | 14 | 1.3 | 1.2 | 27.0 | 800 |
| 1.4mm Conductor, 2.8mm Insulated Wire | |||||
| RS109y-2Y(L)2YB2Y-1Q1.4-S(H45) | 1 | 1.3 | 1.2 | 14.0 | 240 |
| RS109y-2Y(L)2YB2Y-3Q1.4-S(H45) | 3 | 1.3 | 1.2 | 21.0 | 490 |
| RS109y-2Y(L)2YB2Y-5Q1.4-S(H45) | 5 | 1.3 | 1.2 | 24.0 | 710 |
| RS109y-2Y(L)2YB2Y-7Q1.4-S(H45) | 7 | 1.3 | 1.2 | 26.0 | 880 |
| RS109y-2Y(L)2YB2Y-10Q1.4-S(H45) | 10 | 1.3 | 1.2 | 33.0 | 1190 |
| RS109y-2Y(L)2YB2Y-14Q1.4-S(H45) | 14 | 1.3 | 1.2 | 36.5 | 1550 |
