AJ-2Y2YDB2Y S(H115)/S(H145)/S(H95)
Application
The cables are designed for transmission of service tensions up to 600 VDC / 420 Veff AC100Hz in railway signalling networks, and are suitable for installation in ducts or laying directly into the ground.
Standard
- Dlk 1.013.107y
- Dlk 1.013.108y (for 1.4/1.8mm conductor H95 type)
- Dlk 1.013.110y

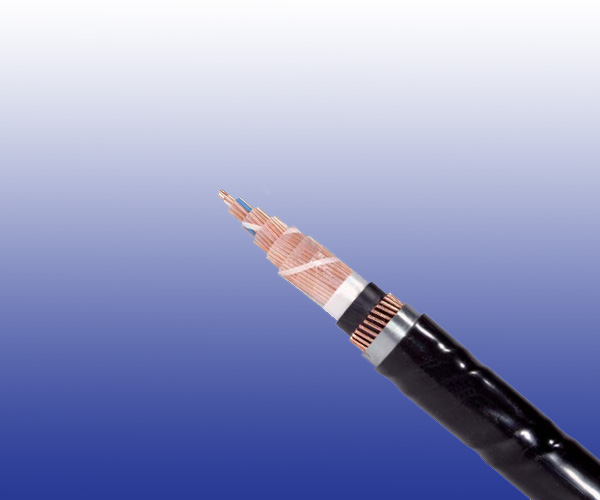

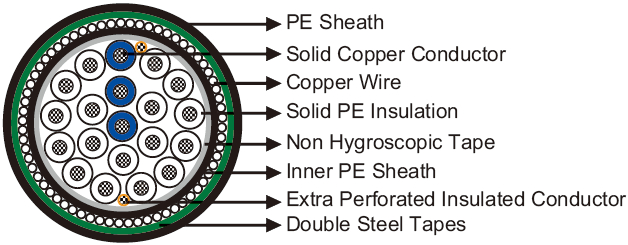

Cable Construction
 |
 |
- Conductors: Solid annealed copper, 0.9, 1.4 or 1.8 mm nominal diameter.
- Insulation: Solid polyethylene.
- Stranding: Single conductors are helically stranded in concentric layers. Cables from 14 conductors on have two extra conductors of 0.5mm with perforated insulation (surveillance conductors).
- Core Wrapping: Plastic tape(s) with overlapping.
- Inner Sheath: Low density polyethylene.
- Electrostatic Shield: One layer of helically applied copper wires (0.9, 1.2, 1.4 or 1.8mm).
- Electromagnetic Shield: Two helically applied steel tapes (0.5 or 0.8mm thick, depending on required reduction factor).
- Outer Sheath: Low density polyethylene.
Type Codes
- AJ- outdoor cable with protection against inductive infl uences
- 2Y solid PE conductor insulation
- 2Y inner PE sheath
- D copper wire concentric screen
- B steel tape armor
- 2Y outer PE sheath
- S signal cable
- LG layer stranding
- H (n) operating capacity
Electrical Characteristics at 20℃
| Nominal Conductor Diameter | mm | 0.9 | 1.4 | 1.8 |
| Maximum Conductor Resistance | Ω/km | 28.9 | 11.9 | 7.2 |
| Minimum Insulation Resistance @500 V DC (1min) | MΩ.km | 10000 | 10000 | 10000 |
| Maximum Mutual Capacitance @800Hz (AC) | nF/km | 15 | 145/95* | 145/95* |
| Dielectric Strength, conductor to conductor (DC voltage 1min) | V | 3535 | 3535 | 3535 |
| Surveillance Conductors | ||||
| Loop resistance, maximum | Ω/km | 190 | 190 | 190 |
| Insulation resistance | ||||
| - dry cable core, minimum | MΩ.km | 1000 | 1000 | 1000 |
| - wet cable core, maximum | KΩ.km | 30 | 30 | 30 |
| Nominal Reduction Factor @ 100 V/km, 16 2/3 Hz | ||||
| rk 401 series | 0.15 | 0.15 | 0.15 | |
| rk 501 series | 0.35 | 0.35 | 0.35 | |
| rk 601 series | 0.55 | 0.55 | 0.55 | |
| Operating Voltage AC/DC | V | 420/600 | 420/600 | 420/600 |
| Test Voltage@50 Hz 1 min | ||||
| Core to Core | Veff | 2500 | 2500 | 2500 |
| Core to Screen | Veff | 2500 | 2500 | 2500 |
*The value“ 95” is only for cables with 1.4/1.8mm conductors according to Dlk 1.013.108y.
Mechanical and Thermal Properties
- Minimum Bending Radius: 10×OD
- Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)
Dimensions and Weight
AJ-2Y2YDB2Y n×1×0.9 S(H115)
| Cable Code | Number of conductors (n) |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight Inner Outer kg/km |
|
|---|---|---|---|---|---|
| Inner | Outer | ||||
| 0.9mm Conductor, 1.55mm Insulated Wire rk 601 Series | |||||
| RS107y-2Y2YDB2Y-10C0.9-S(H115)-R6 | 10 | 1.3 | 1.2 | 19.0 | 520 |
| RS107y-2Y2YDB2Y-20C0.9-S(H115)-R6 | 20 | 1.3 | 1.2 | 20.0 | 650 |
| RS107y-2Y2YDB2Y-30C0.9-S(H115)-R6 | 30 | 1.3 | 1.2 | 22.0 | 780 |
| RS107y-2Y2YDB2Y-50C0.9-S(H115)-R6 | 50 | 1.3 | 1.2 | 25.0 | 1010 |
| RS107y-2Y2YDB2Y-80C0.9-S(H115)-R6 | 80 | 1.3 | 1.2 | 29.0 | 1330 |
| RS107y-2Y2YDB2Y-120C0.9-S(H115)-R6 | 120 | 1.3 | 1.3 | 32.0 | 1740 |
| RS107y-2Y2YDB2Y-160C0.9-S(H115)-R6 | 160 | 1.3 | 1.3 | 35.0 | 2310 |
| RS107y-2Y2YDB2Y-200C0.9-S(H115)-R6 | 200 | 1.3 | 1.3 | 38.0 | 2520 |
| 0.9mm Conductor, 1.55mm Insulated Wire rk 501 Series | |||||
| RS107y-2Y2YDB2Y-10C0.9-S(H115)-R5 | 10 | 1.3 | 1.2 | 19.0 | 600 |
| RS107y-2Y2YDB2Y-20C0.9-S(H115)-R5 | 20 | 1.3 | 1.2 | 20.0 | 740 |
| RS107y-2Y2YDB2Y-30C0.9-S(H115)-R5 | 30 | 1.3 | 1.2 | 22.0 | 890 |
| RS107y-2Y2YDB2Y-50C0.9-S(H115)-R5 | 50 | 1.3 | 1.3 | 25.0 | 1150 |
| RS107y-2Y2YDB2Y-80C0.9-S(H115)-R5 | 80 | 1.3 | 1.3 | 29.0 | 1480 |
| RS107y-2Y2YDB2Y-120C0.9-S(H115)-R5 | 120 | 1.5 | 1.3 | 32.0 | 1910 |
| RS107y-2Y2YDB2Y-160C0.9-S(H115)-R5 | 160 | 1.5 | 1.3 | 35.0 | 2530 |
| RS107y-2Y2YDB2Y-200C0.9-S(H115)-R5 | 200 | 1.5 | 1.5 | 38.0 | 2730 |
AJ-2Y2YDB2Y n×1×1.4/1.8 S(H145)
| Cable Code | Number of conductors (n) |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight Inner Outer kg/km |
|
|---|---|---|---|---|---|
| Inner | Outer | ||||
| 1.4mm Conductor, 2.2mm Insulated Wire rk 601 Series | |||||
| RS107y-2Y2YDB2Y-10C1.4-S(H145)-R6 | 10 | 1.3 | 1.2 | 21 | 670 |
| RS107y-2Y2YDB2Y-20C1.4-S(H145)-R6 | 20 | 1.3 | 1.2 | 23.5 | 940 |
| RS107y-2Y2YDB2Y-30C1.4-S(H145)-R6 | 30 | 1.3 | 1.2 | 27 | 1180 |
| RS107y-2Y2YDB2Y-50C1.4-S(H145)-R6 | 50 | 1.3 | 1.2 | 31 | 1650 |
| RS107y-2Y2YDB2Y-80C1.4-S(H145)-R6 | 80 | 1.3 | 1.2 | 35 | 2270 |
| RS107y-2Y2YDB2Y-120C1.4-S(H145)-R6 | 120 | 1.3 | 1.3 | 41 | 3110 |
| RS107y-2Y2YDB2Y-160C1.4-S(H145)-R6 | 160 | 1.3 | 1.3 | 46 | 3900 |
| RS107y-2Y2YDB2Y-200C1.4-S(H145)-R6 | 200 | 1.3 | 1.3 | 49 | 4670 |
| 1.4mm Conductor, 2.2mm Insulated Wire rk 501 Series | |||||
| RS107y-2Y2YDB2Y-10C1.4-S(H145)-R5 | 10 | 1.3 | 1.2 | 21 | 780 |
| RS107y-2Y2YDB2Y-20C1.4-S(H145)-R5 | 20 | 1.3 | 1.2 | 23.5 | 1070 |
| RS107y-2Y2YDB2Y-30C1.4-S(H145)-R5 | 30 | 1.3 | 1.2 | 26 | 1320 |
| RS107y-2Y2YDB2Y-50C1.4-S(H145)-R5 | 50 | 1.3 | 1.3 | 31 | 1810 |
| RS107y-2Y2YDB2Y-80C1.4-S(H145)-R5 | 80 | 1.3 | 1.3 | 35 | 2460 |
| RS107y-2Y2YDB2Y-120C1.4-S(H145)-R5 | 120 | 1.5 | 1.3 | 42 | 3380 |
| RS107y-2Y2YDB2Y-160C1.4-S(H145)-R5 | 160 | 1.5 | 1.3 | 46 | 4190 |
| RS107y-2Y2YDB2Y-200C1.4-S(H145)-R5 | 200 | 1.5 | 1.5 | 49 | 5000 |
| 1.4mm Conductor, 2.2mm Insulated Wire rk 401 Series | |||||
| RS107y-2Y2YDB2Y-10C1.4-S(H145)-R4 | 10 | 1.3 | 1.2 | 23 | 960 |
| RS107y-2Y2YDB2Y-20C1.4-S(H145)-R4 | 20 | 1.3 | 1.2 | 25.6 | 1260 |
| RS107y-2Y2YDB2Y-30C1.4-S(H145)-R4 | 30 | 1.3 | 1.3 | 28 | 1940 |
| RS107y-2Y2YDB2Y-50C1.4-S(H145)-R4 | 50 | 1.3 | 1.3 | 33 | 2450 |
| RS107y-2Y2YDB2Y-80C1.4-S(H145)-R4 | 80 | 1.5 | 1.3 | 38 | 3280 |
| RS107y-2Y2YDB2Y-120C1.4-S(H145)-R4 | 120 | 1.5 | 1.5 | 44 | 4290 |
| RS107y-2Y2YDB2Y-160C1.4-S(H145)-R4 | 160 | 1.5 | 1.5 | 48 | 5200 |
| RS107y-2Y2YDB2Y-200C1.4-S(H145)-R4 | 200 | 1.5 | 1.5 | 52 | 6060 |
| 1.8mm Conductor, 2.7mm Insulated Wire rk 601 Series | |||||
| RS107y-2Y2YDB2Y-10C1.8-S(H145)-R6 | 10 | 1.3 | 1.2 | 23 | 850 |
| RS107y-2Y2YDB2Y-20C1.8-S(H145)-R6 | 20 | 1.3 | 1.2 | 27 | 1260 |
| RS107y-2Y2YDB2Y-30C1.8-S(H145)-R6 | 30 | 1.3 | 1.3 | 30 | 1620 |
| RS107y-2Y2YDB2Y-50C1.8-S(H145)-R6 | 50 | 1.3 | 1.3 | 36 | 2080 |
| RS107y-2Y2YDB2Y-80C1.8-S(H145)-R6 | 80 | 1.5 | 1.3 | 41 | 3310 |
| RS107y-2Y2YDB2Y-120C1.8-S(H145)-R6 | 120 | 1.5 | 1.5 | 48 | 4570 |
| RS107y-2Y2YDB2Y-160C1.8-S(H145)-R6 | 160 | 1.5 | 1.5 | 54 | 5950 |
| RS107y-2Y2YDB2Y-200C1.8-S(H145)-R6 | 200 | 1.5 | 1.5 | 58 | 6970 |
| 1.8mm Conductor, 2.7mm Insulated Wire rk 501 Series | |||||
| RS107y-2Y2YDB2Y-10C1.8-S(H145)-R5 | 10 | 1.3 | 1.2 | 23 | 970 |
| RS107y-2Y2YDB2Y-20C1.8-S(H145)-R5 | 20 | 1.3 | 1.2 | 27 | 1410 |
| RS107y-2Y2YDB2Y-30C1.8-S(H145)-R5 | 30 | 1.3 | 1.3 | 30 | 1780 |
| RS107y-2Y2YDB2Y-50C1.8-S(H145)-R5 | 50 | 1.3 | 1.3 | 36 | 2520 |
| RS107y-2Y2YDB2Y-80C1.8-S(H145)-R5 | 80 | 1.5 | 1.3 | 42 | 3570 |
| RS107y-2Y2YDB2Y-120C1.8-S(H145)-R5 | 120 | 1.5 | 1.5 | 49 | 5950 |
| RS107y-2Y2YDB2Y-160C1.8-S(H145)-R5 | 160 | 1.5 | 1.5 | 55 | 6170 |
| RS107y-2Y2YDB2Y-200C1.8-S(H145)-R5 | 200 | 1.5 | 1.5 | 59 | 7380 |
| 1.8mm Conductor, 2.7mm Insulated Wire rk 401 Series | |||||
| RS107y-2Y2YDB2Y-10C1.8-S(H145)-R4 | 10 | 1.3 | 1.2 | 25 | 1160 |
| RS107y-2Y2YDB2Y-20C1.8-S(H145)-R4 | 20 | 1.3 | 1.2 | 29 | 1700 |
| RS107y-2Y2YDB2Y-30C1.8-S(H145)-R4 | 30 | 1.3 | 1.3 | 32 | 2400 |
| RS107y-2Y2YDB2Y-50C1.8-S(H145)-R4 | 50 | 1.3 | 1.3 | 38 | 3350 |
| RS107y-2Y2YDB2Y-80C1.8-S(H145)-R4 | 80 | 1.5 | 1.3 | 44 | 3310 |
| RS107y-2Y2YDB2Y-120C1.8-S(H145)-R4 | 120 | 1.5 | 1.5 | 51 | 4900 |
| RS107y-2Y2YDB2Y-160C1.8-S(H145)-R4 | 160 | 1.5 | 1.5 | 57 | 7340 |
| RS107y-2Y2YDB2Y-200C1.8-S(H145)-R4 | 200 | 1.5 | 1.5 | 61 | 8650 |
AJ-2Y2YDB2Y n×1×1.4/1.8 S(H95)
| Cable Code | Number of conductors (n) |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
|---|---|---|---|---|---|
| Inner | Outer | ||||
| 1.4mm Conductor, 2.7mm Insulated Wire rk 501 Series | |||||
| RS108y-2Y2YDB2Y-10C1.4-S(H95)-R5 | 10 | 1.3 | 1.2 | 22.0 | 900 |
| RS108y-2Y2YDB2Y-14C1.4-S(H95)-R5 | 14 | 1.3 | 1.2 | 24.0 | 1010 |
| RS108y-2Y2YDB2Y-20C1.4-S(H95)-R5 | 20 | 1.3 | 1.2 | 27.0 | 1220 |
| RS108y-2Y2YDB2Y-30C1.4-S(H95)-R5 | 30 | 1.3 | 1.2 | 30.0 | 1520 |
| RS108y-2Y2YDB2Y-50C1.4-S(H95)-R5 | 50 | 1.3 | 1.3 | 35.0 | 2090 |
| 1.4mm Conductor, 2.7mm Insulated Wire rk 401 Series | |||||
| RS108y-2Y2YDB2Y-30C1.4-S(H95)-R4 | 30 | 1.3 | 1.2 | 32.0 | 2150 |
| RS108y-2Y2YDB2Y-50C1.4-S(H95)-R4 | 50 | 1.3 | 1.3 | 38.0 | 2900 |
| 1.8mm Conductor, 3.4mm Insulated Wire rk 501 Series | |||||
| RS108y-2Y2YDB2Y-10C1.8-S(H95)-R5 | 10 | 1.3 | 1.2 | 25.0 | 1130 |
| RS108y-2Y2YDB2Y-14C1.8-S(H95)-R5 | 14 | 1.3 | 1.2 | 27.0 | 1330 |
| RS108y-2Y2YDB2Y-20C1.8-S(H95)-R5 | 20 | 1.3 | 1.2 | 30.0 | 1620 |
| RS108y-2Y2YDB2Y-30C1.8-S(H95)-R5 | 30 | 1.3 | 1.3 | 34.0 | 2340 |
| RS108y-2Y2YDB2Y-50C1.8-S(H95)-R5 | 50 | 1.3 | 1.3 | 42.0 | 3020 |
| 1.8mm Conductor, 3.4mm Insulated Wire rk 401 Series | |||||
| RS108y-2Y2YDB2Y-30C1.8-S(H95)-R4 | 30 | 1.3 | 1.3 | 37.0 | 2880 |
| RS108y-2Y2YDB2Y-50C1.8-S(H95)-R4 | 50 | 1.3 | 1.3 | 44.0 | 3950 |
