CCPSSP-R-FR0.1
Application
The cables are used as railway cables and can be installed directly into the ground or in ducts.
Standard
- RENFE E.T. 03.365.051.6

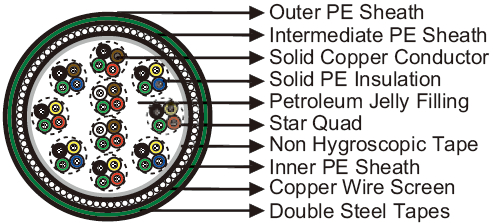

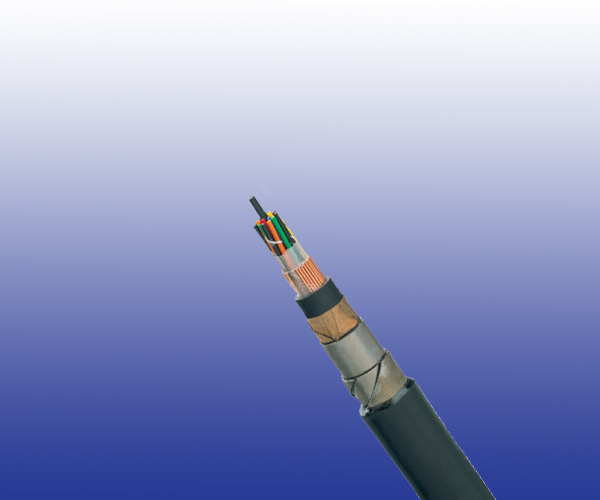

Cable Construction
 |
 |
- Conductors: Soft annealed solid copper, 0.9 mm nominal diameter.
- Insulation: PE.
- Cabling Element: Four insulated conductors are twisted together to form a quad.
- Stranding: Quads are helically stranded in concentric layers.
- Filling: Petroleum jelly fi lling.
- Core Wrapping: At least one layer of water swellable material with overlapping.
- Inner Sheath: PE sheath.
- Screen: 1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference).
- Intermediate Sheath: PE sheath.
- Armour: Two layers of steel tape (0.8mm thick).
- Outer Sheath: PE sheath.
Electrical Characteristics at 20℃
| Nominal Conductor Diameter | mm | 0.9 |
| Maximum Conductor Resistance | Ω/km | 28.5 |
| Minimum Insulation Resistance @500 V DC | MΩ.km | 25000 |
| Mutual Capacitance @800Hz | nF/km | 41 |
| Capacitance Unbalance @800Hz | ||
| K1 maximum individual value | pF/460m | 250 |
| K9-12 maximum individual value | pF/460m | 250 |
| ea1/2 maximum individual value | pF/460m | 1200 |
| Attenuation | ||
| @1KHz | dB/km | 0.7 |
| @10KHz | dB/km | 1.6 |
| @30KHz | dB/km | 2.1 |
| Test Voltage @50Hz 1min | ||
| Core to Core | Veff | 2100 |
| Core to Screen | Veff | 2500 |
| Core to Armouring | Veff | 2000 |
| Reduction Factor @100V/km 50Hz | 0.1 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 10×OD
- Temperature Range: -30℃ to +70℃ (during operation); -5℃ to +50℃ (during installation)
Dimensions and Weight
| Cable Code | Number of Quads |
Nominal Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
||
|---|---|---|---|---|---|---|
| Inner | Inter. | Outer | ||||
| 0.9mm Conductor, 1.8mm Insulated Wire | ||||||
| RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-1Q0.9 | 1 | 1.5 | 1.5 | 1.6 | 23.7 | 1300 |
| RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-3Q0.9 | 3 | 1.5 | 1.5 | 1.6 | 27.7 | 1648 |
| RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-5Q0.9 | 5 | 1.5 | 1.5 | 1.6 | 31.5 | 1984 |
| RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-25Q0.9 | 25 | 1.7 | 1.7 | 1.8 | 51.3 | 4166 |
