CCTSST-FR0.1 n×4×0.9/1.4
Application
The cables are used as railway cables and can be installed directly into the ground or in ducts.
Standard
- RENFE E.T. 03.365.051.6

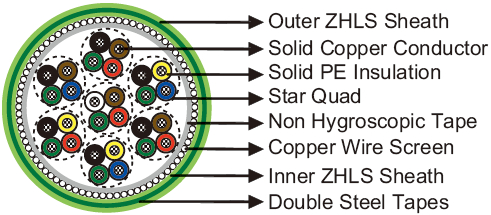

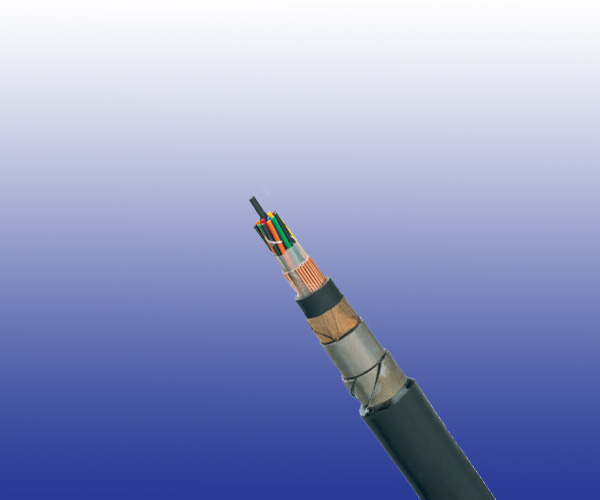

Cable Construction
 |
 |
- Conductors: Soft annealed solid copper, 0.9/1.4 mm nominal diameter.
- Insulation: PE.
- Cabling Element: Four insulated conductors are twisted together to form a quad.
- Stranding: Quads are helically stranded in concentric layers.
- Core Wrapping: Two or more layers of plastic tape(s) with overlapping.
- Screen: 0.9/1.2/1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference).
- Inner Sheath: LSZH sheath, coloured green.
- Armour: Two layers of steel tape (0.8mm thick).
- Outer Sheath: LSZH sheath, coloured green.
Electrical Characteristics at 20℃
| Nominal Conductor Diameter | mm | 0.9 | 1.4 |
| Maximum Conductor Resistance | Ω/km | 28.5 | 11.7 |
| Minimum Insulation Resistance @500 V DC | MΩ.km | 35000 | 35000 |
| Mutual Capacitance @800Hz | nF/km | 41 | 45 |
| Capacitance Unbalance @800Hz | |||
| K1 maximum individual value | pF/460m | 250 | 250 |
| K9-12 maximum individual value | pF/460m | 250 | 250 |
| ea1/2 maximum individual value | pF/460m | 1200 | 1200 |
| Attenuation | |||
| @1KHz | dB/km | 0.7 | 0.46 |
| @10KHz | dB/km | 1.6 | 0.85 |
| @30KHz | dB/km | 2.1 | 1.3 |
| Test Voltage @50Hz 1min | |||
| Core to Core | Veff | 2100 | 2100 |
| Core to Screen | Veff | 2500 | 2500 |
| Core to Armouring | Veff | 2000 | 2000 |
| Reduction Factor @100V/km 50Hz | 0.1 | 0.1 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 10×OD
- Temperature Range: -40℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)
Dimensions and Weight
| Cable Code | Number of Quads |
Nominal Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
|---|---|---|---|---|---|
| Inner | Outer | ||||
| 0.9mm Conductor, 1.8mm Insulated Wire | |||||
| RS/CCTSST-FR0.1-2YDHBH-1Q0.9 | 1 | 1.5 | 1.6 | 20.6 | 1170 |
| RS/CCTSST-FR0.1-2YDHBH-3Q0.9 | 3 | 1.5 | 1.6 | 24.7 | 1480 |
| RS/CCTSST-FR0.1-2YDHBH-5Q0.9 | 5 | 1.5 | 1.6 | 27.3 | 1740 |
| RS/CCTSST-FR0.1-2YDHBH-7Q0.9 | 7 | 1.5 | 1.6 | 29.6 | 1950 |
| RS/CCTSST-FR0.1-2YDHBH-10Q0.9 | 10 | 1.5 | 1.6 | 33.5 | 2320 |
| RS/CCTSST-FR0.1-2YDHBH-25Q0.9 | 25 | 1.7 | 1.8 | 44.2 | 3590 |
| 1.4mm Conductor, 2.7mm Insulated Wire | |||||
| RS/CCTSST-FR0.1-2YDHBH-10Q1.4 | 10 | 1.6 | 1.8 | 39.2 | 3140 |
