CCTSST-FR0.3 n×4×1.4
Application
The cables are used as railway cables and can be installed directly into the ground or in ducts.
Standard
- RENFE E.T. 03.365.051.6

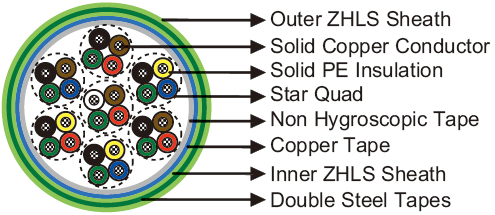

Cable Construction
 |
 |
- Conductors: Soft annealed solid copper, 1.4 mm nominal diameter.
- Insulation: PE.
- Cabling Element: Four insulated conductors are twisted together to form a quad.
- Stranding: Quads are helically stranded in concentric layers.
- Core Wrapping: Two or more layers of plastic tape(s) with overlapping.
- Screen: Copper tapes with overlap (protection against interference).
- Inner Sheath: LSZH sheath, coloured green.
- Armour: Two layers of steel tape (0.8mm thick).
- Outer Sheath: LSZH sheath, coloured green.
Electrical Characteristics at 20℃
| Nominal Conductor Diameter | mm | 1.4 |
| Maximum Conductor Resistance | Ω/km | 11.7 |
| Minimum Insulation Resistance @500 V DC | MΩ.km | 35000 |
| Mutual Capacitance @800Hz | nF/km | 45 |
| Capacitance Unbalance @800Hz | ||
| K1 maximum individual value | pF/460m | 250 |
| K9-12 maximum individual value | pF/460m | 250 |
| ea1/2 maximum individual value | pF/460m | 1200 |
| Test Voltage @50Hz 1min | ||
| Core to Core | Veff | 2100 |
| Core to Screen | Veff | 2500 |
| Reduction Factor @100V/km 50Hz | 0.3 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 10×OD
- Temperature Range: -40℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)
Dimensions and Weight
| Cable Code | Number of Quads |
Nominal Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
|---|---|---|---|---|---|
| Inner | Outer | ||||
| 1.4mm Conductor, 2.6mm Insulated Wire | |||||
| RS/CCTSST-FR0.3-2Y(K)HBH-1Q1.4 | 1 | 1.5 | 1.6 | 19.0 | 880 |
| RS/CCTSST-FR0.3-2Y(K)HBH-3Q1.4 | 3 | 1.5 | 1.6 | 27.1 | 1440 |
| RS/CCTSST-FR0.3-2Y(K)HBH-5Q1.4 | 5 | 1.5 | 1.6 | 31.0 | 1826 |
| RS/CCTSST-FR0.3-2Y(K)HBH-7Q1.4 | 7 | 1.5 | 1.6 | 33.1 | 2090 |
| RS/CCTSST-FR0.3-2Y(K)HBH-10Q1.4 | 10 | 1.7 | 1.8 | 38.4 | 2640 |
| RS/CCTSST-FR0.3-2Y(K)HBH-14Q1.4 | 14 | 1.7 | 1.8 | 42.2 | 3168 |
| RS/CCTSST-FR0.3-2Y(K)HBH-19Q1.4 | 19 | 1.8 | 2.0 | 47.2 | 3861 |
