K23 LSZH Subway Signalling Cables for Metro/Local Trains/Tramlines
Application
The cables are designed for remote control and teletransmission in underground railway networks. The cables can be laid in channel, cable tray, or on hook supports, along suburban railway lines electrifi ed at maximum 1500V DC.
Standard
- NF F 55-623

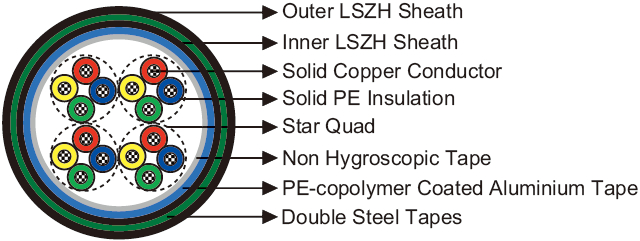

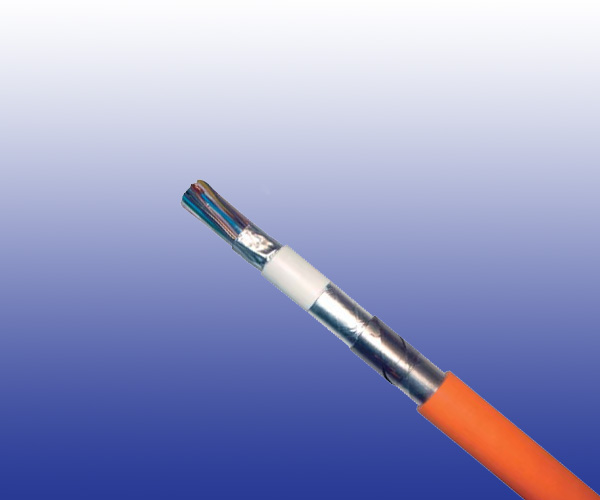

Cable Construction
 |
 |
- Conductors: Copper wire, 0.6, 0.8, 1.0 or 1.2 mm nominal diameter.
- Insulation: Solid polyethylene.
- Cabling Element: Four conductors are twisted to form a star quad. For 1 & 4 pair cables, conductors shall be twisted in pairs.
- Stranding: Quads are stranded in helically laid concentric layers or units to form the cable core.
- Core Wrapping: Plastic tape(s) with overlapping.
- Moisture Barrier: One laminated sheath made of aluminium tape coated with PE-Copolymer on at least one side is applied with longitudinally overlap.
- Inner Sheath: LSZH fi re retardant compound.
- Armour: Two helically applied steel tapes.
- Outer Sheath: LSZH fire retardant compound.
Electrical Characteristics at 20℃
| Nominal Conductor Diameter | mm | 0.6 | 0.8 | 1.0 | 1.2 |
| Maximum Average DC Conductor Resistance | Ω/km | 64.0 | 36.0 | 23.0 | 16.0 |
| Minimum Insulation Resistance @500 V DC (3min) | MΩ.km | 5000 | 5000 | 5000 | 5000 |
| Maximum Mutual Capacitance @1000Hz (AC) | nF/km | 57.5 | 57.5 | 57.5 | 57.5 |
| Maximum Capacitance Unbalance @800Hz | |||||
| K1 (side to side) | pF/500m | 435 | 435 | 435 | 435 |
| K9-12 (quad to quad) | pF/500m | 220 | 220 | 220 | 220 |
| Operating Voltages | V | 200 | 400 | 500 | 750 |
| Maximum Permissible Current | A | 0.35 | 0.63 | 1.0 | 1.4 |
| Dielectric Strength (DC voltage 1min) | |||||
| Conductor to Conductor | V | 1500 | 2000 | 3000 | 3000 |
| Conductor to Screen | V | 1500 | 1500 | 1500 | 1500 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 8×OD (static); 16×OD (dynamic)
- Temperature Range: -40℃ to +60℃ (during operation); -20℃ to +50℃ (during installation)
Dimensions and Weight
| Cable Code | Number of Pairs |
Spare pairs |
Minimum Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
|---|---|---|---|---|---|---|
| Inner | Outer | |||||
| 0.6mm Conductor, 0.96mm Insulated Wire (6/10) | ||||||
| RS/K23-2Y(L)HBH-2P0.6 | 2 | - | 1.0 | 1.0 | 10.5 | 130 |
| RS/K23-2Y(L)HBH-4P0.6 | 4 | - | 1.0 | 1.0 | 14.0 | 171 |
| RS/K23-2Y(L)HBH-8P0.6 | 8 | - | 1.0 | 1.0 | 16.5 | 215 |
| RS/K23-2Y(L)HBH-14P0.6 | 14 | - | 1.0 | 1.2 | 17.5 | 290 |
| RS/K23-2Y(L)HBH-20P0.6 | 20 | - | 1.0 | 1.2 | 18.5 | 350 |
| RS/K23-2Y(L)HBH-28P0.6 | 28 | - | 1.0 | 1.4 | 21.0 | 441 |
| RS/K23-2Y(L)HBH-38P0.6 | 38 | - | 1.0 | 1.4 | 21.5 | 533 |
| RS/K23-2Y(L)HBH-56P0.6 | 56 | - | 1.0 | 1.4 | 23.0 | 700 |
| RS/K23-2Y(L)HBH-84P0.6 | 84 | - | 1.0 | 1.6 | 28.0 | 970 |
| RS/K23-2Y(L)HBH-112P0.6 | 112 | - | 1.0 | 1.6 | 30.5 | 1190 |
| RS/K23-2Y(L)HBH-168P0.6 | 168 | 2 | 1.0 | 1.8 | 38.0 | 1847 |
| RS/K23-2Y(L)HBH-224P0.6 | 224 | 2 | 1.0 | 2.0 | 44.0 | 2675 |
| RS/K23-2Y(L)HBH-280P0.6 | 280 | 2 | 1.0 | 2.0 | 51.0 | 3185 |
| RS/K23-2Y(L)HBH-336P0.6 | 336 | 4 | 1.0 | 2.0 | 57.0 | 3680 |
| RS/K23-2Y(L)HBH-392P0.6 | 392 | 4 | 1.0 | 2.0 | 58.5 | 4168 |
| RS/K23-2Y(L)HBH-448P0.6 | 448 | 4 | 1.0 | 2.2 | 67.0 | 4647 |
| RS/K23-2Y(L)HBH-784P0.6 | 784 | 4 | 1.0 | 2.2 | 90.5 | 7406 |
| RS/K23-2Y(L)HBH-896P0.6 | 896 | 6 | 1.0 | 2.2 | 102.5 | 8315 |
| 0.8mm Conductor, 1.27 mm Insulated Wire (8/10) | ||||||
| RS/K23-2Y(L)HBH-2P0.8 | 2 | - | 1.0 | 1.0 | 11.5 | 155 |
| RS/K23-2Y(L)HBH-4P0.8 | 4 | - | 1.0 | 1.0 | 15.5 | 216 |
| RS/K23-2Y(L)HBH-8P0.8 | 8 | - | 1.0 | 1.2 | 17.5 | 298 |
| RS/K23-2Y(L)HBH-14P0.8 | 14 | - | 1.0 | 1.4 | 20.5 | 412 |
| RS/K23-2Y(L)HBH-20P0.8 | 20 | - | 1.0 | 1.4 | 23.0 | 512 |
| RS/K23-2Y(L)HBH-28P0.8 | 28 | - | 1.0 | 1.4 | 24.5 | 637 |
| RS/K23-2Y(L)HBH-38P0.8 | 38 | - | 1.0 | 1.6 | 26.5 | 805 |
| RS/K23-2Y(L)HBH-56P0.8 | 56 | - | 1.0 | 1.6 | 32.0 | 1096 |
| RS/K23-2Y(L)HBH-84P0.8 | 84 | - | 1.0 | 1.8 | 39.0 | 1504 |
| RS/K23-2Y(L)HBH-112P0.8 | 112 | - | 1.0 | 1.8 | 40.5 | 1880 |
| 1.0mm Conductor, 1.8mm Insulated Wire (10/10) | ||||||
| RS/K23-2Y(L)HBH-2P1 | 2 | - | 1.0 | 1.0 | 12.0 | 195 |
| RS/K23-2Y(L)HBH-4P1 | 4 | - | 1.0 | 1.2 | 17.5 | 298 |
| RS/K23-2Y(L)HBH-8P1 | 8 | - | 1.0 | 1.4 | 20.5 | 431 |
| RS/K23-2Y(L)HBH-14P1 | 14 | - | 1.0 | 1.4 | 23.5 | 587 |
| RS/K23-2Y(L)HBH-20P1 | 20 | - | 1.0 | 1.6 | 25.0 | 762 |
| RS/K23-2Y(L)HBH-28P1 | 28 | - | 1.0 | 1.6 | 29.0 | 981 |
| RS/K23-2Y(L)HBH-38P1 | 38 | - | 1.0 | 1.6 | 31.5 | 1243 |
| RS/K23-2Y(L)HBH-56P1 | 56 | - | 1.0 | 1.8 | 38.5 | 1683 |
| RS/K23-2Y(L)HBH-84P1 | 84 | - | 1.0 | 2.0 | 46.5 | 2340 |
| RS/K23-2Y(L)HBH-112P1 | 112 | - | 1.0 | 2.0 | 51.5 | 2944 |
| 1.2mm Conductor, 2.0mm Insulated Wire (12/10) | ||||||
| RS/K23-2Y(L)HBH-1P1.2 | 1 | - | 1.0 | 1.2 | 14.0 | 188 |
| RS/K23-2Y(L)HBH-2P1.2 | 2 | - | 1.0 | 1.2 | 14.5 | 230 |
| RS/K23-2Y(L)HBH-4P1.2 | 4 | - | 1.0 | 1.4 | 20.0 | 357 |
| RS/K23-2Y(L)HBH-8P1.2 | 8 | - | 1.0 | 1.4 | 24.0 | 509 |
| RS/K23-2Y(L)HBH-14P1.2 | 14 | - | 1.0 | 1.4 | 25.0 | 710 |
| RS/K23-2Y(L)HBH-20P1.2 | 20 | - | 1.0 | 1.6 | 29.0 | 950 |
| RS/K23-2Y(L)HBH-28P1.2 | 28 | - | 1.0 | 1.6 | 31.5 | 1213 |
