SW-CLT Switching Centre Cables
Application
The cables are used as block cables for railway. The cables are suitable for connection between local switching centre and the trackside and signalling equipments.
Standard
- CFF: I-EB-SK 3001.82.1000

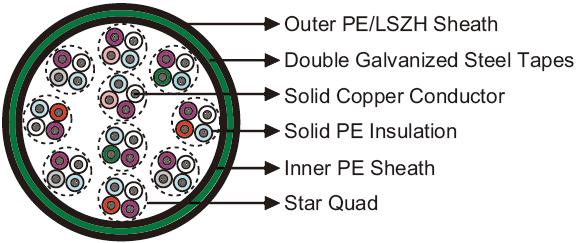

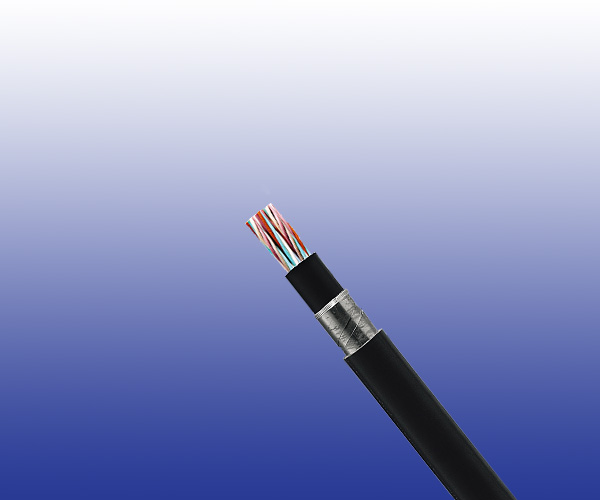

Cable Construction
 |
 |
- Conductors: Class 1 solid copper, 1.0/1.5/2.2mm nominal diameter
- Insulation: Solid polyethylene.
- Cabling Element: Four conductors are twisted together to form a quad.
- Inner Sheath: PE sheath.
- Armour: Double galvanized steel tapes of 0.15mm.
- Outer Sheath: PE/LSZH sheath.
- Optional:
- Unarmoured Cable: The cables offered without galvanized steel tapes (SW).
- Traction Armoured Cable: The cables offered with galvanized steel fl at wire armour with or without protection sheath (SW-F/FT).
- Halogenfree Sheathed Cable: The cables offered with LSZH sheath according to IEC 60332-3C (SW-CLN/FN).
Electrical Characteristics at 20℃
| Nominal Conductor Diameter | mm | 1.0 | 1.5 | 2.2 |
| Maximum Conductor Resistance (DC) | Ω/km | 47.0 | 20.9 | 10.0 |
| Minimum Insulation Resistance @500 V DC (3mins) | MΩ.km | 10000 | 10000 | 10000 |
| Maximum Mutual Capacitance @800Hz | nF/km | 42 | 52 | 60 |
| Maximum Capacitance Unbalance | ||||
| In quad | pF/km | 400 | 400 | 400 |
| Between quads | pF/km | 400 | 400 | 400 |
| Real-ground | pF/km | 650 | 650 | 650 |
| Operating Voltage AC/DC | V | 500/80 | ||
Mechanical and Thermal Properties
- Minimum Bending Radius: 10×OD
- Temperature Range: -30℃ to +60℃ (during operation); -10℃ +60℃ (during installation)
Dimensions and Weight
| Cable Code | No. of Quads |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
|---|---|---|---|---|---|
| Inner | Outer | ||||
| 1.0mm Conductor, 1.8mm Insulated Wire | |||||
| RS/SW-CLT-2Y2YB2Y-1Q1 | 1 | 1.0 | 1.5 | 12.7 | 161 |
| RS/SW-CLT-2Y2YB2Y-2Q1 | 2 | 1.0 | 1.5 | 17.5 | 335 |
| RS/SW-CLT-2Y2YB2Y-3Q1 | 3 | 1.0 | 1.7 | 18.3 | 390 |
| RS/SW-CLT-2Y2YB2Y-4Q1 | 4 | 1.0 | 1.7 | 20.4 | 455 |
| RS/SW-CLT-2Y2YB2Y-5Q1 | 5 | 1.0 | 1.7 | 21.7 | 543 |
| RS/SW-CLT-2Y2YB2Y-7Q1 | 7 | 1.2 | 1.8 | 23.3 | 640 |
| RS/SW-CLT-2Y2YB2Y-10Q1 | 10 | 1.2 | 2.0 | 28.4 | 896 |
| RS/SW-CLT-2Y2YB2Y-15Q1 | 15 | 1.2 | 2.2 | 33.0 | 1260 |
| RS/SW-CLT-2Y2YB2Y-20Q1 | 20 | 1.2 | 2.3 | 37.1 | 1590 |
| RS/SW-CLT-2Y2YB2Y-25Q1 | 25 | 1.2 | 2.4 | 41.7 | 1960 |
| RS/SW-CLT-2Y2YB2Y-30Q1 | 30 | 1.3 | 2.5 | 43.2 | 2130 |
| 1.5mm Conductor, 2.8mm Insulated Wire | |||||
| RS/SW-CLT-2Y2YB2Y-1Q1.5 | 1 | 1.0 | 1.5 | 15.1 | 240 |
| RS/SW-CLT-2Y2YB2Y-2Q1.5 | 2 | 1.0 | 1.5 | 23.6 | 491 |
| RS/SW-CLT-2Y2YB2Y-3Q1.5 | 3 | 1.0 | 1.7 | 24.4 | 585 |
| RS/SW-CLT-2Y2YB2Y-4Q1.5 | 4 | 1.0 | 1.7 | 27.5 | 684 |
| RS/SW-CLT-2Y2YB2Y-5Q1.5 | 5 | 1.0 | 1.7 | 30.5 | 793 |
| RS/SW-CLT-2Y2YB2Y-7Q1.5 | 7 | 1.2 | 1.8 | 32.9 | 1030 |
| RS/SW-CLT-2Y2YB2Y-10Q1.5 | 10 | 1.2 | 2.0 | 42.5 | 1460 |
| RS/SW-CLT-2Y2YB2Y-15Q1.5 | 15 | 1.2 | 2.2 | 49.2 | 2060 |
| RS/SW-CLT-2Y2YB2Y-20Q1.5 | 20 | 1.2 | 2.3 | 57.0 | 2600 |
| RS/SW-CLT-2Y2YB2Y-25Q1.5 | 25 | 1.2 | 2.4 | 62.8 | 3300 |
| RS/SW-CLT-2Y2YB2Y-30Q1.5 | 30 | 1.3 | 2.5 | 64.4 | 3660 |
| 2.2mm Conductor, 3.8mm Insulated Wire | |||||
| RS/SW-CLT-2Y2YB2Y-1Q2.2 | 1 | 1.0 | 1.5 | 13.1 | 346 |
| RS/SW-CLT-2Y2YB2Y-2Q2.2 | 2 | 1.0 | 1.5 | 20.4 | 573 |
| RS/SW-CLT-2Y2YB2Y-3Q2.2 | 3 | 1.0 | 1.7 | 21.4 | 934 |
| RS/SW-CLT-2Y2YB2Y-4Q2.2 | 4 | 1.0 | 1.7 | 23.1 | 1329 |
| RS/SW-CLT-2Y2YB2Y-5Q2.2 | 5 | 1.0 | 1.7 | 25.5 | 1380 |
| RS/SW-CLT-2Y2YB2Y-7Q2.2 | 7 | 1.2 | 1.8 | 27.4 | 1730 |
| RS/SW-CLT-2Y2YB2Y-10Q2.2 | 10 | 1.2 | 2.0 | 33.7 | 2560 |
| RS/SW-CLT-2Y2YB2Y-15Q2.2 | 15 | 1.2 | 2.2 | 39.2 | 3630 |
| RS/SW-CLT-2Y2YB2Y-20Q2.2 | 20 | 1.2 | 2.3 | 43.4 | 4780 |
| RS/SW-CLT-2Y2YB2Y-25Q2.2 | 25 | 1.2 | 2.4 | 50.1 | 5850 |
| RS/SW-CLT-2Y2YB2Y-30Q2.2 | 30 | 1.3 | 2.5 | 51.8 | 6580 |
