FIREROL FRL-SW-05M-OS-AS+, FRL-SW-1M-OS-AS+

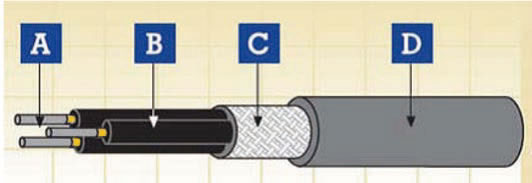

A. Conductor B. Insulation C. Screen D. Sheath

Application

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction

Conductor

Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5

Insulation

LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 105)

Overal screen

Tinned annealed copper wires

Outer sheath

LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104)

Electrical & Mechanical Properties

Nominal Voltage 300/500 V or 0.6/1 kV
Maximum Conductor Temperature +90 deg (fixed installation)
Minimum Permissible Ambient Temperature -25/-40 deg (fixed installation)
Bending Radius 10 x Overall Diameter







Chemical & Environmental Properties

EN 60684-2 No fluorine
EN 50305; EN 60811-2-1 Resistance to oil & fuel
EN 50305 Resistance to ozone





Fire Performance for rolling stock application

EN 50306-2 Hazard levels HL1, HL2/HL3, HL4
DIN 5510-2 Protection level 1/2/3/4
BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101 FO





Fire Performance in general

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804
Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816
Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815 Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 Low Corrosivity (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 Low Toxicity
NFF 16101; NFF 63808; BS6853 Smoke index
IEC60331-21 The circuit integrity test under fire of cables rated 0.6/1.0kV and below

FRL-SW-05M-OS-AS+ 300/500 V

Number
And Nominal
Cross-Sectional
Area(a)

Conductor
Diameter
(b)

Min. Mean
Thickness
of Insulation

Diameter of Core(b)

Min Wire
Diameter
of Screen

Min. Mean
Thickness
of Sheath

Overall
Diameter

Weight

Maximum Conductor Resistance

Insulation Resistance

EI 105

EI 101-EI 104

Min

Max

Min

Max

20°C

20°C

20°C

n x mm2

mm

mm

mm

mm

mm

mm

mm

mm

kg/km

Ω/km

MΩ x km

MΩ x km

2x1

1.25

0.6

2.7

3.1

0.16

1.4

8.3

9.8

129

20.0

140

70

4x1

0.6

2.7

3.1

0.16

1.4

9.2

10.9

188

20.0

140

70

7x1

0.6

2.7

3.1

0.16

1.4

10.6

12.5

275

20.0

140

70

9x1

0.6

2.7

3.1

0.21

1.4

12.7

14.9

360

20.0

140

70

12x1

0.6

2.7

3.1

0.21

1.4

13.5

15.9

445

20.0

140

70

19x1

0.6

2.7

3.1

0.26

1.5

15.9

18.7

665

20.0

140

70

24x1

0.6

2.7

3.1

0.26

1.6

18.3

21.5

832

20.0

140

70

32x1

0.6

2.7

3.1

0.26

1.6

19.9

23.4

1043

20.0

140

70

37x1

0.6

2.7

3.1

0.26

1.7

20.9

24.5

1181

20.0

140

70

40x1

0.6

2.7

3.1

0.26

1.7

21.6

25.4

1263

20.0

140

70

4x1.5

1.5

0.7

3.0

3.5

0.16

1.4

10.3

12.1

244

13.7

120

60

7x1.5

0.7

3.0

3.5

0.21

1.4

12.1

14.3

380

13.7

120

60

9x1.5

0.7

3.0

3.5

0.21

1.4

14.3

16.8

476

13.7

120

60

12x1.5

0.7

3.0

3.5

0.21

1.5

16.0

18.8

604

13.7

120

60

19x1.5

0.7

3.0

3.5

0.26

1.5

18.0

21.1

895

13.7

120

60

24x1.5

0.7

3.0

3.5

0.26

1.6

20.9

24.5

1120

13.7

120

60

32x1.5

0.7

3.0

3.5

0.26

1.7

22.9

26.9

1430

13.7

120

60

37x1.5

0.7

3.0

3.5

0.26

1.7

23.8

27.9

1610

13.7

120

60

4x2.5

1.95

0.8

3.6

4.2

0.21

1.4

12.0

14.2

330

8.21

90

45

7x2.5

0.8

3.6

4.2

0.21

1.4

13.9

16.4

500

8.21

90

45

9x2.5

0.8

3.6

4.2

0.26

1.5

17.0

20.0

670

8.21

90

45

12x2.5

0.8

3.6

4.2

0.26

1.5

18.2

21.4

830

8.21

90

45

19x2.5

0.8

3.6

4.2

0.26

1.6

21.3

24.9

1200

8.21

90

45

24x2.5

0.8

3.6

4.2

0.26

1.8

24.9

28.9

1560

8.21

90

45

(a)= One earth conductor (green/yellow) can be included upon request

(b)= For information,indicative only

FRL-SW-1M-OS-AS+ 0.6/1 kV

Number
And Nominal
Cross-Sectional
Area(a)

Conductor
Diameter
(b)

Min. Mean
Thickness
of Insulation

Diameter of Core(b)

Min Wire
Diameter
of Screen

Min. Mean
Thickness
of Sheath

Overall
Diameter

Weight

Maximum Conductor Resistance

Insulation Resistance

EI 105

EI 101-EI 104

Min

Max

Min

Max

20°C

20°C

20°C

mm2

mm

mm

mm

mm

mm

mm

mm

mm

kg/km

Ω/km

MΩ x km

MΩ x km

TWO CORES

1.5

1.5

0.8

3.3

3.8

0.16

1.4

9.5

11.2

166

13.7

150

75

2.5

1.95

0.8

3.7

4.2

0.16

1.4

10.4

12.2

207

8.21

130

65

4

2.5

0.8

4.2

4.9

0.21

1.4

11.7

13.7

273

5.09

110

55

6

3.0

0.9

4.9

5.7

0.21

1.4

13.1

15.4

351

3.39

90

45

10

3.9

1.1

6.1

7.1

0.21

1.5

15.7

18.5

515

1.95

85

45

16

5.0

1.1

7.5

8.8

0.26

1.5

18.1

21.2

710

1.24

70

35

25

6.4

1.3

8.9

10.3

0.26

1.7

21.8

25.6

1035

0.795

65

35

35

7.7

1.3

10.5

11.8

0.31

1.8

24.6

28.9

1339

0.565

60

30

50

9.2

1.5

11.9

13.8

0.31

1.9

28.4

33.3

1810

0.393

55

30

THREE CORES

1.5

1.5

0.8

3.3

3.8

0.16

1.4

10.0

11.7

205

13.7

150

75

2.5

1.95

0.8

3.7

4.2

0.16

1.4

10.9

12.8

261

8.21

130

65

4

2.5

0.8

4.2

4.9

0.21

1.4

12.2

14.4

349

5.09

110

55

6

3.0

0.9

4.9

5.7

0.21

1.4

13.8

16.3

457

3.39

90

45

10

3.9

1.1

6.1

7.1

0.26

1.5

16.9

19.9

704

1.95

85

45

16

5.0

1.1

7.5

8.8

0.26

1.6

19.3

22.6

960

1.24

70

35

25

6.4

1.3

8.9

10.3

0.26

1.7

23.1

27.1

1400

0.795

65

35

35

7.7

1.3

10.5

11.8

0.31

1.8

26.2

30.8

1827

0.565

60

30

50

9.2

1.5

11.9

13.8

0.31

2.0

30.5

35.7

2513

0.393

55

30

FOUR CORES

1.5

1.5

0.8

3.3

3.8

0.16

1.4

10.7

12.6

248

13.7

150

75

2.5

1.95

0.8

3.7

4.2

0.21

1.4

12.0

14.2

335

8.21

130

65

4

2.5

0.8

4.2

4.9

0.21

1.4

13.3

15.6

430

5.09

110

55

6

3.0

0.9

4.9

5.7

0.21

1.4

15.1

17.7

570

3.39

90

45

10

3.9

1.1

6.1

7.1

0.26

1.6

18.6

21.9

896

1.95

85

45

16

5.0

1.1

7.5

8.8

0.26

1.7

21.3

24.9

1200

1.24

70

35

25

6.4

1.3

8.9

10.3

0.31

1.8

25.8

30.2

1815

0.795

65

35

3X35+25

7.7/6.4

1.3/1.3

10.5/8.9

11.8/10.3

0.31

1.9

30.2

35.4

2200

0.565/0.795

60

30

3X50+25

9.2/6.4

1.5/1.3

11.9/8.9

13.8/10.3

0.31

2.1

35.1

41.1

2600

0.393/0.795

55

30

(a)= For information,indicative only
