		JIS Shipboard Cables

3.6/6KV, 6/10KV, 8.7/15KV

0.6/1kV

250V

0.6/1kV

[FA-] SPYCS, SPYCBS, DPYCS, TPYCS, FPYCS
[FA-] SPYCYS, SPYCBYS, DPYCYS, TPYCYS, FPYCYS

STANDARDS
JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

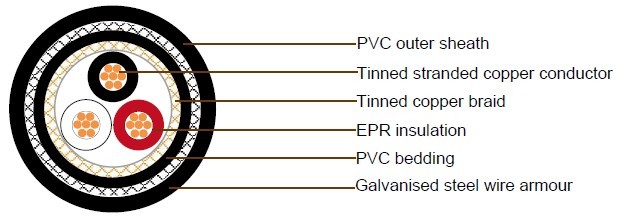

CABLE CONSTRUCTION

Conductor	S(D,T)	Tinned annealed stranded copper, class 2 according to IEC 60228
Insulation	P	85°C EPR as per JIS C 3410
Cabling		Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used
Overall Shield	S	Tinned copper wire braid
Bedding	Y	PVC as per JIS C 3410
Armor	C (CB)	Galvanized steel wire braid(-C TYPE) or copper alloy wire braid(-CB TYPE)
Sheath	Y	PVC as per JIS C 3410
Core identification		1C Black 2C Black, White 3C Black, White, Red
Outer sheath color		Black

Cable Parameter

0.6/1KV (FA-) SPYCS, SPYCBS

Conductor			Thick. of insul- ation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of armor wire	(FA-) SPYCS, SPYCBS
Size	Construction	O.D	Thick. of insul- ation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of armor wire	Nom. overall dia.	Tolerance	Cable weight
mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	0.12	1	6.4	0.3	8	0.4	110
2.5	7/0.67	2.01	1	0.12	1	6.9	0.3	8.5	0.4	130
4	7/0.85	2.55	1	0.12	1	7.5	0.3	9.1	0.5	150
6	7/1.04	3.12	1	0.14	1	8.1	0.3	9.7	0.5	180
10	7/1.35	4.05	1	0.14	1.1	9.4	0.3	11	0.6	240
16	7/1.70	5.1	1	0.14	1.1	10.4	0.3	12	0.6	320
25	7/2.14	6.42	1.2	0.14	1.2	12.3	0.3	13.9	0.7	450
35	7/2.52	7.56	1.2	0.16	1.2	13.6	0.3	15.2	0.8	550
50	19/1.78	8.9	1.4	0.16	1.3	15.7	0.3	17.3	0.9	710
70	19/2.14	10.7	1.6	0.16	1.4	18.1	0.3	19.7	1	980
95	19/2.52	12.6	1.6	0.16	1.5	20.3	0.3	21.9	1.1	1280
120	37/2.03	14.2	1.6	0.18	1.6	22.2	0.3	23.8	1.2	1570
150	37/2.25	15.8	1.8	0.18	1.6	24.2	0.3	25.8	1.3	1900
185	37/2.52	17.6	2	0.18	1.7	26.6	0.3	28.2	1.4	2310
240	61/2.25	20.3	2.2	0.2	1.8	30.1	0.4	32.2	1.6	2980
300	61/2.52	22.7	2.4	0.2	2	33.4	0.4	35.5	1.8	3750

0.6/1KV (FA-) SPYCYS, SPYCBYS

Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of armor wire	Thick. of covering	(FA-) SPYCYS, SPYCBYS
Size	Construction	O.D	Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of armor wire	Thick. of covering	Nom. overall dia.	Tolerance	Cable weight
mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	0.12	1	6.4	0.3	0.8	9.9	0.5	150
2.5	7/0.67	2.01	1	0.12	1	6.9	0.3	0.8	10.6	0.5	160
4	7/0.85	2.55	1	0.12	1	7.5	0.3	0.8	11.2	0.6	185
6	7/1.04	3.12	1	0.14	1	8.1	0.3	0.8	12.1	0.6	220
10	7/1.35	4.05	1	0.14	1.1	9.4	0.3	0.9	13.4	0.7	280
16	7/1.70	5.1	1	0.14	1.1	10.4	0.3	0.9	14.6	0.7	370
25	7/2.14	6.42	1.2	0.14	1.2	12.3	0.3	0.9	16.5	0.8	500
35	7/2.52	7.56	1.2	0.16	1.2	13.6	0.3	1	18	0.9	620
50	19/1.78	8.9	1.4	0.16	1.3	15.7	0.3	1	20.3	1	790
70	19/2.14	10.7	1.6	0.16	1.4	18.1	0.3	1.1	22.9	1.1	1100
95	19/2.52	12.6	1.6	0.16	1.5	20.3	0.3	1.1	21.9	1.1	1400
120	37/2.03	14.2	1.6	0.18	1.6	22.2	0.3	1.2	23.8	1.2	1700
150	37/2.25	15.8	1.8	0.18	1.6	24.2	0.3	1.2	25.8	1.3	2020
185	37/2.52	17.6	2	0.18	1.7	26.6	0.3	1.3	28.2	1.4	2500
240	61/2.25	20.3	2.2	0.2	1.8	30.1	0.4	1.4	32.2	1.6	3200
300	61/2.52	22.7	2.4	0.2	2	33.4	0.4	1.5	35.5	1.8	4000

0.6/1KV (FA-) DPYCS

Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of steel wire	(FA-) DPYCS
Size	Construction	O.D	Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of steel wire	Nom. overall dia.	Tolerance	Cable weight
mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1.0	0.14	1.2	11.3	0.3	12.6	0.5	265
2.5	7/0.67	2.01	1.0	0.14	1.2	12.2	0.3	13.5	0.5	310
4	7/0.85	2.55	1.0	0.16	1.2	13.4	0.3	14.7	0.6	380
6	7/1.04	3.12	1.0	0.16	1.3	14.4	0.3	15.9	0.8	460
10	7/1.35	4.05	1.0	0.16	1.3	16.4	0.3	18.0	0.9	610
16	7/1.70	5.1	1.0	0.16	1.4	18.7	0.3	20.2	1.0	790
25	7/2.14	6.42	1.2	0.18	1.6	22.5	0.3	24.1	1.2	1100
35	7/2.52	7.56	1.2	0.18	1.7	25.0	0.3	26.6	1.3	1400
50	19/1.78	8.9	1.4	0.18	1.8	29.1	0.3	30.6	1.5	1800
70	19/2.14	10.7	1.6	0.2	2.0	34.0	0.4	36.1	1.8	2640
95	19/2.52	12.6	1.6	0.26	2.2	38.7	0.4	40.7	2.0	3410
120	37/2.03	14.2	1.6	0.26	2.3	42.1	0.4	44.2	2.2	3900
150	37/2.25	15.8	1.8	0.18	1.6	24.2	0.3	25.8	1.3	1900
185	37/2.52	17.6	2	0.18	1.7	26.6	0.3	28.2	1.4	2310
240	61/2.25	20.3	2.2	0.2	1.8	30.1	0.4	32.2	1.6	2980
300	61/2.52	22.7	2.4	0.2	2	33.4	0.4	35.5	1.8	3750

0.6/1KV (FA-) DPYCYS

Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of steel wire	Thick. of covering	(FA-) DPYCYS
Size	Construction	O.D	Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of steel wire	Thick. of covering	Nom. overall dia.	Tolerance	Cable weight
mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1.0	0.14	1.2	11.3	0.3	0.9	14.6	0.6	325
2.5	7/0.67	2.01	1.0	0.14	1.2	12.2	0.3	0.9	15.5	0.6	375
4	7/0.85	2.55	1.0	0.16	1.2	13.4	0.3	1.0	16.9	0.7	455
6	7/1.04	3.12	1.0	0.16	1.3	14.4	0.3	1.0	18.1	0.9	550
10	7/1.35	4.05	1.0	0.16	1.3	16.4	0.3	1.0	20.2	1.0	710
16	7/1.70	5.1	1.0	0.16	1.4	18.7	0.3	1.1	22.6	1.1	910
25	7/2.14	6.42	1.2	0.18	1.6	22.5	0.3	1.2	26.7	1.3	1290
35	7/2.52	7.56	1.2	0.18	1.7	25.0	0.3	1.3	29.3	1.5	1620
50	19/1.78	8.9	1.4	0.18	1.8	29.1	0.3	1.4	33.6	1.7	2030
70	19/2.14	10.7	1.6	0.2	2.0	34.0	0.4	1.5	39.3	2.0	2900
95	19/2.52	12.6	1.6	0.26	2.2	38.7	0.4	1.6	44.2	2.2	3700
120	37/2.03	14.2	1.6	0.26	2.3	42.1	0.4	1.7	47.9	2.4	4320
150	37/2.25	15.8	1.8	0.18	1.6	24.2	0.3	1.2	25.8	1.3	2020
185	37/2.52	17.6	2	0.18	1.7	26.6	0.3	1.3	28.2	1.4	2500
240	61/2.25	20.3	2.2	0.2	1.8	30.1	0.4	1.4	32.2	1.6	3200
300	61/2.52	22.7	2.4	0.2	2	33.4	0.4	1.5	35.5	1.8	4000

0.6/1KV (FA-) TPYCS

Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of steel wire	(FA-) TPYCS
Size	Construction	O.D	Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of steel wire	Nom. overall dia.	Tolerance	Cable weight
mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1.0	0.14	1.2	11.9	0.3	13.2	0.5	305
2.5	7/0.67	2.01	1.0	0.14	1.2	12.9	0.3	14.2	0.6	360
4	7/0.85	2.55	1.0	0.16	1.3	14.4	0.3	15.7	0.6	455
6	7/1.04	3.12	1.0	0.16	1.3	15.3	0.3	16.8	0.8	530
10	7/1.35	4.05	1.0	0.16	1.4	17.5	0.3	19.0	1.0	730
16	7/1.70	5.1	1.0	0.16	1.5	19.8	0.3	21.4	1.1	990
25	7/2.14	6.42	1.2	0.18	1.6	24.0	0.3	25.6	1.3	1400
35	7/2.52	7.56	1.2	0.18	1.7	26.7	0.3	28.2	1.4	1850
50	19/1.78	8.9	1.4	0.2	1.9	31.1	0.3	32.7	1.6	2450
70	19/2.14	10.7	1.6	0.26	2.1	36.6	0.4	38.7	1.9	3350
95	19/2.52	12.6	1.6	0.26	2.3	41.3	0.4	43.4	2.2	4390
120	37/2.03	14.2	1.6	0.26	2.4	45.0	0.4	47.1	2.4	5350
150	37/2.25	15.8	1.8	0.26	2.6	49.8	0.4	51.8	2.6	6100
185	37/2.52	17.6	2.0	0.26	2.8	54.9	0.4	57.0	2.9	7530

0.6/1KV (FA-) TPYCYS

Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of steel wire	Thick. of covering	(FA-) TPYCYS
Size	Construction	O.D	Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of steel wire	Thick. of covering	Nom. overall dia.	Tolerance	Cable weight
mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1.0	0.14	1.2	11.9	0.3	0.9	15.2	0.6	365
2.5	7/0.67	2.01	1.0	0.14	1.2	12.9	0.3	1.0	16.4	0.7	430
4	7/0.85	2.55	1.0	0.16	1.3	14.4	0.3	1.0	17.9	0.7	535
6	7/1.04	3.12	1.0	0.16	1.3	15.3	0.3	1.0	18.9	1.0	610
10	7/1.35	4.05	1.0	0.16	1.4	17.5	0.3	1.1	21.4	1.1	830
16	7/1.70	5.1	1.0	0.16	1.5	19.8	0.3	1.1	23.8	1.2	1100
25	7/2.14	6.42	1.2	0.18	1.6	24.0	0.3	1.2	28.2	1.4	1550
35	7/2.52	7.56	1.2	0.18	1.7	26.7	0.3	1.3	31.0	1.6	2020
50	19/1.78	8.9	1.4	0.2	1.9	31.1	0.3	1.4	35.7	1.8	2670
70	19/2.14	10.7	1.6	0.26	2.1	36.6	0.4	1.6	42.1	2.1	3650
95	19/2.52	12.6	1.6	0.26	2.3	41.3	0.4	1.7	47.0	2.3	4730
120	37/2.03	14.2	1.6	0.26	2.4	45.0	0.4	1.8	50.9	2.5	5740
150	37/2.25	15.8	1.8	0.26	2.6	49.8	0.4	1.9	55.9	2.8	6570
185	37/2.52	17.6	2.0	0.26	2.8	54.9	0.4	2.0	61.3	3.1	8080

0.6/1KV (FA-) FPYCS

Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of steel wire	(FA-) FPYCS
Size	Construction	O.D	Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of steel wire	Nom. overall dia.	Tolerance	Cable weight
mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1.0	0.14	1.2	12.4	0.3	14.0	0.7	400
2.5	7/0.67	2.01	1.0	0.16	1.2	13.7	0.3	15.3	0.8	480
4	7/0.85	2.55	1.0	0.16	1.3	15.1	0.3	16.7	0.8	600
6	7/1.04	3.12	1.0	0.16	1.4	16.7	0.3	18.3	0.9	740
10	7/1.35	4.05	1.0	0.16	1.4	19.1	0.3	20.7	1.0	1030
16	7/1.70	5.1	1.0	0.18	1.5	22.0	0.3	23.6	1.2	1350
25	7/2.14	6.42	1.2	0.18	1.7	26.5	0.3	28.1	1.4	1950
35	7/2.52	7.56	1.2	0.18	1.8	29.5	0.3	31.1	1.6	2540
50	19/1.78	8.9	1.4	0.20	2.0	34.5	0.4	36.6	1.8	3480
70	19/2.14	10.7	1.4	0.26	2.2	39.5	0.4	41.6	2.1	4750
95	19/2.52	12.6	1.6	0.26	2.4	45.9	0.4	48.0	2.4	6280
120	37/2.03	14.2	1.6	0.26	2.6	50.1	0.4	52.1	2.6	7590
150	37/2.25	15.8	1.8	0.26	2.8	55.3	0.4	57.4	2.9	9150
185	37/2.52	17.6	2.0	0.26	3.0	61.2	0.4	63.2	3.2	11150

0.6/1KV (FA-) FPYCYS

Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of steel wire	Thick. of covering	(FA-) TPYCYS
Size	Construction	O.D	Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. over bedding	Dia. of steel wire	Thick. of covering	Nom. overall dia.	Tolerance	Cable weight
mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1.0	0.14	1.2	12.4	0.3	1.0	16.0	0.8	490
2.5	7/0.67	2.01	1.0	0.16	1.2	13.7	0.3	1.0	17.4	0.9	580
4	7/0.85	2.55	1.0	0.16	1.3	15.1	0.3	1.0	18.9	0.9	720
6	7/1.04	3.12	1.0	0.16	1.4	16.7	0.3	1.1	20.5	1.0	880
10	7/1.35	4.05	1.0	0.16	1.4	19.1	0.3	1.1	23.1	1.2	1190
16	7/1.70	5.1	1.0	0.18	1.5	22.0	0.3	1.2	26.1	1.3	1550
25	7/2.14	6.42	1.2	0.18	1.7	26.5	0.3	1.3	30.9	1.5	2200
35	7/2.52	7.56	1.2	0.18	1.8	29.5	0.3	1.4	34.0	1.7	2780
50	19/1.78	8.9	1.4	0.20	2.0	34.5	0.4	1.5	39.8	2.0	3750
70	19/2.14	10.7	1.4	0.26	2.2	39.5	0.4	1.6	45.1	2.3	5280
95	19/2.52	12.6	1.6	0.26	2.4	45.9	0.4	1.8	51.8	2.6	6750
120	37/2.03	14.2	1.6	0.26	2.6	50.1	0.4	1.9	56.2	2.8	8150
150	37/2.25	15.8	1.8	0.26	2.8	55.3	0.4	2.0	61.8	3.1	1210
185	37/2.52	17.6	2.0	0.26	3.0	61.2	0.4	2.2	67.9	3.4	11980
