Flat Single Pair PFA Insulated
Application
These cables are used with thermocouples for temperature measurements.

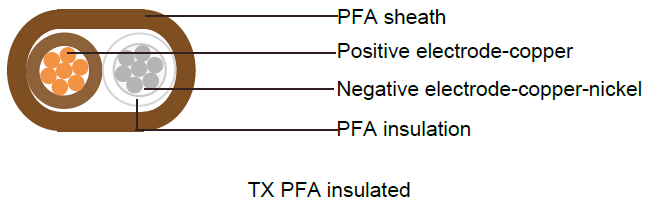

Specification
Conductor: Solid or stranded. Material is according to thermocouple type.
Insulation: PFA
Outer sheath: PFA or glass braid
Construction: Flat
Color code: According to IEC 60584-3
K Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 40 (0.08) | PFA | Glass Braid | 260 | 0.7 x 0.9 | 3.4 |
| 36 (0.13) | PFA | Glass Braid | 260 | 0.7 x 1.0 | 3.6 |
| 30 (0.25) | PFA | Glass Braid | 260 | 0.9 x 1.2 | 4.5 |
K Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 40 (0.08) | PFA | PFA | 260 | 0.4 x 0.7 | 3.4 |
| 36 (0.13) | PFA | PFA | 260 | 0.5 x 0.8 | 3.6 |
| 30 (0.25) | PFA | PFA | 260 | 0.6 x 1.0 | 4.0 |
| 24 (0.51) | PFA | PFA | 260 | 1.4 x 2.4 | 10.0 |
| 24 (7/0.2) | PFA | PFA | 260 | 1.6 x 2.6 | 10.5 |
| 22 (7/0.25) | PFA | PFA | 260 | 1.7 x 3.4 | 13.4 |
| 20 (0.81) | PFA | PFA | 260 | 1.7 x 3.0 | 16.7 |
| 20 (7/0.32) | PFA | PFA | 260 | 1.9 x 3.2 | 17.1 |
E Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 40 (0.08) | PFA | PFA | 260 | 0.4 x 0.7 | 3.4 |
| 36 (0.13) | PFA | PFA | 260 | 0.5 x 0.8 | 3.6 |
| 30 (0.25) | PFA | PFA | 260 | 0.6 x 1.0 | 4.0 |
| 24 (0.51) | PFA | PFA | 260 | 1.4 x 2.4 | 10.0 |
| 24 (7/0.2) | PFA | PFA | 260 | 1.6 x 2.6 | 10.5 |
| 22 (7/0.25) | PFA | PFA | 260 | 1.7 x 3.4 | 13.4 |
| 20 (0.81) | PFA | PFA | 260 | 1.7 x 3.0 | 16.7 |
| 20 (7/0.32) | PFA | PFA | 260 | 1.9 x 3.2 | 17.1 |
J Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 40 (0.08) | PFA | PFA | 260 | 0.4 x 0.7 | 3.4 |
| 36 (0.13) | PFA | PFA | 260 | 0.5 x 0.8 | 3.6 |
| 30 (0.25) | PFA | PFA | 260 | 0.6 x 1.0 | 4.0 |
| 24 (0.51) | PFA | PFA | 260 | 1.4 x 2.4 | 10.0 |
| 24 (7/0.2) | PFA | PFA | 260 | 1.6 x 2.6 | 10.5 |
| 22 (7/0.25) | PFA | PFA | 260 | 1.7 x 3.4 | 13.4 |
| 20 (0.81) | PFA | PFA | 260 | 1.7 x 3.0 | 16.7 |
| 20 (7/0.32) | PFA | PFA | 260 | 1.9 x 3.2 | 17.1 |
T Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 40 (0.08) | PFA | PFA | 150 | 0.4 x 0.7 | 3.4 |
| 36 (0.13) | PFA | PFA | 150 | 0.5 x 0.8 | 3.6 |
| 30 (0.25) | PFA | PFA | 150 | 0.6 x 1.0 | 4.0 |
| 24 (0.51) | PFA | PFA | 260 | 1.4 x 2.4 | 10.0 |
| 24 (7/0.2) | PFA | PFA | 260 | 1.6 x 2.6 | 10.5 |
| 22 (7/0.25) | PFA | PFA | 260 | 1.7 x 3.4 | 13.4 |
| 20 (0.81) | PFA | PFA | 260 | 1.7 x 3.0 | 16.7 |
| 20 (7/0.32) | PFA | PFA | 260 | 1.9 x 3.2 | 17.1 |
N Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 30 (0.25) | PFA | PFA | 260 | 0.6 x 1.0 | 1.7 |
| 24 (0.51) | PFA | PFA | 260 | 1.4 x 2.4 | 6.7 |
| 20 (0.81) | PFA | PFA | 260 | 1.7 x 3.0 | 10.0 |
