400Hz Airport Cables 7-core With Concentric Copper Wire Shield
Applications
These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards
VDE 0295

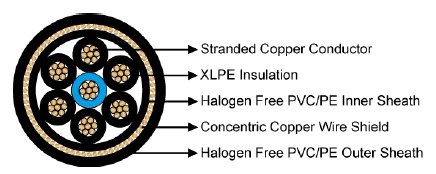

Construction
Conductor: Stranded bare copper
conductor, Class 2/Class 5 to VDE 0295/IEC 60228.
Insulation: XLPE.
Inner Sheath: Halogen free PVC/PE.
Shield: Concentric copper conductor (25/35mm²).
Outer Sheath: Halogen free PVC/PE.
Technical Data
Rated Voltage Uo/U (Um) |
600/1000V |
Operating Temperatures |
-40℃~+90℃ |
Minimum Bending Radius |
static: 9×OD; dynamic: 12×OD |
Halogen Free |
Yes |
No Corrosive & Toxic Gases |
Yes |
Dimensions and Weight
| Construction | Nominal Diameter of Single Core |
Nominal Shield Cross Section |
Nominal Overall Diameter |
Nominal Weight |
| No. ×mm² | mm | mm² | mm | kg/km |
| 7×25 (class 2) | 8.7 | 25 | 32.9 | 2300 |
| 7×35 (class 2) | 9.7 | 35 | 37.2 | 3100 |
| 7×35 (class 5) | 10.6 | 35 | 41.9 | 3300 |
