400Hz Airport Cables 7-core With Reinforcement
Applications
These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards
VDE 0295

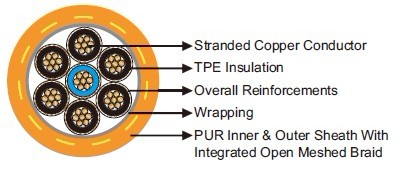

Construction
Conductor: Stranded bare copper conductor,
Class 5 to VDE 0295/IEC 60228.
Insulation: TPE.
Cable Assembling: 6 power cores laid-up over a centre core.
Wrapping: Common core covering of wrapping and/or extruded filling compound.
Outer Sheath: Bonded inner and outer sheath of polyurethane with integrated open meshed braid.
Technical Data
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | -35℃~+80℃ |
| Minimum Bending Radius | static: 4×OD; dynamic: 6×OD |
| Flame Retardant | Yes |
| Abrasion Resistant | Yes |
| Weather Resistant | Yes |
| UV Resistant | Yes |
| Oil Resistant | Yes |
Dimensions and Weight
| Construction | Nominal Diameter of Single Core |
Nominal Overall Diameter | Nominal Weight |
| No. ×mm² | mm | mm | kg/km |
| 7×35 | 10.9 | 38.0 | 3800 |
