Airport Lighting Cables RHV
Applications
These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.
Standards
UNE 21-161-93 (Spain)

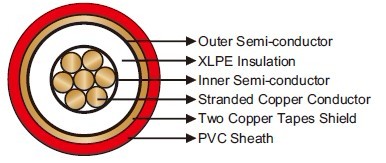

Construction
Conductor: Stranded bare copper conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Two copper tapes.
Outer Sheath: PVC.
Technical Data
Rated Voltage Uo/U (Um) |
6/10kV |
Maximum Conductor Temperature |
90℃ |
Short Circuit Temperature |
250℃ |
Operating Temperatures |
-20℃~+90℃ |
Minimum Bending Radius |
static: 10×OD; dynamic: 20×OD |
Impacted Resistant |
Yes |
Weather Resistant |
Yes |
Oil Resistant |
Yes |
Dimensions and Weight
Construction |
Nominal Insulation |
Nominal Sheath |
Nominal Overall |
Nominal Weight |
No. ×mm² |
mm |
mm |
mm |
kg/km |
1×6 |
3.5 |
2.8 |
18.0 |
410 |
